Description

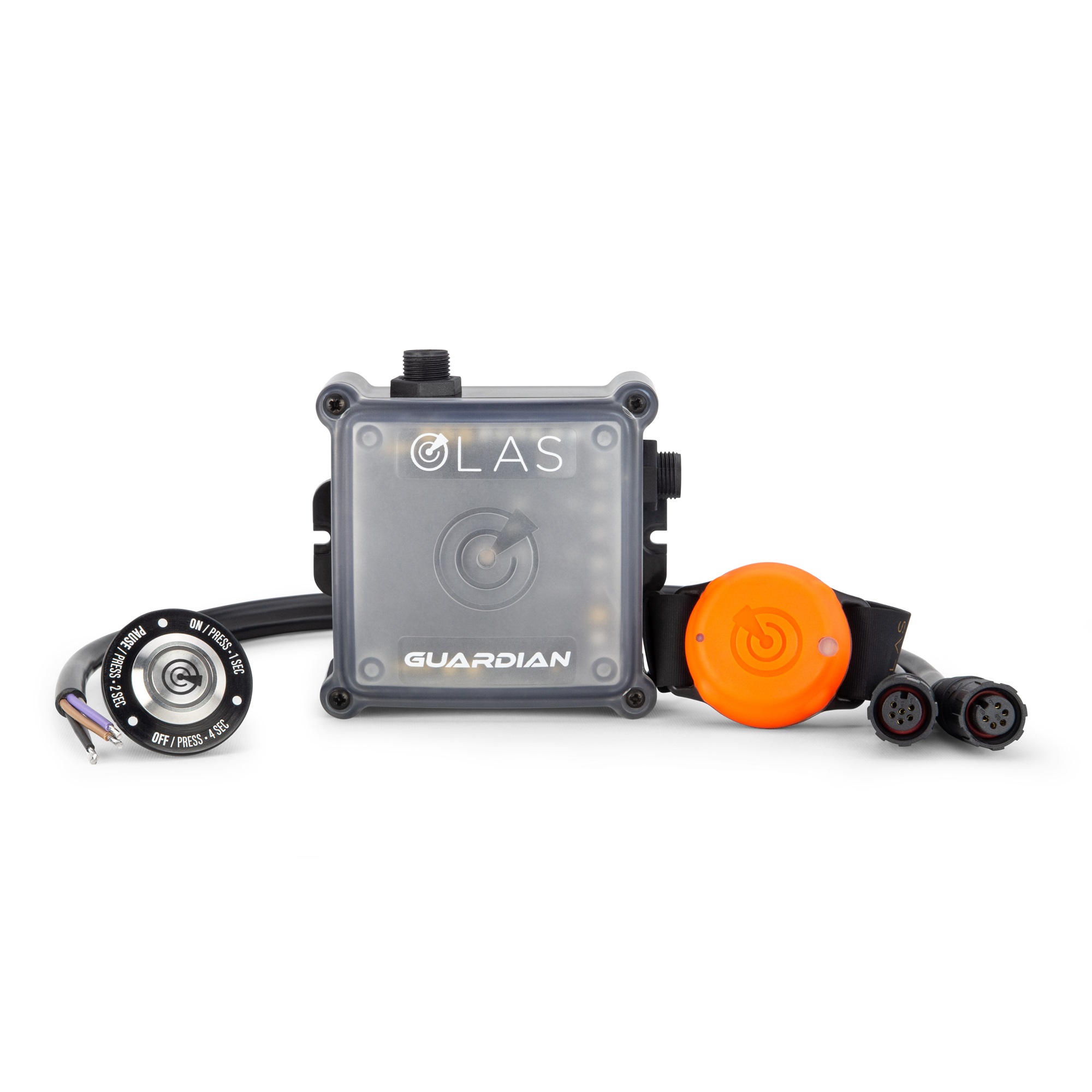

ACR Exposure OLAS Guardian OLAS receiver and Wireless Engine Kill Switch
Model: EXPOLASGUARDIAN
- OLAS Free Mobile App Integration
- Ultra-Bright Red LED Visual Alarm
- 85 db Audible Alarm
- Connect up to 15 OLAS Transmitters
- Waterproof (IP67)
- Utilizes the latest Bluetooth® Technology
- Expand system coverage from 50 ft. to 80 ft. using the OLAS EXTENDER
- 12/24V Wired
- Color Coded Control Switch
- Automatic engine restart
- Relay selection
- Automatic connection
- No connection alert and override
- Pause mode
- Run alongside existing Kill switch
The EXPOSURE OLAS Guardian is a small wireless engine kill switch that acts within two seconds of a person going overboard. It has the dual function of also acting as an instant Man Overboard (MOB) Alarm system. OLAS GUARDIAN offers powerboat, motorboat, and RIB drivers the security of knowing that their boat will stop in an instant, should the skipper or crew get separated from the boat, reducing the chances of a serious accident from a loose, unmanned, uncontrolled vessel. They are free to move around their boat without constantly having to remember to attach, detach and re-attach a physical wired kill cord. The GUARDIAN provides coverage for vessels up to 50 feet and is scalable via use of the OLAS EXTENDER as an available option to expand coverage of the system for vessels up to 80 feet.
The GUARDIAN functions as a wireless kill cord, which when connected to your engine’s kill switch will stop the engine within two seconds of becoming disconnected. Given that the OLAS GUARDIAN also wirelessly connects up to 15 crew members via wearable OLAS transmitters (OLAS Tags or OLAS Float-On Lights), it essentially creates a virtual kill cord attached to each transmitter. Within two seconds of an OLAS transmitter losing connection, either by going overboard or via separation by distance, the engine will cut out, and a loud alarm is triggered. The engine can be restarted after five seconds, and a rescue can be performed. The rescue process is then simplified by the GUARDIAN’s ability to connect with the OLAS mobile app which, in the case of a MOB incident, provides an easy to read directional screen showing the direction where the alarm was triggered and advises on the correct mayday call.
The EXPOSURE OLAS GUARDIAN is a wireless engine kill switch and MOB alarm system that provides users with a robust set of safety features. The system offers a comprehensive list of distinct advantages including:
OLAS Guardian is easily operated via the OLAS Mobile APP, which enables you to set how long it should take before the engine is shut off Running the OLAS app during Guardian operation lets it operate as an external alarm with vibrate to help alert the driver if it is in their pocket.
Specifications
| Size | 3.6" (H) x 3.5" (L) x 1.5" (W) |
| Weight | 3.97 Ounces (112.5 g) |
| Color | Black and Clear |
| Operation | Press button once to turn on, all tags within 2 meters are tracked |
| Maximum Number of Connected OLAS transmitter | Connects up to 15 OLAS Transmitters (OLAS Tags and/or OLAS Float-On) |
| Power / Current | 10-32V / 13-17mA |
| Visual Alarm | Red LED / 55 Lumens |
| Audible Alarm | 85 Decibels |
| Automatic Restart | After 5 Seconds |
| Automatic Connection | Automatically connects to any activated OLAS transmitter within a 2 meter range. |
| Relay Selection | Use the OLAS APP to select which crew members transmitters should trigger the engine cut off, or only trigger the Guardians built-in alarm. |
| Range | For use with vessels up to 50 feet. |
| Scalability | Upgrade your system with the OLAS Extender (extends range of your MOB system from a vessel size of 50 ft up to 80 ft). |
| Buoyant | No |
| Waterproof | Yes (IP67) |
| Housing Material | ABS |
| Fuse | 1-3 Amp fuse recommended (not supplied) |
| Bluetooth® | 4.2 + 5.0 |
| Applications | Recreational |
| Warranty | 1 Year |
| Approvals | FCC, RED, CE, RoHS 2.0 |
What’s in the Box:
- OLAS Guardian
- OLAS Tag
- Power Connection Cable
- Kill Switch Cord Connector
- Stainless Steel Control Switch
