Description

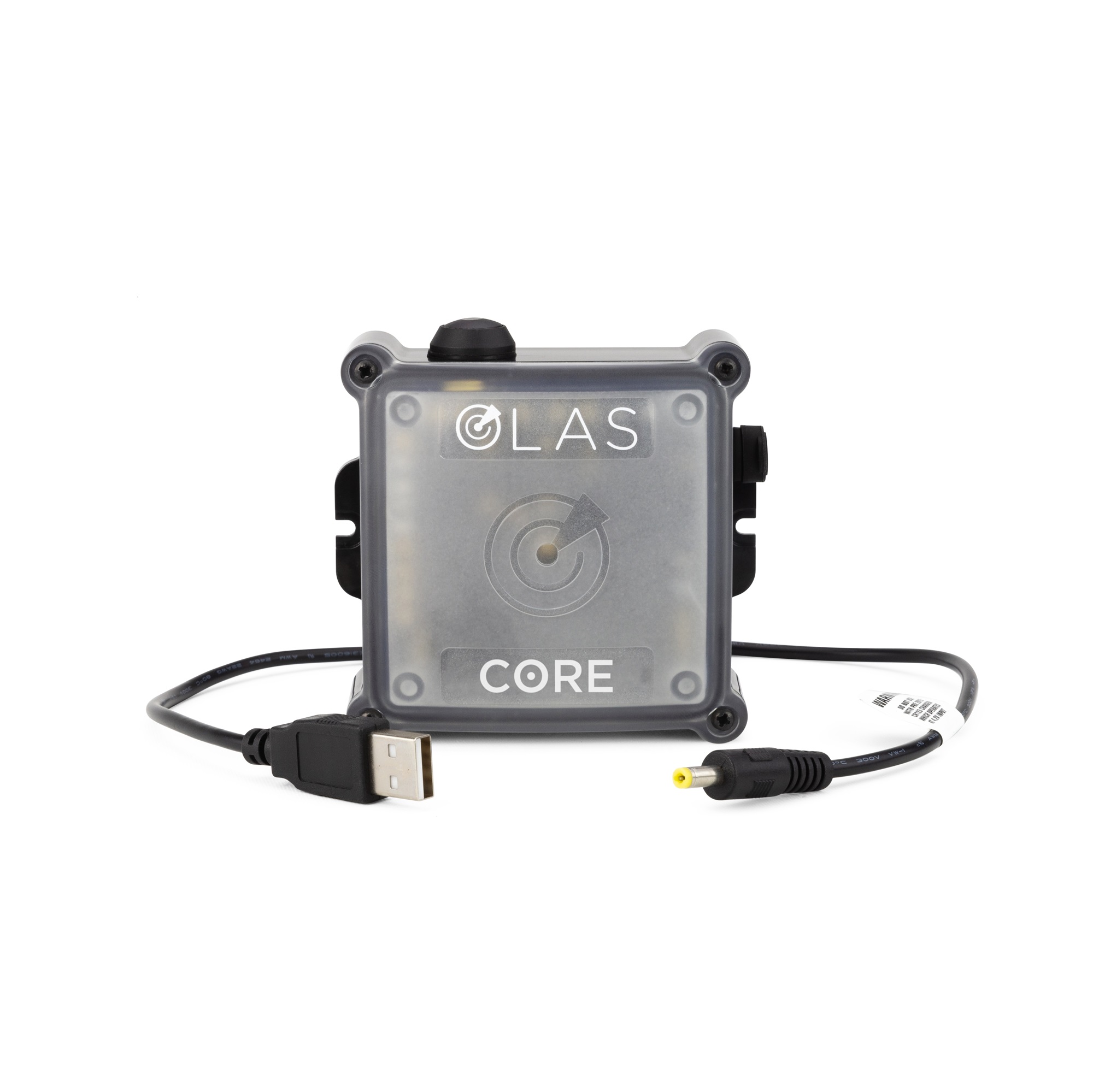

ACR OLAS Core Base Station for OLAS Transmitters

Model: EXPOLASCORE

• OLAS Free Mobile App Integration
• Ultra-Bright Red LED Visual Alarm
• 85 db Audible Alarm
• Connect up to 15 OLAS Transmitters
• Waterproof (IP67)
• Utilizes the latest Bluetooth® 5.0 Technology
• Portable / Low Power Consumption — 5V USB
• Expand system coverage from 50 ft. to 80 ft. using the OLAS EXTENDER

The OLAS CORE is a small, portable, wireless Man Overboard (MOB) Alarm system that triggers an instant emergency alert, within 4 seconds of a MOB incident. The CORE provides coverage for vessels up to 50 ft and the OLAS EXTENDER is an available option to expand coverage for vessels up to 80 ft. With the ability to connect to a total of 15 wearable OLAS Tag and/or OLAS Float-On transmitters, the CORE creates a virtual lifeline to your crew members and acts as your boat’s base station to monitor and alert the crew should one of the transmitters go missing. The CORE can also connect with the OLAS mobile app which, in the case of a MOB incident, provides easy to read directional screens with a bearing and track back to the point where the alarm was triggered. The app also provides essential MOB position and procedure prompt screens, supporting the crew during the stress of a recovery operation.

Losing a crew member overboard is every boater’s worst nightmare. The OLAS CORE gives boaters complete confidence that in the event of a MOB incident, the entire crew is alerted instantly and can take immediate recovery actions. Consisting of an easy to install base station that can be permanently mounted or used as a portable solution, the CORE communicates wirelessly with all connected OLAS transmitters at the same time. Syncing transmitters is simple with a single button push that not only syncs the transmitter(s) with the CORE, but also allows users to connect transmitters to the OLAS mobile app.

The CORE is your back-up for your back-up. Let’s face it, we all overuse our smart phones, and out on the water, they can overheat, run out of battery, and simply break. The CORE ensures your MOB situation is not solely reliant on your mobile device and thereby provides an additional level of security when paired with your OLAS MOB system. The CORE works using the latest wireless Bluetooth 5 technology and in the event of a MOB incident, it triggers a loud built-in alarm and emergency light, providing both audible and visual cues to alert crew of the situation.

Size 3.6" (H) x 3.5" (L) x 1.5" (W) 3.6" (H) x 3.5" (L) x 1.5" (W) Weight 0.40 Ounces Color Black and Clear Operation Press and Hold Button to Sync all Tags Maximum Number of Connected OLAS transmitter Connects up to 15 OLAS Transmitters (OLAS Tags and/or OLAS Float-On) Power / Current 5V / 13-17mA Visual Alarm Red LED / 55 Lumens Audible Alarm 85 Decibels Range For use with vessels up to 50 feet. Extend the coverage range on larger vessels with the OLAS EXTENDER for coverage on boats up to 80 feet. Scalability Upgrade your system with the OLAS Guardian (Base Station with Alarm and Engine Kill Switch) and the OLAS Extender (extends range of your MOB system from a vessel size of 50 ft up to 80 ft). Buoyant no Waterproof Yes (IP67) Fuse Not Applicable Bluetooth® 5.0 Applications Recreational and Commercial Boating Warranty 1 Year Approvals FCC, RED, CE

What’s in the Box:

• OLAS CORE
• USB Charging Cable
