Description

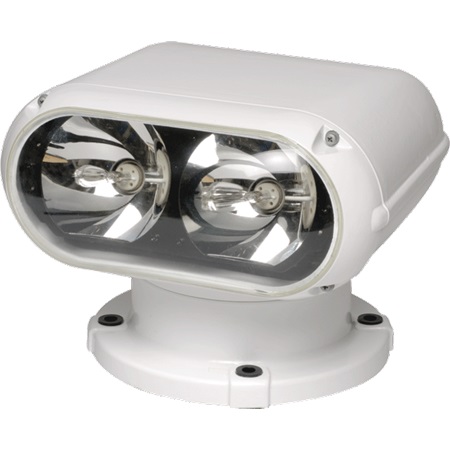

ACR RCL-300A 1 Million* CD Remote-Controlled HID Searchlight (12/24V)
Model: 1933
- Internal elevation mechanism provides pitch control of spotlight beam; protects elevation mechanism from weather
- Includes fingertip remote control Point PadTM; up to three remote Point PadTM units may be installed on system; surface/flush mount options included
- Rugged triple-primed and sealed, marine grade aluminum housing
- XRCiZTM feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
- Salt water-resistant construction with nylon and phenolic washers, aluminized stainless steel screws with insulating lubricant
- Wiring harness included
- * Twin 35W, Metal Halide HID lamps provide over 500k CD each and 1 million effective CD when combined.
Twin, 35-watt, Metal Halide HID lamps creates a narrow-beam searchlight that’s perfect for large sport yachts and mega-yachts, as well as large sport fish and commercial vessels. The RCL-300A Searchlight is made to improve safety at sea during night operation. It’s also simple to use with a commercial-grade joystick that has an IP 69K rating and illumination.
Specifications
| 12 x 13 x 9.3 in (31 x 33 x 23.5 cm) | |
| Material | Marine grade cast aluminum,tempered glass |
| Input Voltage | 12V-24VDC |
| Amp Draw | Startup 25A @12V, Running 8A @ 12V |
| Operation | Remote controlled Point PadTM |
| Beam Angle | 6 deg |
| Elevation Angle | 15 deg up, 30 deg down |
| Rotation | 360 deg continuous |
| Rotation Speed | Fast 30 deg per second, Slow 10 deg per second |
| Elevation Speed | 3 deg per second |
| Lamp | Twin 35W metal halide lamps 1,000 hours operating life |
| Footprint Diameter | 9 in (23cm) |
