Description
NMEA 0183 to NMEA2000 Gateway with PC Interface – USB Connection
Share engine information on the NMEA 2000 bus.

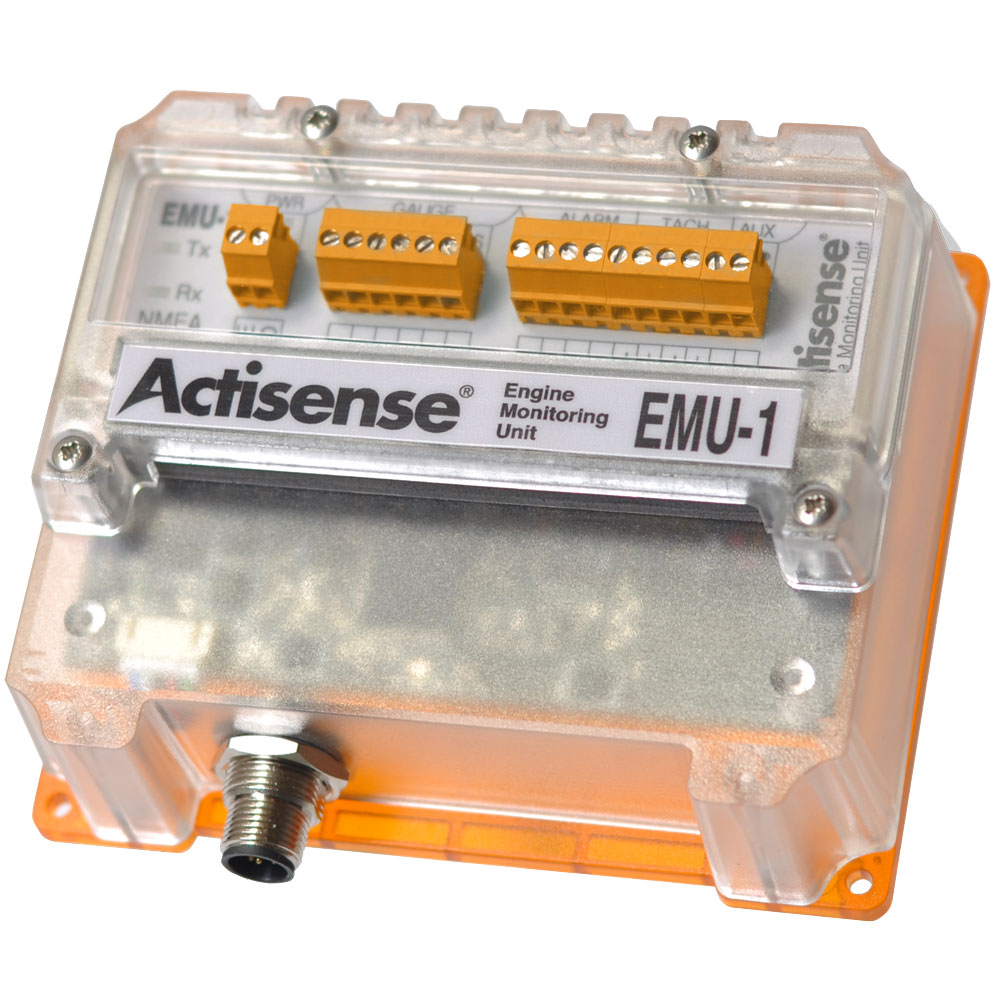

The Actisense EMU-1 is a specialized analogue to NMEA 2000 Gateway which converts data from analogue engine gauges/senders into NMEA 2000 data. The EMU-1 enables the sharing of engine data throughout the NMEA 2000 bus. It digitizes analogue engine sensors, enabling NMEA 2000 display devices to monitor the connected engine(s) on a vessel.
The EMU-1 can monitor vital engine parameters such as temperature, pressure RPM and fluid levels from up to two engines.
The EMU-1 has a PC-based configuration tool that allows the settings inside the EMU-1 to be changed to best suit the engine it is working with, making it a flexible solution for many engine makes and models.
An Actisense PC to NMEA 2000 Gateway (NGX-1/NGT-1) is required to configure the EMU-1.
The NGX-1 or NGT-1 must be used to update the firmware, connect the Toolkit and display data on a PC for diagnostic and information purposes, using NMEA Reader. Please visit the NGX-1 page and/or NGT-1 page for product details.
Features:
- Enables analogue signals to be converted to NMEA 2000 messages
- Convert signals from up to two engines (that share a common ground) with a single EMU-1
- 6 gauge / parameter inputs
- 4 alarm inputs
- 2 additional auxiliary inputs
- 2 Tacho inputs
- Customized IP65 case
- Diagnostic LED’s
- Wide power compatibility of 9 to 35VDC
- No need to change an existing engine
- Easy installation
- Easy to configure to suit the connected engine
- Connect signals from fluid level gauges (that share a common ground with the engine) to NMEA 2000®
- Optional DIN rail mounting kit available
- Total engine hours are logged by the monitoring of engine Tach (RPM) input
Technical Specifications:
Power Supply
- Supply Voltage – 9 to 35VDC
- Supply Current – Typically < 25mA @ 12VDC
- Supply Protection – Continuous reverse polarity protection and load dump protection (meets SAE J1113)
- Supply Connector – Pluggable 2-way screw terminal, 3.5mm pitch
- Supply Voltage (NMEA 2000 Port) – 9 to 29VDC
- Supply Current (NMEA 2000 Port) – < 20mA @ 12VDC from NMEA 2000 bus
- Load Equivalent Number (LEN) – 1
- Supply Protection (NMEA 2000 Port) – Continuous reverse polarity protection and overvoltage protection to 40V
NMEA 2000 Port – In/Out
- Compatibility – Fully NMEA 2000 certified
- Galvanic Isolation – 2500V input to ground, 1500V output to ground using ISO-Drive
- Speed / Baud Rate – 250kbps
- NMEA 2000 Connector – M12 male (A coded) connector
Gauge Inputs
- Voltage Range – 0 to 35VDC
- Input Impedance – > 50kΩ
- Sender Feed – 0, 4 or 18mA
- Accuracy – <= 2%
- Input Connector – Pluggable 6-way screw terminal, 3.5mm pitch
- Input Protection – Overvoltage protection to ±40V
Alarm Inputs
- Voltage Range – 0 to 37VDC
- Input Impedance – > 50kΩ
- Threshold Voltage – Configurable, default is 5V
- Alarm Polarity – Configurable, default is alarm on low input
- Accuracy – <= 2%
- Input Connector – Pluggable 4-way screw terminal, 3.5mm pitch
- Input Protection – Overvoltage protection to ±40V
Tacho Inputs
- Voltage Range – ±3 to ±60V
- Input Impedance – > 100kΩ to ground
- Input Pulse Range – 4 to 50,000Hz
- Accuracy – <= 1%
- Sender Compatibility – Ignition coil, alternator (“W”, “R” or “AC”) terminal, hall effect, VR or inductive sender
- Threshold – Automatically adjusts to signal level
- Input Connector – Pluggable 4-way screw terminal, 3.5mm pitch
- Input Protection – Can withstand an ignition pulse to ±500V
Engine Log
- Engine Hours – 2 separate engine hour logs internally connected to the tacho Inputs. Hours are logged when RPM is present, stored in non-volatile memory
Mechanical
- Housing Material – Polycarbonate
- Protective Lid Material – Polycarbonate
- Sealing Materials – Expanded silicone foam gasket, closed cell polyurethane splash guard and ePTFE waterproof vent
- Dimensions – 127mm (L) x 112mm (W) x 48mm (H)
- Weight – 250g
- Mounting – 4 x 3.5mm lugs to allow panel mount with self tapping s/s screws (included), optional DIN Rail mount available on request
Approvals and Certifications
- EMC – EN 60945 (sections 9 & 10)
- Environmental Protection – IP66 (PCB housing)
- Operating Temperature – -20°C to +55°C
- Storage Temperature – -30°C to +70°C
- Recommended Humidity – 0 – 93% RH
- Guarantee – 3 years
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Cable Length (Feet) = N/A | Connection Gender = NONE | Data Interface = NMEA 2000
