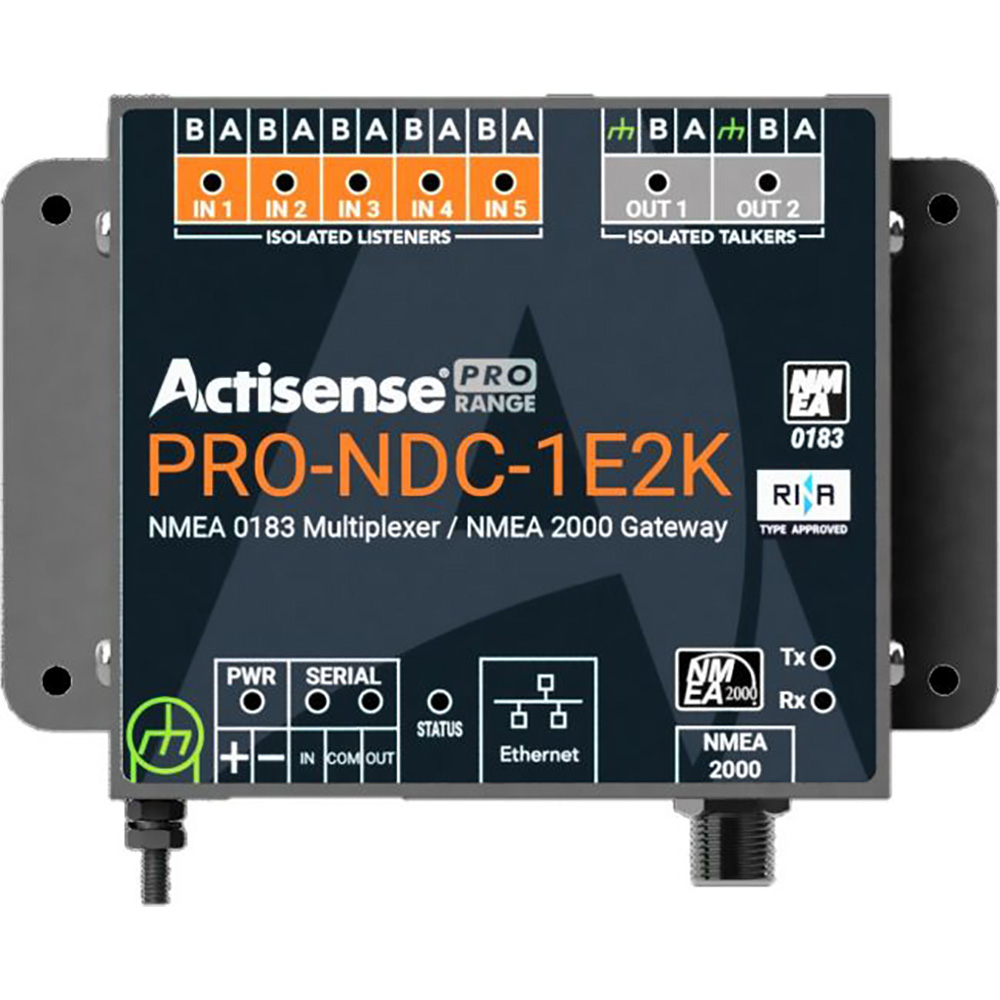

Pro NMEA 0183 Multiplexer/NMEA 2000 Gateway
Interconnectivity, reimagined!
The PRO-NDC-1E2K is much more than an NMEA 0183 Multiplexer…
Rugged, Robust, Type Approved Multiplexer with built-in NMEA 2000 connectivity, high-speed Ethernet streaming of data, flexible configuration, auto-switching and sentence level filtering.
Managing and routing your NMEA data is straight forward, hassle free using the PRO-NDC-1E2K
Features:
- Auto-switching between inputs to allow for a primary, secondary, tertiary priority input.
- Configurable baud rates to allow 38400 and 4800 baud devices to operate through the same multiplexer.
- Sentence filtering to block unwanted sentences from specific outputs helps to limit bandwidth consumption.
- Easy to configure using the web based UI, no need to manually enter and edit strings of text.
- RINA type approved device means the multiplexer is fit for leisure, commercial and class / type installations.
- Multiple LED’s allow for ‘quick glance’ diagnostics to ensure everything is operating correctly.
- Certified NMEA 2000 device connectivity allows for conversion and output of data onto NMEA 2000 network.
- Bi-directional conversion to and from N2K Network allows for seamless integration between legacy and new equipment.
- NMEA 0183 data streaming over Ethernet enables connectivity to existing Ethernet devices and systems.
- NMEA 2000 data streaming over Ethernet.
- 5 OPTO-Isolated NMEA 0183 inputs and 2 ISO-Drive NMEA 0183 outputs provide protection for all connected instruments.
- Type-approved (RINA).
- NMEA 0183 Ethernet streaming
- NMEA 2000 Ethernet streaming
- NMEA 2000 output via M12
- 5x Configurable Opto-isolated NMEA 0183 inputs.
- 2x Configurable ISO-Drive isolated NMEA 0183 outputs.
- 1x Bi-directional, configurable, isolated serial port.
- Automatic baud rate matching on inputs.
- Advanced data filtering / routing.
- Free firmware updates making the device future-proof.
- Diagnostic LEDs on all inputs and outputs.
- Bi-colour status LED.
- Panel mountable.
- Stainless Steel housing for added durability
- Quick and easy to install
- Configuration using standard web browser, no PC operating system compatibility issues
- Advanced features solve NMEA 0183 data routing problems
- Fully isolated with ISO-Drive technology for peace of mind
- Easy firmware updates make the device future-proof
- Type Approved (RINA)
Technical Specifications:
Power Supply
- Input supply voltage – 9 to 35 V DC
- Input supply current – 150mA max @ 12V DC (all outputs @ full drive into 100 ohm loads)
- Input protection – Continuous reverse polarity, transient overvoltage and ESD protection
- Power indicator – LED, Blue – indicates unit is functioning correctly
- Input Supply connector – Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG)
NMEA 0183 Port – Listener & Talker
- Number of Listener / Input Ports – 5 isolated NMEA 0183 Listeners
- Number of Talker / Output Ports – 2 isolated NMEA 0183 Talkers
- Compatibility – Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible
- Speed / baud rate – 4800 to 38400 bps
- Talker Output Voltage Drive – >= 2.2V (differential) into 100 ohm
- Talker Output Current Drive – 20 mA maximum per output
- Talker Output Protection – Short circuit and ESD
- Talker Data Indicator – LED, Orange (Flashes with data rate)
- Listener Input Voltage Tolerance – -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
- Listener Input Protection – Current limited, overdrive protection to 40 VDC and ESD protection
- Listener Data Indicator – LED, Green (Flashes with data rate)
- Connectors – Pluggable 2/3 way screw terminals, 5.08mm pitch (12 to 30 AWG)
Serial Port
- Compatibility – RS422 & RS232 compatible. RS485 Listener compatible
- Speed / baud rate – 115200 bps
- Output voltage drive – >= 2.1V (differential) into 100 ohm
- Output current drive – 20 mA max.
- Output protection – Short circuit and ESD
- Input voltage tolerance – -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
- Input protection – Current limited, overdrive protection to 40 VDC and ESD protection
- Data Indicators – LED’s: Green = Receive, Orange = Transmit
- Connectors – Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG)
Ethernet Port
- Host interface – 10/100BaseT, automatic polarity detection
- Supported protocols – TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms
- Connector – RJ45
- Indicators – Green – Link, Yellow – 100 Mbps
NMEA 2000 Port
- Compatibility – NMEA 2000 Certification Pending
- Speed / baud rate – 250 kbps
- Connectivity – M12 male (A-coded) connector
Isolation
- NMEA 0183 Listener – Uses IsoDriveTM, Hi-Pot tested to 1000V
- NMEA 0183 Talker – Uses IsoDriveTM, Hi-Pot tested to 1000V
- Serial Port – Uses IsoDriveTM, Hi-Pot tested to 1000V
- Ethernet Port – 2kv for 60s
- NMEA 2000 Port – OPTO-Isolated, Hi-Pot tested to 1000V
Mechanical
- Housing Material – 316 Stainless Steel
- Dimensions – 139mm (W) x 98mm (H) x 26mm (D)
- Weight – 360g
- Mounting – Bulkhead mount or DIN rail mount (DIN kit 1)
Approvals and Certifications
- EMC – IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7
- Compass Safe Distance – 300mm
- Type Approval Certificate – RINA
- Operating Temperature – -25 to +70°C
- Storage Temperature – -40 to +85°C
- Relative Humidity (RH) – 95% @ 55°C
- Environmental Protection – IP40
- Guarantee – 5 Years when registered
Cable Length (Feet) = N/A | Connection Gender = NONE | Data Interface = NMEA 0183
