Description

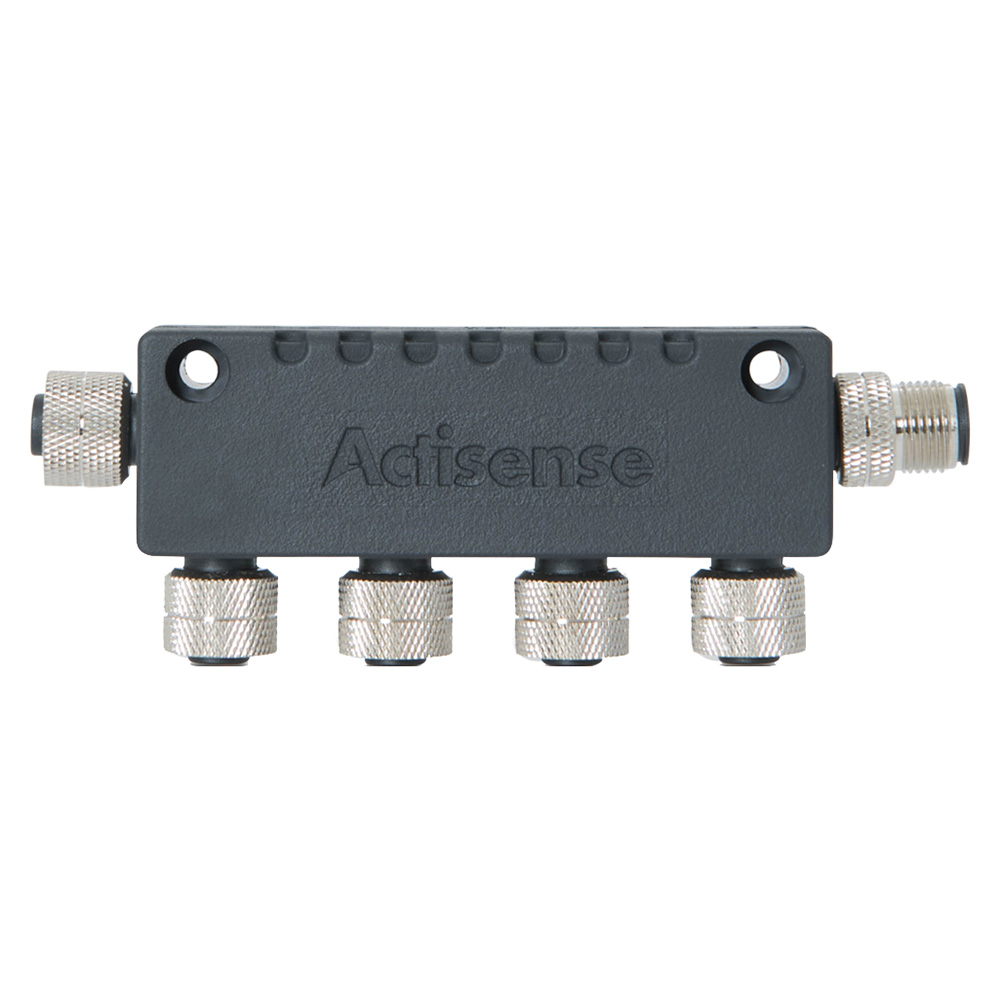

N2K Micro 4 Way T-Piece
The 4 Way T-Piece from Actisense saves you time, space and money on your NMEA 2000® installation.
The Actisense 4 Way T-Piece is for use where multiple drops or ‘ports’ are required from the NMEA 2000 backbone. It’s as quick and easy to install as a single T-Piece, uses less space than two individual T-pieces and costs less than four.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.
Features:
- NMEA 2000 Approved
- RoHS Compliant
Technical Specifications:
Electrical
- Rated Current – 4A
- Rated Voltage – 60V DC
Mechanical
- Male Contact – Brass, gold plated
- Female Contact – Phosphor bronze, gold plated
- Contact Carrier – PA66 (30% Glass filled), black
- Contact Polarization – Standard M12 -“A”- polarization
- Mating Thread – M12
- Screw Cap – Brass, nickel plated
- O-Ring Seal – Rubber, Black
- Housing – TPU, flame retardant to UL94V-0, Halogen Free
- Internal Housing Shield – Copper Foil
- Weight – 105g
Approvals and Certifications
- Protection – IP67 (when mated)
- Operating Temperature – -20°C to +70°C
- Storage Temperature – -40°C to +85°C
