Description

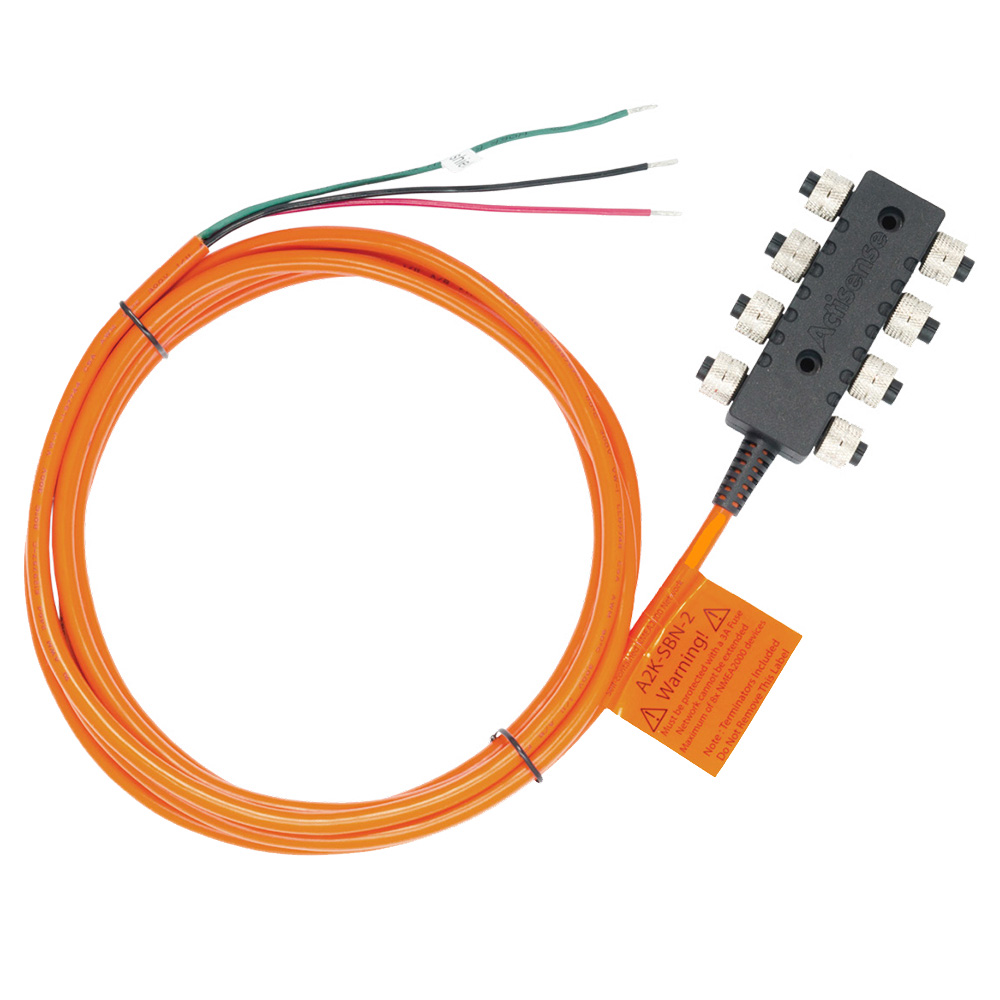

Self-Contained Boat Network – Complete Network f/8 Devices w/Internal Terminators & Power Feed
Installing small NMEA 2000® networks is quicker and easier than it’s ever been with the Self-contained Boat Network (SBN) from Actisense.
The equivalent of eight T-pieces in a single case provides a significant time and space saving with no more connecting multiple T-pieces together. Termination resistors are built in which increases the saving on time and space.
Once the attached 3 meter cable is connected to the boats power supply, an NMEA 2000 network for up to eight devices is ready to use, taking ‘plug & play’ to the next level.
Features:
- Self-contained NMEA 2000 Network
- Integrated Termination Resistors
- 8x NMEA 2000 drops
- Ruggedized, flame retardant over-molded housing
- Metal coupling nuts
- Integrated EMI Shield
- Orange, UL Rated, 3-meter power cable
- Color coded wires, stripped and tinned
- Low cost, quick to install, and provides an easy way to connect multiple NMEA 2000 devices
- Simple installation, fewer components, more reliable, lower cost
- Accommodates the vast majority of compact NMEA 2000 networks
- Suitable for wet and harsh conditions- highly desirable in marine environments
- Reliable, long lasting connections
- Less likely to be susceptible to interference
- UL rated cable provide peace of mind. Color easily differentiates the power cable form drop cables
- Quick installation, no special tools required
Technical Specifications:
Electrical
- Rated Current – 3A
- Rated Voltage – 60 V (AC/DC)
- Internal Termination Resistors – 2 x 120Ω 250mW
Mechanical
- Female Contact – Phosphor bronze, gold plated
- Contact Carrier – PA66 (30% Glass filled), black
- Contact Polarization – Standard M12 – “A” – polarization
- Mating Thread – M12
- Screw Cap – Brass, nickel plated
- O-Ring Seal – Rubber, black
- Housing – TPU (Halogen Free) over Epoxy filled PBT housing
- Flammability rating – UL94 V-0
- Internal Housing Shield – Copper foil
- Cable Jacket Material – 0.8mm Nom. PVC, orange
- Cable Outer Diameter – 6.8mm
- Cable Length – 3m
- Wire Length – 150mm (10mm stripped and tinned)
- Wire Jacket – PVC, Red & Black
- Wires – 16 AWG (stripped and tinned)
- Drain – 18 AWG (34 strand tinned copper)
- Cable Shield – Al-mylar
- Weight – 410g
Approvals and Certifications
- Protection – IP67 (when mated)
- Operating Temperature – -25°C to +70°C
- Storage Temperature – -40°C to +85°C
Data Interface = NMEA 2000 | Connection Gender = NONE | Cable Length (Feet) = 9.8'
