Description

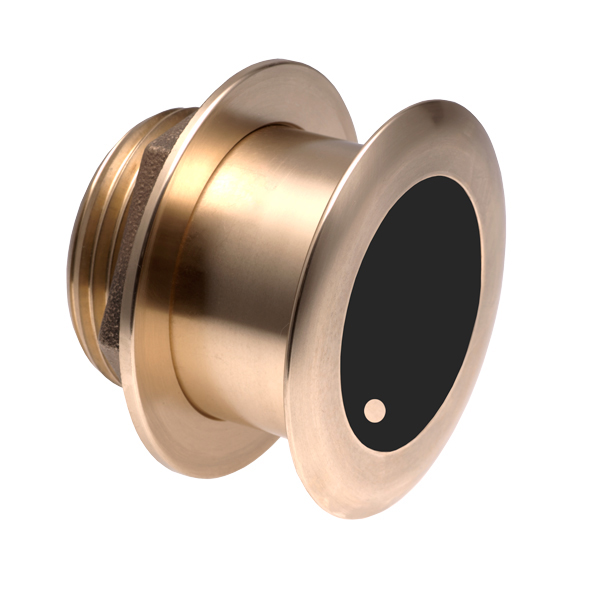

Airmar B175C-12-L Thru Hull

0 Deg Tilt Low CHIRP

Model: B175C-12-L-MM

• Depth & fast-response water-temperature sensor
• Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth
• Available in 0 deg or 12 deg tilted versions only
• 35 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth
• Bronze transducer housing
• Boat Size: Up to 8 m (25 feet)
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID(R) technology
• Depth & fast-response water-temperature sensor
• Hull Type: Wood, fiberglass and metal stepped, planing or displacement type hulls
• Hull Deadrise: Up to 24 deg Fixed 20 deg tilted version for
• Fixed 12 deg tilted version for 8 deg to 15 deg hull deadrise
• Engine Type: Can be used with all propulsion types

Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 20 kHz of total bandwidth in just one installation, saving customers time and money.

A Tilted ElementTM model in the Chirp Thru-Hull product line, the B175L Chirps across the following bandwidths:

L Model – Low Frequency 40-60 kHz

Specifications
