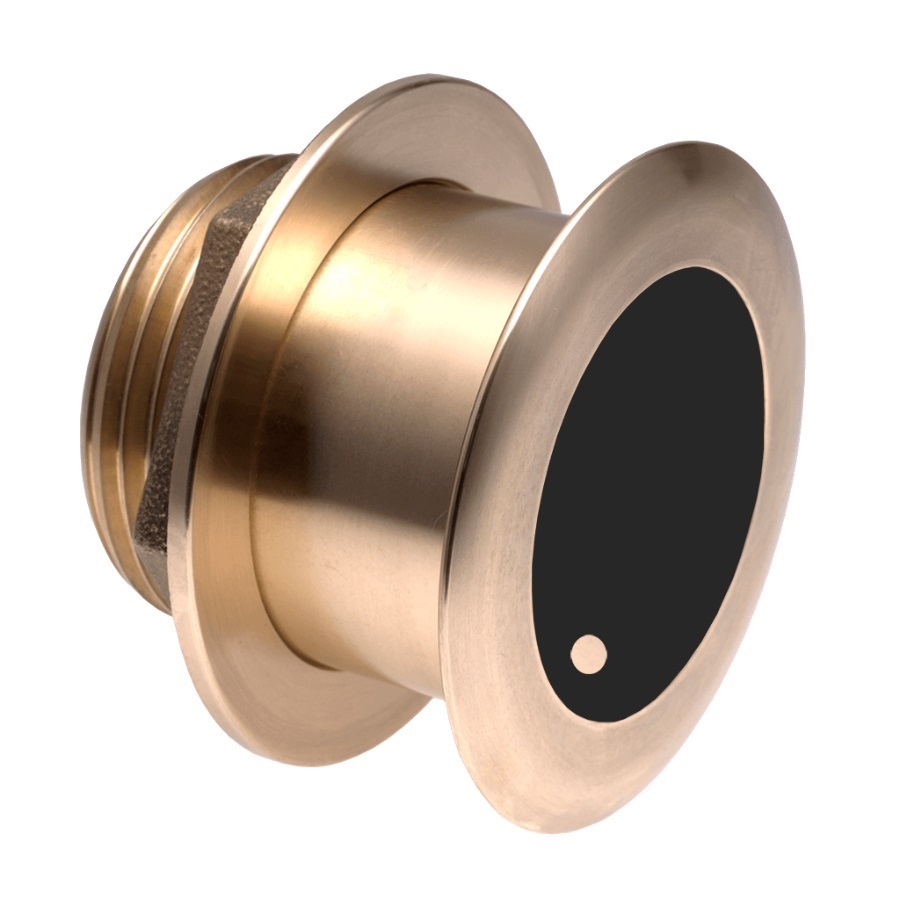

Airmar B175C-12-MW 12d Tilt Medium CHIRP Ultra Wide With Garmin 12-Pin MMC

AIRB175C12MW12G

$2017.00 $1540.17

2 in stock
Qty :

Description

Airmar B175MW Medium Ultra-Wide 12 deg Tilted Element™ Thru-Hull – Garmin 12-Pin Mix-n-Match Cable

Model: B175C-12-MW-12G

  • Fixed 12° tilted version for 8° to 15° hull deadrise
  • Depth and fast-response water-temperature sensor
  • 1 kW with depth tracking down to 400 m (1,300#39;)
  • Medium frequency: 60-100 kHz
  • 57° to 73° beamwidth (port/starboard)
  • 16° average fore/aft
  • 40 kHz of total bandwidth from one transducer
  • Medium frequency for superior mid-depth performance and excellent fish-target separation
  • Bronze housing for use on stepped, planing or displacement hull
  • Low-profile, thru-hull housing yields good resolution at speed when installed properly
  • Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

Specifications

Power Rating 1 kW
Housing Bronze
Functions Depth, Temperature
Hull Material Fiberglass or wood
Max Vessel LOA Up to 11 m (36′)
Hole Size 95 mm (3-3/4″)
Mounting Style Tilted Element Thru-Hull
Acoustic Window Urethane
Cable-Length 9 m (30′)
Max Depth 400 m (1300′)
Medium Frequency 60-100 kHz
Medium Frequency Beamwidth 57° to 73° (Port/Starboard) X 16° average (Fore/Aft)
Water Temperature -10° to 40°C (14° to 104°F)
Cable End Mix-N-Match

What’s in the Box:

  • B175C-12-MW-MM Medium Ultra-Wide Chirp, 1kW, 12° Tilt
  • MMC-12G Garmin 12-Pin Mix-n-Match Cable

Additional information

Weight 12.00 lbs
Model Number B175C-12-MW-12G
