​Airmar B45 Bronze Thru-Hull w/Depth & Temperature – 8-Pin f/Garmin​

93968
Airmar

$390.00 $294.71

0 in stock
Qty :
,

Description

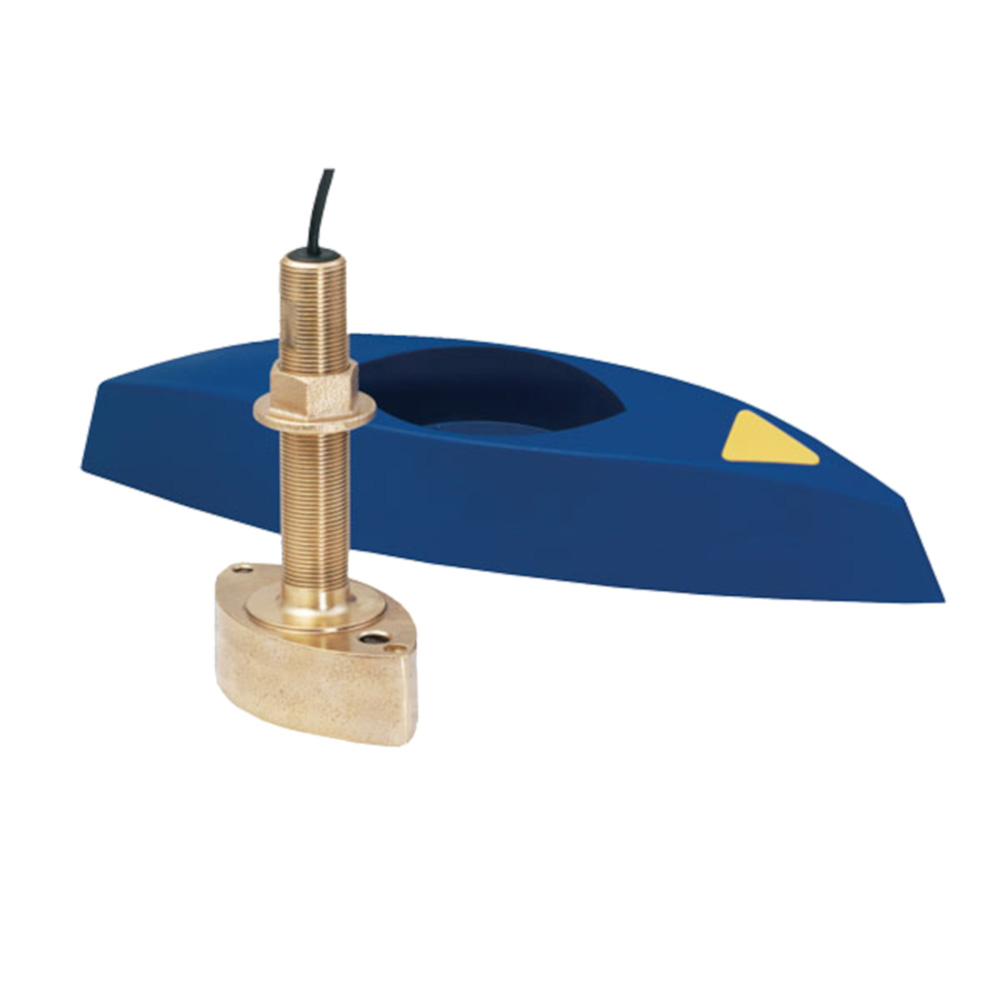

B45 Bronze Thru-Hull with Depth & Temperature – 8-Pin for Garmin

The B45 is Airmar’s smallest, bronze, thru-hull stem, offering quality design at an economical price. The classic housing is streamlined to deflect aerated water from the transducer’s face, providing solid echo returns.

Features:

  • Bronze housing
  • Depth and Temperature
  • Recommended for planning-hull powerboats and cruising sailboats up to 9 m (30’)
  • Good sensitivity in a compact housing
  • High-performance fairing included
  • Fast-response water-temperature sensor provides ±0.2°C (±0.1°F) accuracy

Specifications:

  • Fits: All Garmin 50/200 kHz units with 8-pin
  • Usable Shaft Length: 92 mm (3.62 in.)
  • Standard fairing block: 33-351-01
  • Frequency: 50/200 kHz
  • Beamwidth: 50 kHz—45°, 200 kHz—12°
  • RMS Power: 600 W
  • Maximum Depth Range (50 kHz): 235 m to 353 m (800 ft. to 1,200 ft.)
  • Maximum Depth Range (200 kHz): 118 m to 206 m (400 ft. to 700 ft.)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Cable Length (Feet) = NONE | Chirp = NONE | Imagining = NONE | Mounting Style = Thru-Hull | Pins = 8 | Speed Included = NONE | Temperature = Yes

Additional information

Weight 5.5 lbs
Dimensions 16 × 12 × 4 in
Model Number B45-DT-8G
