Description

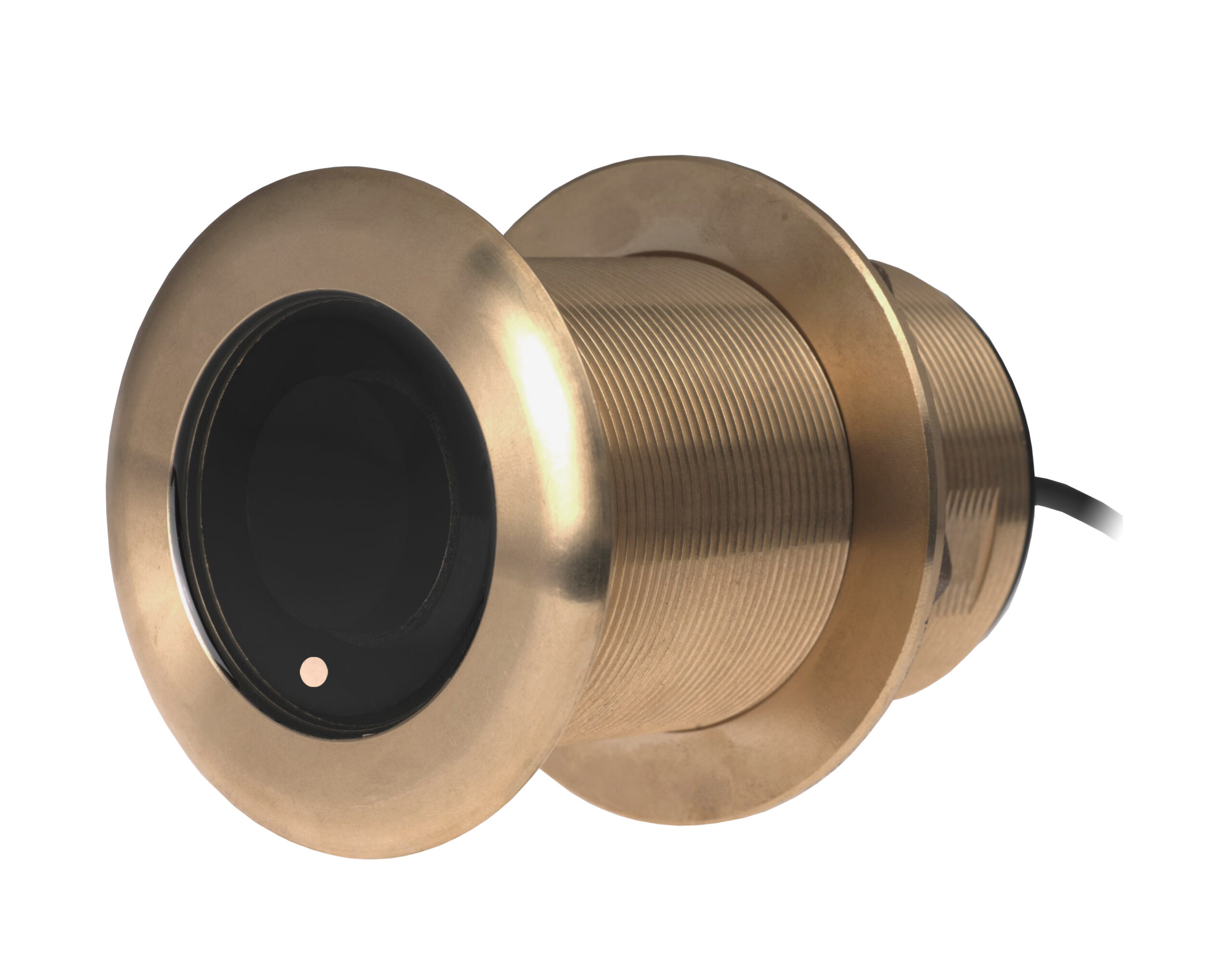

Airmar B75C 20° tlted element Medium CHIRP Bronze Thru Hull with Mix-N-Match Plug
Model: B75C-20-M-MM
- Depth & fast-response water-temperature sensor
- 50 kHz of total bandwidth from one transducer
Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.
Provides the ability to sound deeper than the high frequency, along with better resolution than the low frequency
Wider beam than the high frequency, achieving more coverage under the boat and greater opportunity to find fish
Clear images at higher boat speeds
Specifications
| CHIRP Frequency | 80 kHz to 130 kHz |
| Beamwidth | 24° to 16° |
| Element tilt | 20° |
| Deadrise | 16° to 24° |
| Maximum depth | 900ft |
What’s in the Box:
- B75C-20-M-MM
