Description

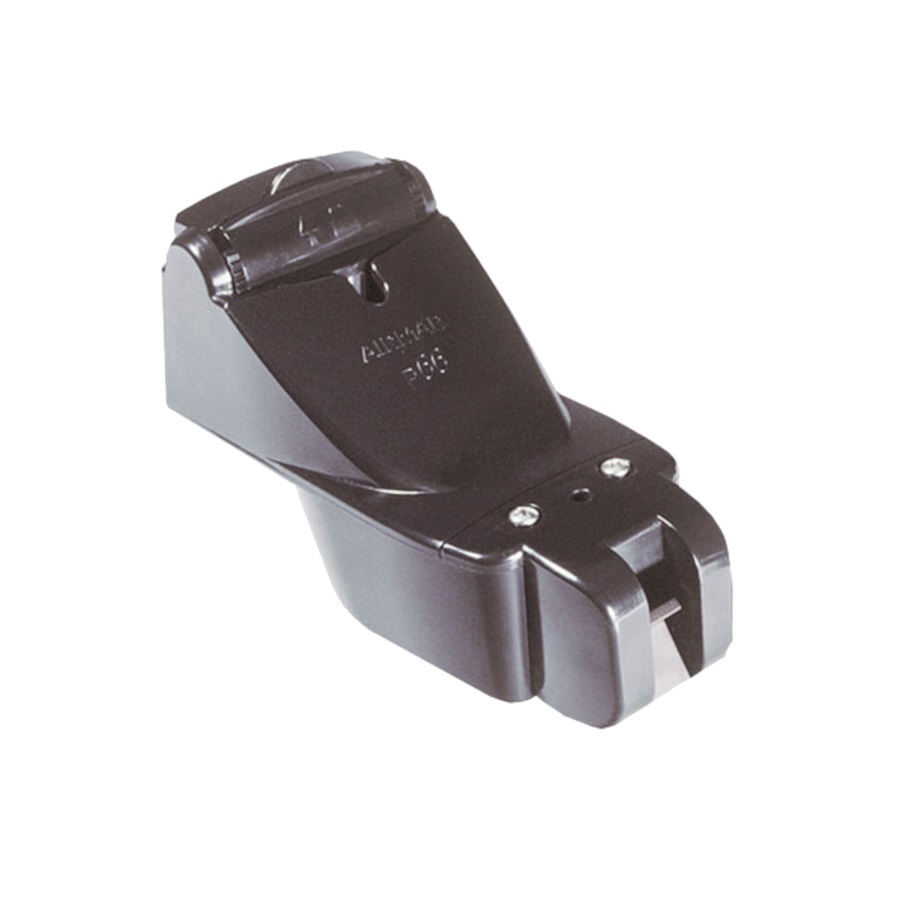

Furuno P66-10F 50/200kHz Depth Speed and Temperature Transom Mount Transducer with Furuno 10-Pin Connector
Model: P66-10F
- Depth, speed, and fast-response water-temperature sensing
- 600 W of power
- 50 kHz with a 45 deg beamwidth for depth performance to 353 m (1200 feet)
- 200 kHz with a 12 deg beamwidth for depth performance to 206 m (700 feet)
- Recessed water-flow channel protects paddlewheel from obstructions
- Plastic release bracket protects sensor from frontal impact
- Sensor can be removed from bracket without tools for easy service or storage
- Chemical and impact-resistant plastic housing
The P66S TRIDUCER(R) Multisensor combines depth, speed, and temperature functions in one housing. And it features our 50/200 kHz, dual-frequency, ceramic element. This hydrodynamic housing with its rounded nose reduces the turbulence under the transducer’s acoustic face for accurate high-speed readings and clear display images. It is Airmar’s best TRIDUCER transom mount for boats up to 8 m (25 feet) long.
Specifications
| Layered plastic urethane (LPU) | |
| Cable-Length | 10 m (33 feet) |
| Connector | Furuno 10-Pin |
| Conventional Beam | 45 deg/12 deg |
| Frequency Band | 50/200 kHz |
| Max Depth | Low frequency- 366 m (1200 feet), High frequency- 206 m (700 feet) |
| Mounting Style | Transom |
| Power Rating | 600 W |
| Functions | Depth, Speed, Temperature |
