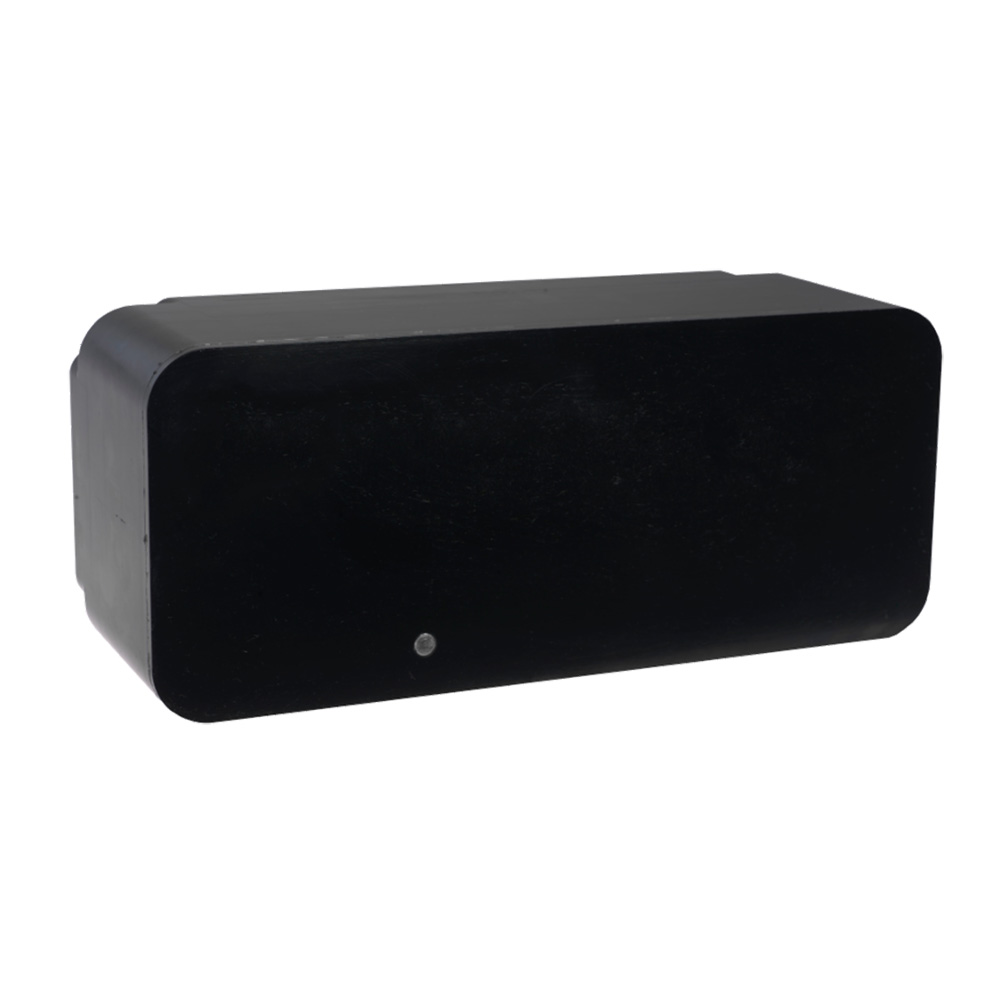

Airmar PM111LH Pocket Mount – Low-High Chirp 2kW – No Connector

99423
Airmar

$3420.49 $2732.51

0 in stock
Qty :
,

Description

PM111LH Pocket Mount – Low-High Chirp 2kW – No Connector

A popular choice for boat builders, pocket mount transducers is installed within a small custom pocket in your vessel’s hull or keel, flush to the surface. Though retrofit installation is possible, these transducers are most commonly used in vessels with a suitable pre-cut pocket.

Pocket-mounted transducers provide reliable and accurate sonar performance, with some impact on boat speed and fuel efficiency. As a common alternative, thru-hull transducers with a fairing block deliver comparable sonar performance and vessel impact.

Features:

  • Depth & fast-response water-temperature sensor
  • Fiberglass and metal stepped, planing, or displacement hull types

Advantages:

  • All the benefits of a thru-hull without the need for a high-performance fairing
  • Can accommodate any deadrise angle
  • Can be used with all propulsion types

Specifications:

Low (38 kHz to 75 kHz):

  • 19° to 10° port/star
  • 10° to 5° fore-aft beam
  • Maximum depth 6000 ft.

High (130 kHz to 210 kHz):

  • 8° to 4° beamwidth
  • Max. depth 1500 ft.

Bottom Coverage Relative to Frequency and Depth

  • Depth (50 ft.): 6 ft.
  • Depth (100 ft.): 14 ft.
  • Depth (300 ft.): 42 ft.
  • Depth (600 ft.): 84 ft.
  • Depth (1000 ft.): 140 ft.
  • Depth (1500 ft.): 210 ft.
  • Depth (2000 ft.): Too deep

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Cable Length (Feet) = NONE | Chirp = Low/High | Imagining = NONE | Mounting Style = NONE | Pins = NONE | Speed Included = NONE | Temperature = Yes

Additional information

Model Number PM111C-LH
