Airmar R109LHW Chirp Thru-Hull Transducer – No Connector

103061

$4087.50 $3265.35

0 in stock
Qty :

Description

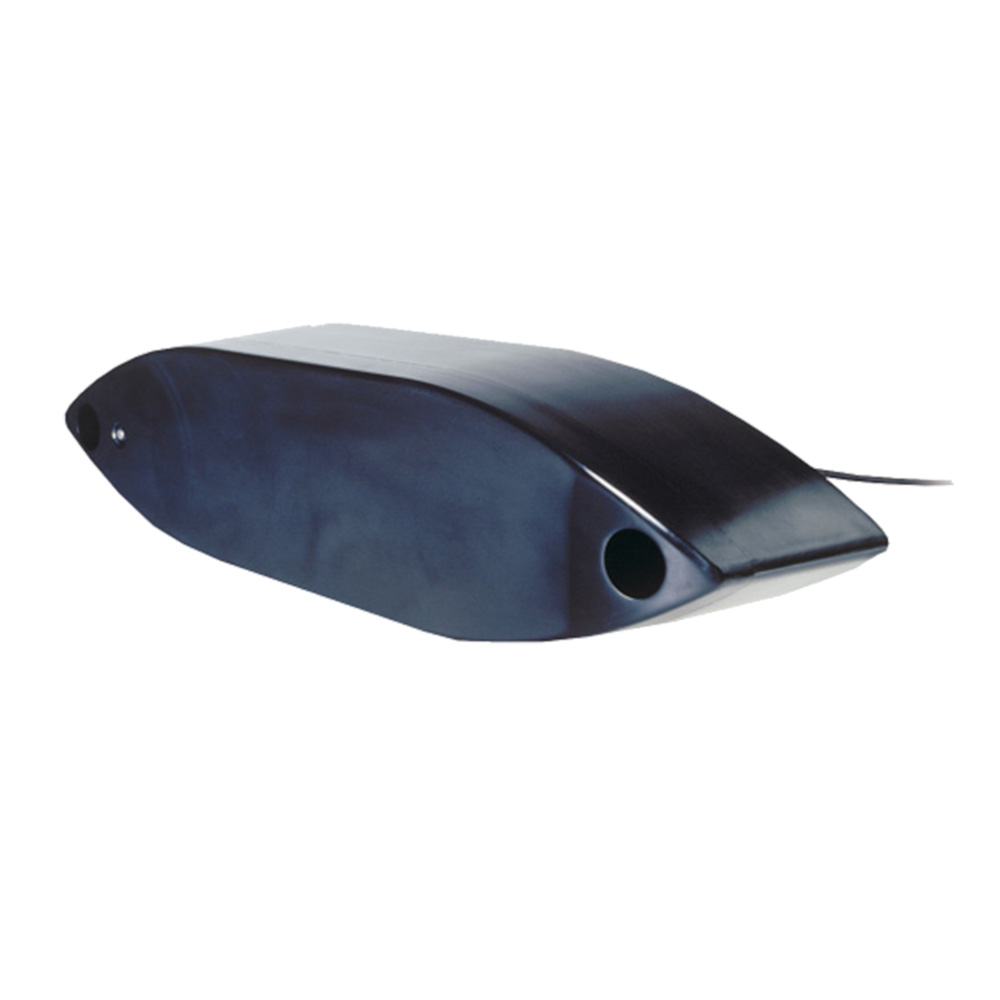

R109LHW Low High Wide Chirp Thru-Hull Transducer with Fairing Block – No Connector

Get more coverage under the boat with Airmar’s unique wide-beam, low- and high-frequency, Chirp-ready R109LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25-degree beam for all frequencies, which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.

The high-wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essentially down to 152 m (500′). The low-frequency band and 2 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s Chirp-ready transducer with wide-beam coverage.

Features:

  • Depth and fast-response water-temperature sensing
  • 2 kW of power for excellent deep-water performance from the low-frequency
  • 2 kW low frequency (38 to 75 kHz): 19 to 10-degree port-starboard beamwidth; 10 to 5-degree fore-aft beamwidth
  • Maximum depth of 1829 m (6000′)
  • 1kW high frequency (150 to 250 kHz): 25-degree constant beamwidth; Maximum depth of 152 m (500′)
  • 137 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50, 68, and 200 kHz plus everything else in the bandwidth
  • High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
  • High wide beamwidth yields more coverage for detecting fish in the upper-water column
  • Urethane housing with fairing for optimal performance
  • No Connector – Bare Wire
  • Comes with Fairing Block
  • Patented Xducer ID® technology

Specifications:

  • Acoustic Window: Epoxy/urethane
  • Common Use: Fishing, commercial fishing
  • Functions: Depth, temperature
  • High Frequency: 150-250 kHz
  • High-Wide Beamwidth: 25 degrees
  • Housing: Urethane
  • Hull Material: Compatible with all hull materials
  • Low-Frequency: 38-75 kHz
  • Low-Frequency Beamwidth: 19-10 degrees
  • Max Deadrise: Up to 22 degrees
  • Max Deadrise Angle: 22 degrees
  • Max Depth: Low frequency- 1829 m (6000′), High wide frequency- 152 m (500′)
  • Max Vessel LOA: 9 m (30′) and above
  • Mounting Style: Thru-hull
  • Power Rating: 2 kW
  • Retractable housing: No
  • Single or Dual Frequency: CHIRP-ready dual-band
  • Tilted Element: No
  • Weight: 15.1 kg (33.3 lb.)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Quick Guide Litreture

Brochure Litreture

Cable Length (Feet) = NONE | Chirp = Low/High | Imagining = NONE | Mounting Style = NONE | Pins = NONE | Speed Included = NONE | Temperature = Yes

Additional information

Model Number R109C-LHW
