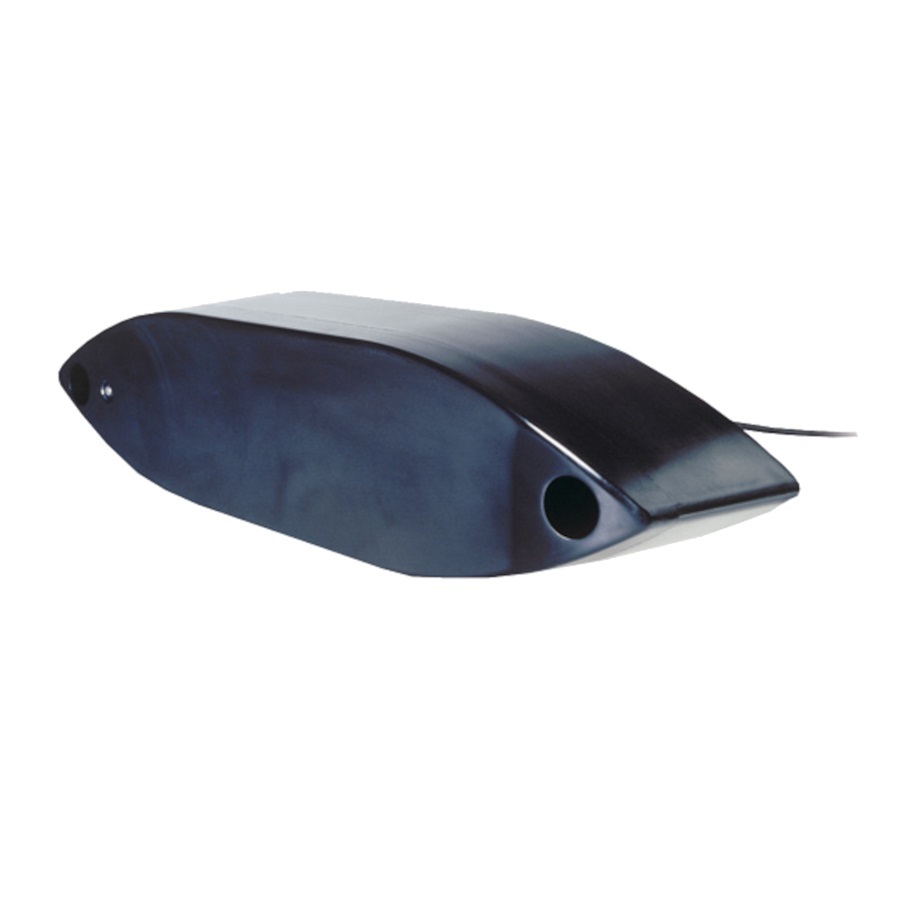

Airmar R509C-LHW Low/High-Wide Chirp 3KW Thru-Hull Mount Depth/Temp No Connector

AIRR509CLHW

$5475.00 $4198.58

1 in stock
Qty :

Description

Airmar R509 Low-High Wide Chirp, 3kW, w/FB, No Connector, DT

Model: R509C-LHW

  • Depth and fast-response water-temperature sensing
  • 2 to 3 kW of power for exceptional deep-water performance
  • Low frequency: 28 to 60 kHz, 23° to 9° port-starboard beamwidth, 11° to 5° fore-aft beamwidth, Maximum depth of 3048 m (10000′)
  • High frequency: 150 to 250 kHz, 25° constant beamwidth, Maximum depth of 152 m (500′)
  • 132 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 38, 50, and 200 kHz plus everything else in the bandwidths
  • High frequency provides superior shallow-water performance, bottom detail, and fish-target separation
  • High wide beamwidth yields more coverage for detecting fish in the upper-water column
  • Urethane housing with fairing for optimal performance

Get more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready R509LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500′). The low-frequency band is rated to 3 kW and delivers amazing deep-water performance to 3048 m (10000′). Get the best of both worlds with Airmar’s Chirp-ready transducer with wide-beam coverage.

Specifications

Acoustic Window Epoxy/urethane
Cable-Length 15 m (49′)
Connector Bare Wire
Deadrise Range Up to 25° with fairing
Frequency Low-High Wide
Low Frequency 28-60 kHz
Low Frequency Beamwidth 25°-16°
High Frequency 150-250 kHz
High Frequency Beamwidth 25°
Housing Material Urethane
Max Deadrise Up to 22°

Additional information

Weight 58.00 lbs
Model Number R509C-LHW
UPC 801769001945
