Description

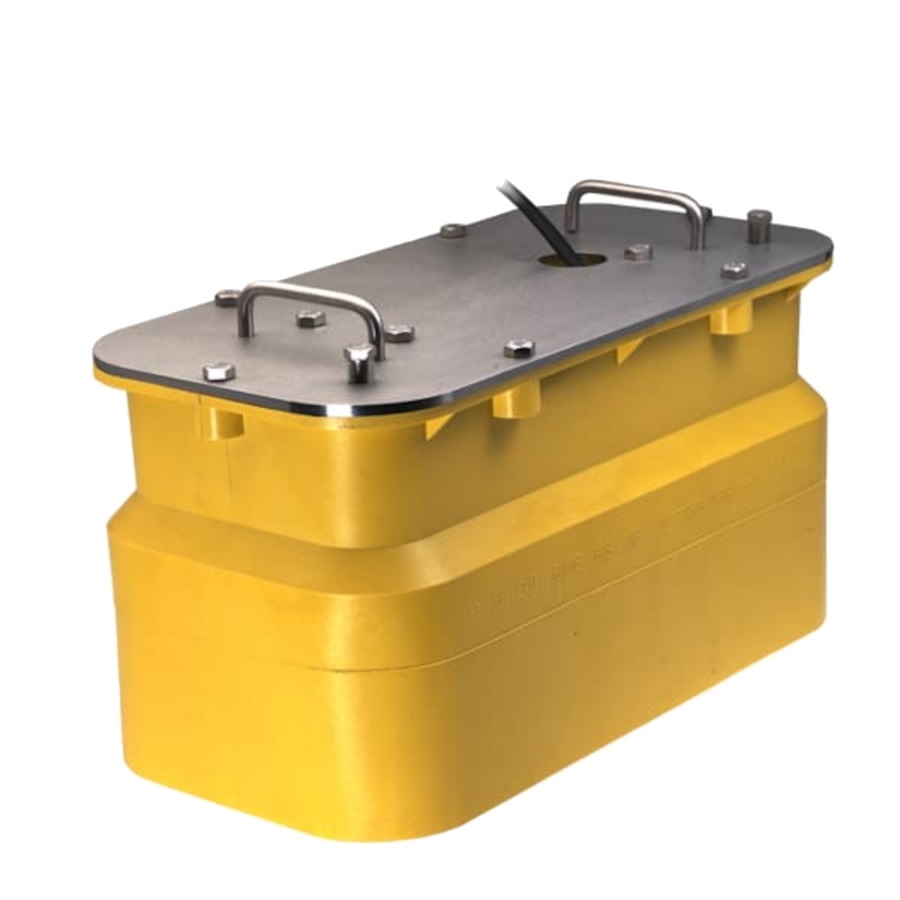

Airmar R599 Low-High Chirp, 3kW, No Connector, Depth
Model: R599C-LH
- Depth only
- 2 to 3 kW for superior deep-water performance
- Low frequency: 28 to 60 kHz
- 23° to 9° port-starboard beamwidth
- 11° to 5° fore-aft beamwidth
- Maximum depth of 3,048 m (10,000′)
- High frequency: 130 to 210 kHz
- 8° to 4° beamwidth
- Maximum depth of 457 m (1,500′)
- 112 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
- Urethane transducer housing with plastic mounting tank
- Exclusive Xducer ID® technology
The R599LH is the go-to transducer for today’s top captains who want the maximum depth capability combined with the excellent target resolution of the high-frequency band. This powerhouse shows extreme target detail, bottom discrimination, and bait and game-fish separation at all depths. The R599LH is packed with a twenty-four element, low-frequency array that operates at anywhere between 28 and 60 kHz. The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow, 8° to 4°, beam, delivering amazing target resolution and bottom detail.
The transducer is installed in the included tank which is cut to the boat’s deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The R599LH is a popular choice for customers not wanting to drill a hole in their hull and for trailered or multi-hull boats.
Specifications
| Cable-Length | 15 m (49′) |
| Connector | Bare Wire |
| Cross Reference | A80212 |
| Deadrise Range | 0° to 22° |
| Display Connector | 0 |
| Frequency Band | Low-High |
| Housing Material | Urethane |
| Hull Material | Solid fiberglass only |
| Low Frequency | 28-60 kHz |
| Low Frequency Beamwidth | 23°-9° |
| Max Deadrise | Up to 22° (short side), up to 12° (long side) |
| Max Deadrise Angle | 22° |
| Max Depth | Low frequency- 3048 m (10000′), High frequency- 457 m (1500′) |
| Max Vessel LOA | 12 m (40′) and above |
| High Frequency | 130-210 kHz |
| High Frequency Beamwidth | 8°-4° |
| Mounting Style | In-Hull |
| Power Rating | 2-3 kW |
| Single or Dual Frequency | CHIRP-Ready Dual-Band |
| Tilted Element | No |
What’s in the Box:
- R599 Transducer with 15m cable
- Tank
- Gasket
- Plate
- Hardware
