Description

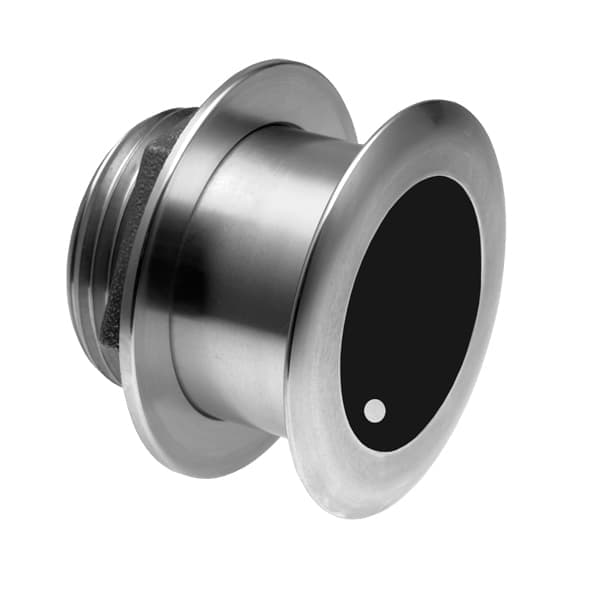

Airmar SS175C-12-M 12d Tilt
Medium CHIRP with Navico BL
Model: SS175C-12-M
- Depth and water-temperature sensor
- 1 kW
- Low Frequency: 40 kHz to 60 kHz with maximum depth performance to 762 m (2500′) 32° to 21° beamwidth
- Great deep water performance
- High performance, low-profile thru-hull housing provides good resolution at speed when installed properly
- Stainless steel housing for use on stepped, planing or displacement hulls in fiberglass, wood or metal
- Recommended boat size: Up to 11 m (36′)
- Also available in a bronze housing (B175L) model for use in fiberglass and wood hulls
- Exclusive Xducer ID® technology
Airmar’s low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low frequency band is the deep water performer delivering excellent coverage and tracking in deeper depths. The SS175L transducer delivers up to 20 kHz of total bandwidth in just one installation and delivers tremendous deep water performance.
Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.
Specifications
| Weight | 2.7 kg (6 lb) |
| Hull Deadrise | 8° to 15° hull deadrise |
| Acoustic Window | Urethane |
| Hole Size | 98 mm (3-7/8″) |
| Seven internal broadband ceramic assemblies | |
