Airmar SS175C-20-L 20d Tilt Low CHIRP with Humminbird 14-Pin

AIRSS175C20L14HB
Airmar

$1710.00 $1360.48

1 in stock
Qty :

Description

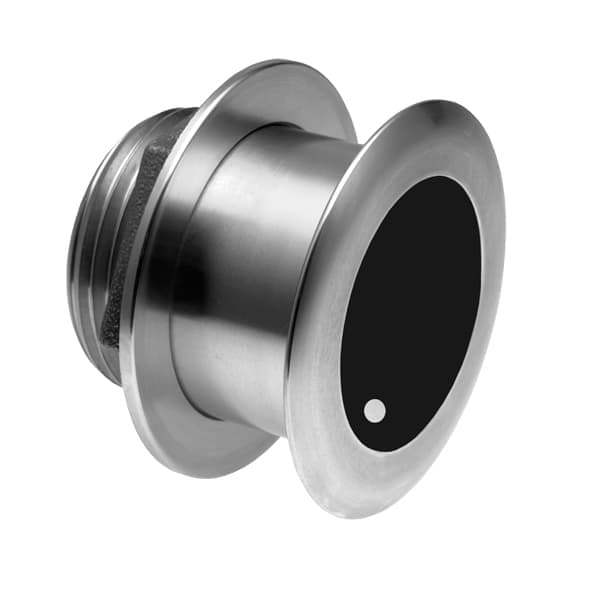

Airmar SS175C-20-L 20d Tilt

Low CHIRP with Humminbird 14-Pin

Model: SS175C-20-L

  • Depth and fast-response water-temperature sensor
  • 1 kW
  • Low Frequency: 40 kHz to 60 kHz with maximum depth performance to 762 m (2500′) = 32° to 21° beamwidth
  • Great deep water performance
  • Stainless steel housing for use on stepped, planing or displacement hulls in fiberglass, wood or metal
  • Recommended boat size: Up to 11 m (36′)
  • Also available in a bronze housing (B175L) model for use in fiberglass and wood hulls
  • Exclusive Xducer ID® technology

Airmar’s low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low frequency band is the deep water performer delivering excellent coverage and tracking in deeper depths. The SS175L transducer delivers up to 20 kHz of total bandwidth in just one installation and delivers tremendous deep water performance.

Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.

Specifications

Weight 2.7 kg (6 lb)
Hull Deadrise 16° to 24° hull deadrise
Acoustic Window Urethane
Hole Size 98 mm (3-7/8″)
Seven internal broadband ceramic assemblies

Additional information

Weight 11.00 lbs
Model Number SS175C-20-L-14HB
