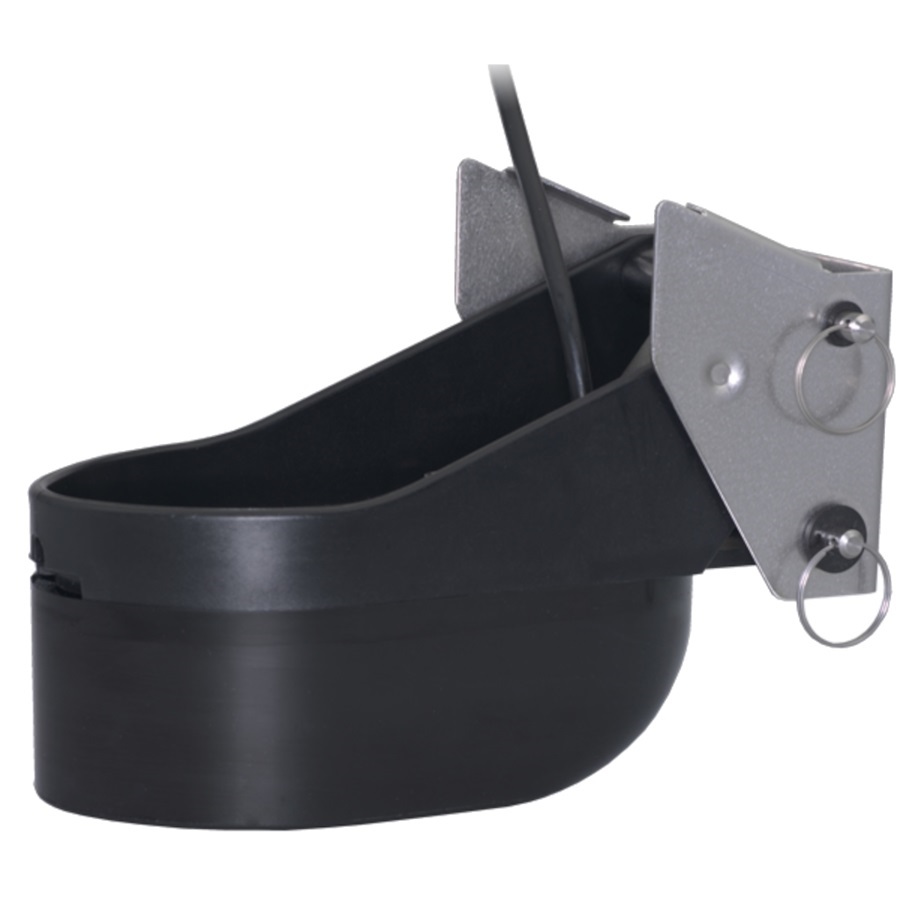

Airmar TM185C Transducer Medium CHIRP Ultra Wide With Mix-N-Match Plug

AIRTM185CMWMM

$1665.00 $1242.45

2 in stock
Qty :

Description

Airmar TM185MW Medium Ultra-Wide Chirp-ready Transom Mount – Requires MMC Cable

Model: TM185C-MW-MM

  • Depth and fast-response water-temperature sensor
  • 1 kW with depth tracking down to 400 m (1,300′)
  • Medium frequency: 60-100 kHz
  • 57° to 73° beamwidth (port/starboard)
  • 16° average fore/aft
  • 40 kHz of total bandwidth from one transducer
  • Medium frequency for superior mid-depth performance and excellent fish-target separation
  • Simple installation on transom of the boat
  • Great performance at boat speeds below 30 knots
  • Easy maintenance and low-cost replacement
  • Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready TM185 Medium Ultra-Wide (MW) Transom Mount transducer. The TM185MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column. Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz.

The TM185MW Transom Mount is a 1 kW transducer housed in one of AIRMAR’s most popular housings. Transom models are best suited for small and trailered vessels where a thruhull installation is not practical. Simple to install and ideal for small trailered vessels where a thru-hull may interfere with loading.

Specifications

Power Rating 1 kW
Transom Angle 2° to 22°
Functions Depth, Temperature
Acoustic Window Urethane
Cable-Length 9 m (30′)
Freq Med Wide 60-100 kHz
Housing Urethane/Stainless Bracket
Max Depth 400 m (1300′)
Medium-Wide Beamwidth 57° to 73° beam p/s 16° average f/a
Mounting Style Transom
Single or Dual Frequency CHIRP-Ready Single-Band
Weight 4.2 kg (9.2 lb.)

What’s in the Box:

  • TM185MW Medium Ultra-Wide Chirp-ready Transom Mount

Additional information

Weight 8.00 lbs
Model Number TM185C-MW-MM
