Description

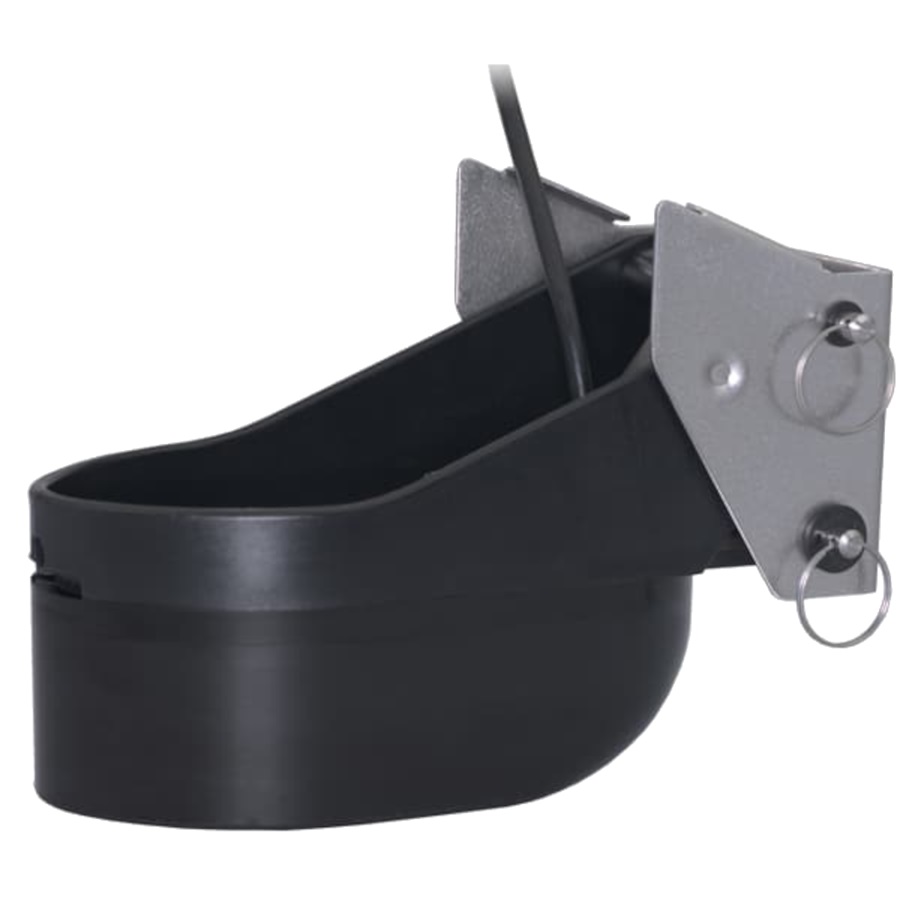

Airmar TM265C Low/Medium CHIRP Transom Mount Transducer with Mix-N-Match Plug

Model: TM265C-LM-MM

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep to mid-depth performance
• Low frequency: 42 to 65 kHz, 25° to 16° port-starboard beamwidt, Maximum depth of 914 m (3000′)
• Medium frequency: 85 to 135 kHz, 16° to 11° beamwidth, Maximum depth of 457 m (1500′)
• 73 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths
• Transom mount stainless steel bracket for installation on boats of all propulsion types
• SEALCAST™, seamless, urethane housing for long life in the water
• Patented Xducer ID® technology

Rely on Airmar’s new broadband transducers for the ultimate fishing mission! Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town. Traditional marine fish finders operate at discreet frequencies such as 50 kHz and 200 kHz, use relatively short-duration pulses, and use narrowband sonar transducers. In contrast, Chirp uses a precise sweep pattern of many frequencies within a long-duration transmit pulse from a broadband transducer, so the equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional marine fish finder.

Specifically designed for small boats (25′-40′), the TM265LH Chirps across the following bandwidths:

LH Model – Low Frequency 42-65 kHz/High Frequency 130-210 kHz

Specifications

What’s in the Box:

• TM265C-LM-MM
• Transom Mount Hardware
