Albin Group DC Driven Circulation Pump w/Brushless Motor – BL10CM 24V

97862
Albin GroupAlbin Pump Marine

$115.25 $66.36

0 in stock
Qty :
,

Description

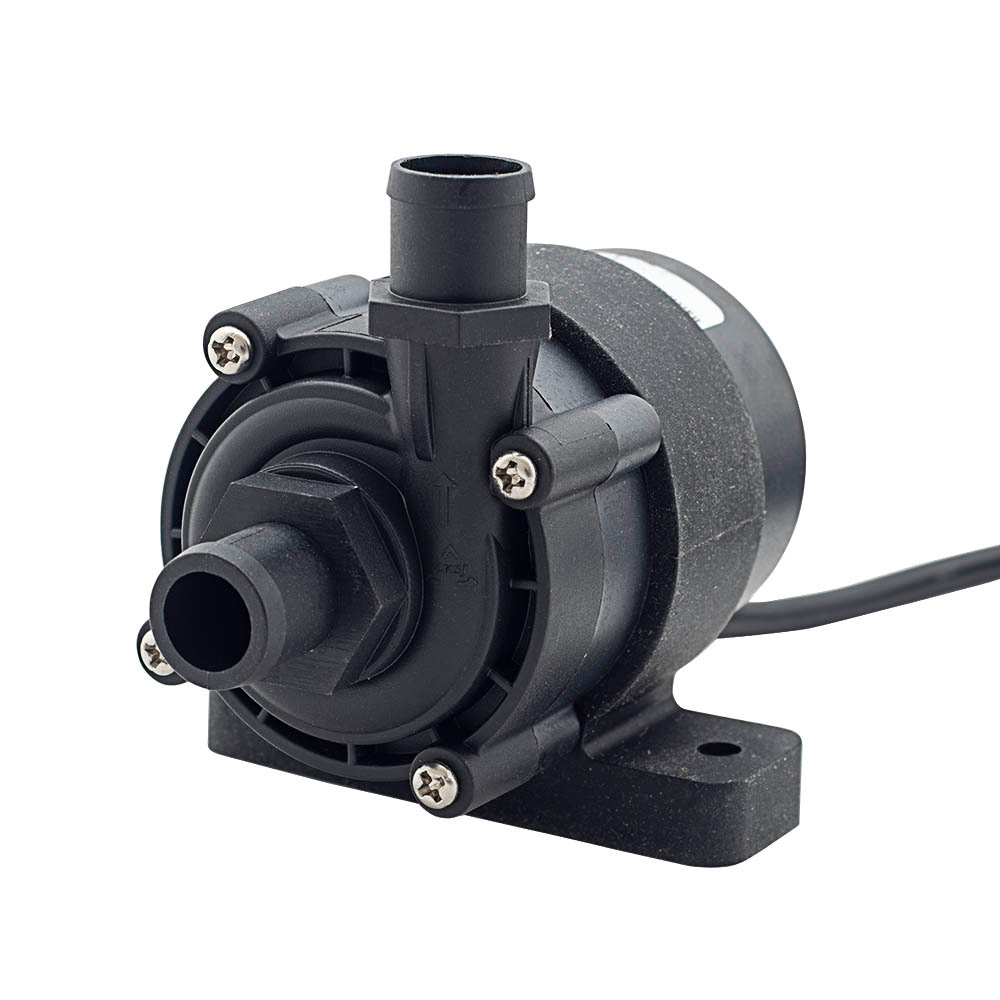

DC Driven Circulation Pump with Brushless Motor – BL10CM 24V

This circulation pump is for the circulation of water/antifreeze in heating or cooling systems on boats, buses, motor homes, and commercial vehicles. There are many advantages to this pump, such as its small size with high efficiency, maintenance-free, ceramic shaft, carbon fiber sleeve, completely waterproof (IP68), brushless DC control, and long service life.

Features:

  • Motor brush-less magnetic isolated design
  • For continuous duty
  • Life span: 20,000 hours
  • Materials of pump housing: ABS, PES/SPS7PA66
  • Motor IP classification: IP 68
  • Noise class: 35dB
  • The max liquid temperature for continuous Duty is 80°C & Intermittent is 100°C

Specifications:

  • Port size: (inch) 5/8″ / (mm) 14
  • Weight: 0.2 kg
  • Capacity at 0.1 bar: 21 l/min
  • Capacity at 0.25 bar: 18 l/min
  • Max load: 1.7 A
  • Max power consumption: 40 W

*Includes pump and motor

Type = Pumps/Drives

Additional information

Model Number 13-01-006
