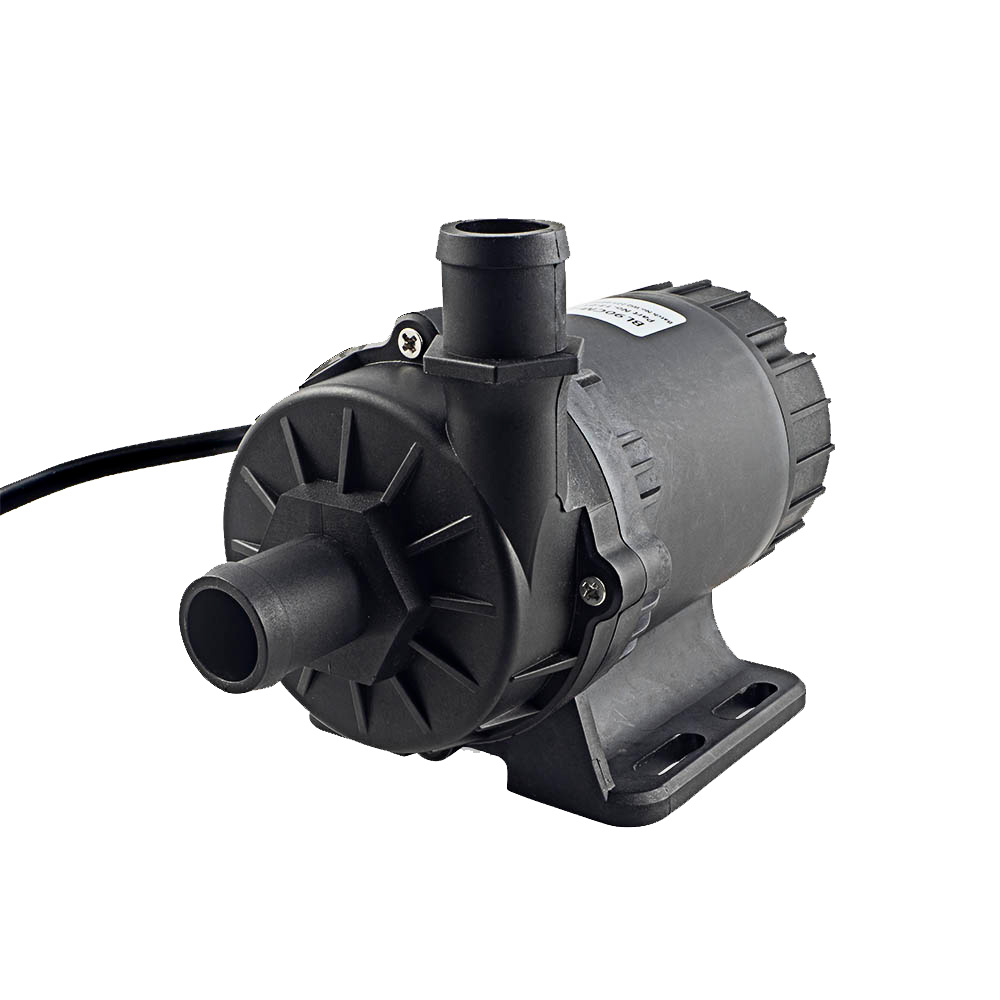

Albin Group DC Driven Circulation Pump w/Brushless Motor – BL90CM 24V

97860
Albin GroupAlbin Pump Marine

$310.50 $165.88

0 in stock
Qty :
,

Description

DC Driven Circulation Pump with Brushless Motor – BL90CM 24V

This circulation pump is for the circulation of water/antifreeze in heating or cooling systems on boats, buses, motor homes, and commercial vehicles. There are many advantages to this pump, such as its small size with high efficiency, maintenance-free, ceramic shaft, carbon fiber sleeve, completely waterproof (IP68), brushless DC control, and long service life.

Features:

  • Motor brush-less magnetic isolated design
  • For continuous duty
  • Life span: 20,000 hours
  • Materials of pump housing: ABS, PES/SPS7PA66
  • Motor IP classification: IP 68
  • Noise class: 35dB
  • The max liquid temperature for continuous Duty is 80°C & Intermittent is 100°C

Specifications:

  • Port size: (inch) 3/4″ / (mm) 20
  • Weight: 0.89 kg
  • Capacity at 0.1 bar: 61 l/min
  • Capacity at 0.25 bar: 57 l/min
  • Max load: 5 A
  • Max power consumption: 120 W

*Includes pump and motor

Type = Pumps/Drives

Additional information

Model Number 13-01-004
