Description

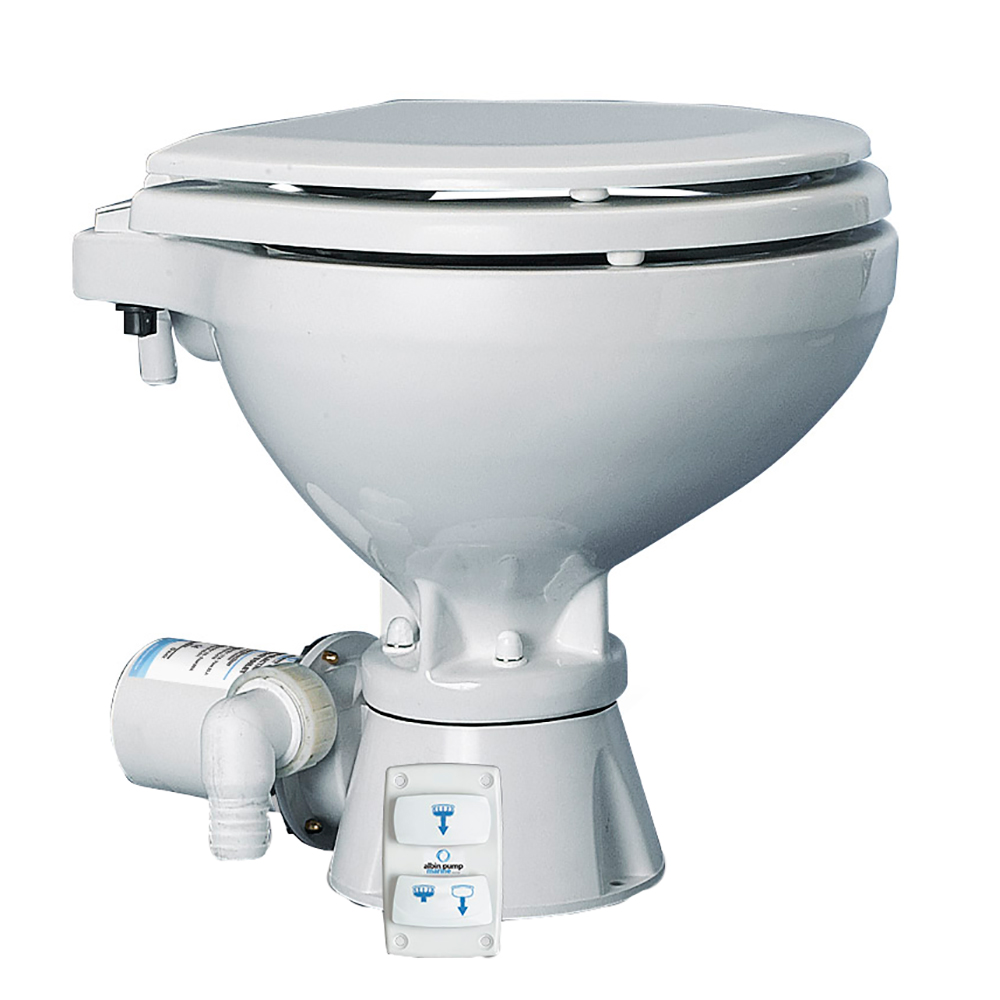

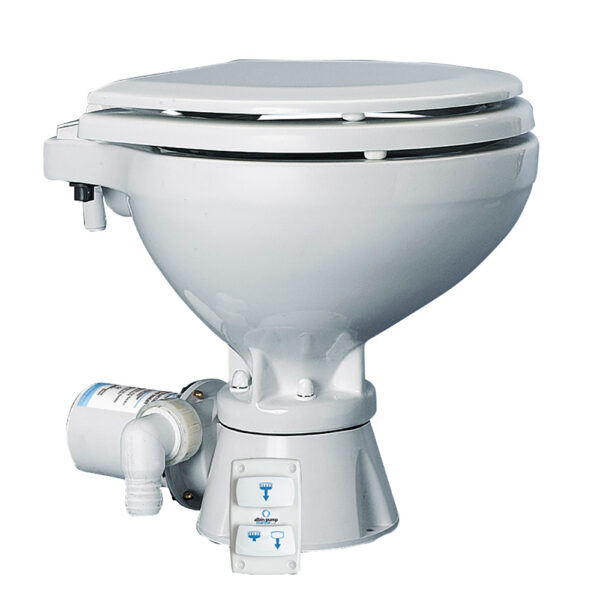

Marine Toilet Silent Electric Compact – 24V
Silent electric compact toilet with seperated flushing and waste disposal cycle. Including electronic 3 function control panel, before use, after use and short use plus a trimmer to regulate the flow rate.
Water is from existing pressurized water system onboard with 24V solenoid valve (PN 07-66-031) or 24V flush pump (PN 07-66-033)- not included! Silent operation and low water consumption. Easy to clean white ceramic bowl and white wooden seat.
Port conections inlet 19mm (3/4″), outlet 25mm or 38mm (1″ or 1,5″). Stable base for robust installation.
Plug & play/ interchangeable with Jabsco 37045-0094, Johnson Pump 80-47231-02 and other 24V dual cycle electrical toilet models.
Specifications:
- Weight: 8.7 kg/22 lbs
- Dimensions: 420/16.5L x 390/15.35H x 335/13.2W mm/in
- Type: Dual Operation Electric
*CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance
Color = White | Size = Compact Size | Gallons Per Hour = NONE | Gallons Per Minute = NONE | Inlet Size = 3/4" | Operation Method = Electric | Outlet Size = 1" or 1-1/2" | Rinse Water = Fresh | Suction Lift (ft.) = NONE | Volts = 24v | Type = Toilet
