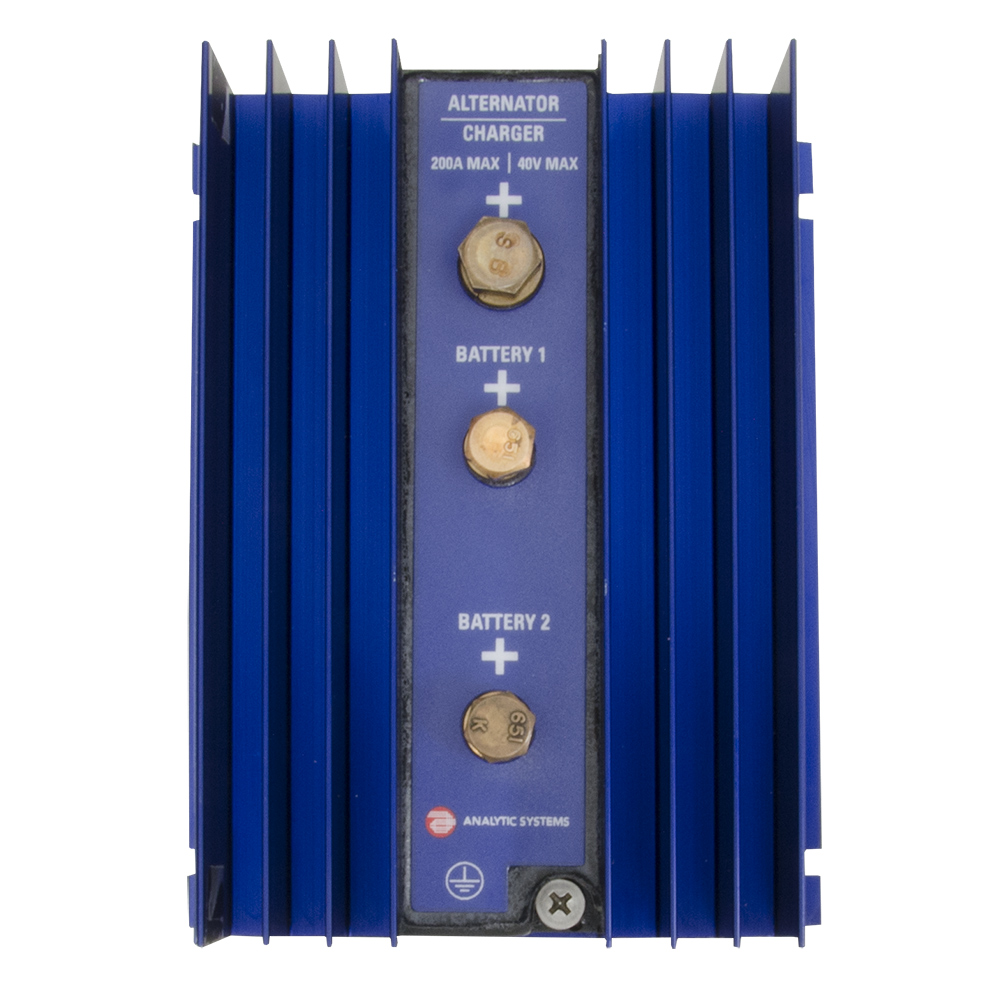

Analytic Systems Single Bank Battery Isolator, 200A, 40V

77032
Analytic Systems

$218.00 $192.28

0 in stock
Qty :

Description

Single Bank Battery Isolator, 200A, 40V

Analytic Systems introduces the IBI (Ideal Battery Isolator) for 1, 2 and 3 bank battery systems, allowing all the batteries to be fully charged from a single alternator while maintaining electrical
isolation between the battery banks or between a vehicle and trailer.

Ideal Diode technology uses MosFet Transistors and control circuitry to replace the diode used in a traditional battery isolator and reduces the voltage drop across the isolator to a mere 160 millivolts at 200 Amps of charging current and essentially zero volts at low current, so all the power of the alternator is applied to the batteries ensuring a full recharge every time.

While the Ideal Battery Isolator is designed to be used with an alternator, it can also be used to convert a single bank battery charger to a 2 or 3 bank charger or as a pure diode between a vehicle and trailer or other remote load.

Features:

  • Waterproof Expoxy Sealed Construction
  • Easy Connection
  • Alternator/Charger Post 5/16″, Battery Post 1/4″
  • Most Efficient use of Available Alternator Output
  • Maximize Battery Performance
  • Three year parts and labour warranty

Additional information

Weight 3 lbs
Dimensions 10 × 8 × 5 in
Model Number IBI1-40-200
