Description
- Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
- Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
- Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
- UL Listed and CSA Recognized
- Highest shrink ratio – shrinks to 1/3 original size.
- Shrinks at 257° F/125° C.
- Operating temperature range 40° C to 110° C.

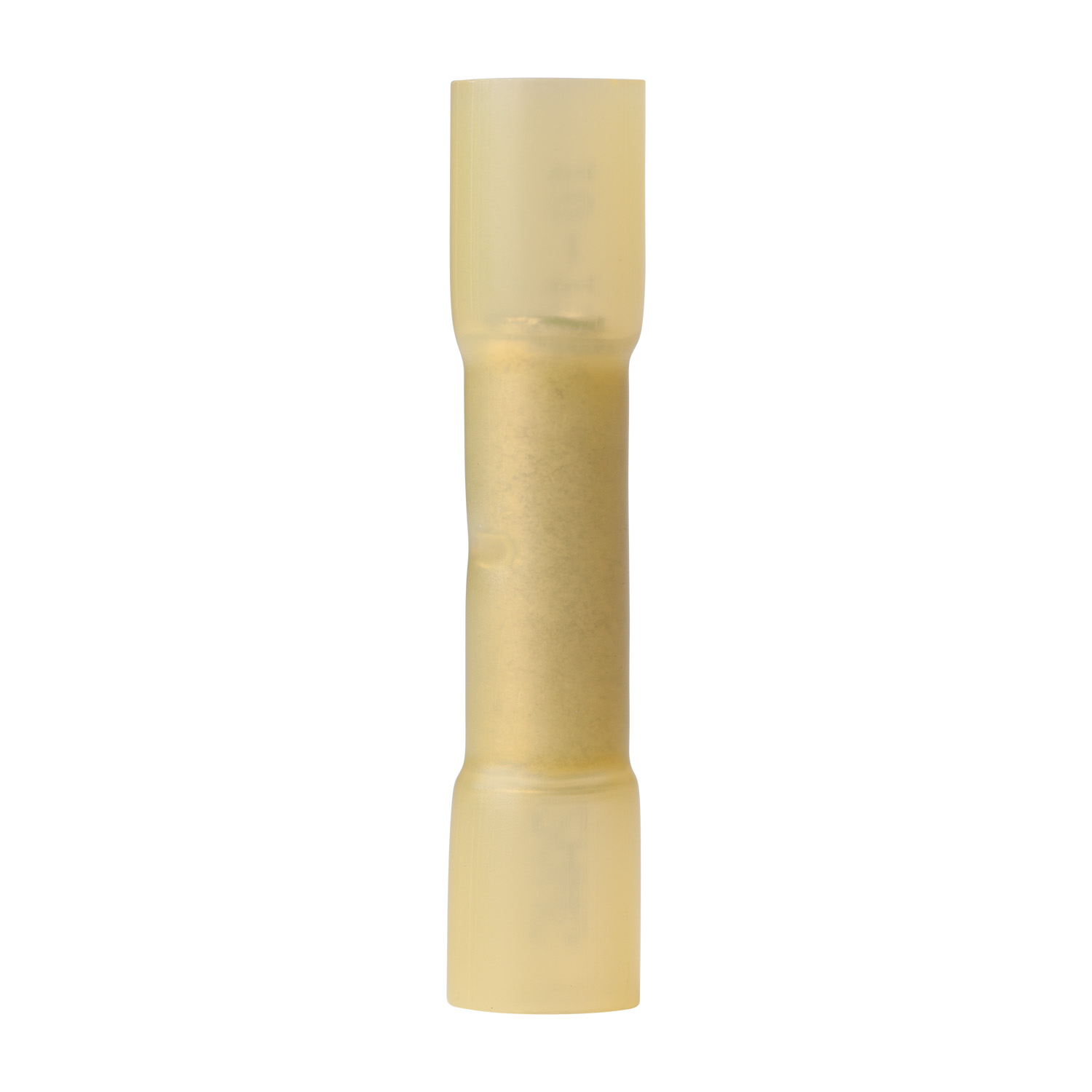

- ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Tinned for corrosion resistance.
- Pure copper for maximum current flow.
- Brazed seam for maximum strength.
| Wire Range | mm | Qty/Pkg | Part No |
|---|---|---|---|
| 12-10 | 3-5 | 500 | 309202 |
| 12-10 | 3-5 | 100 | 309299 |
| 16 – 14 | 1-2 | 100 | 309199 |
| 16 – 14 | 1-2 | 500 | 309102 |
| 22 – 18 | 0.3-0.8 | 500 | 309002 |
| 22 – 18 | 0.3-0.8 | 100 | 309099 |
