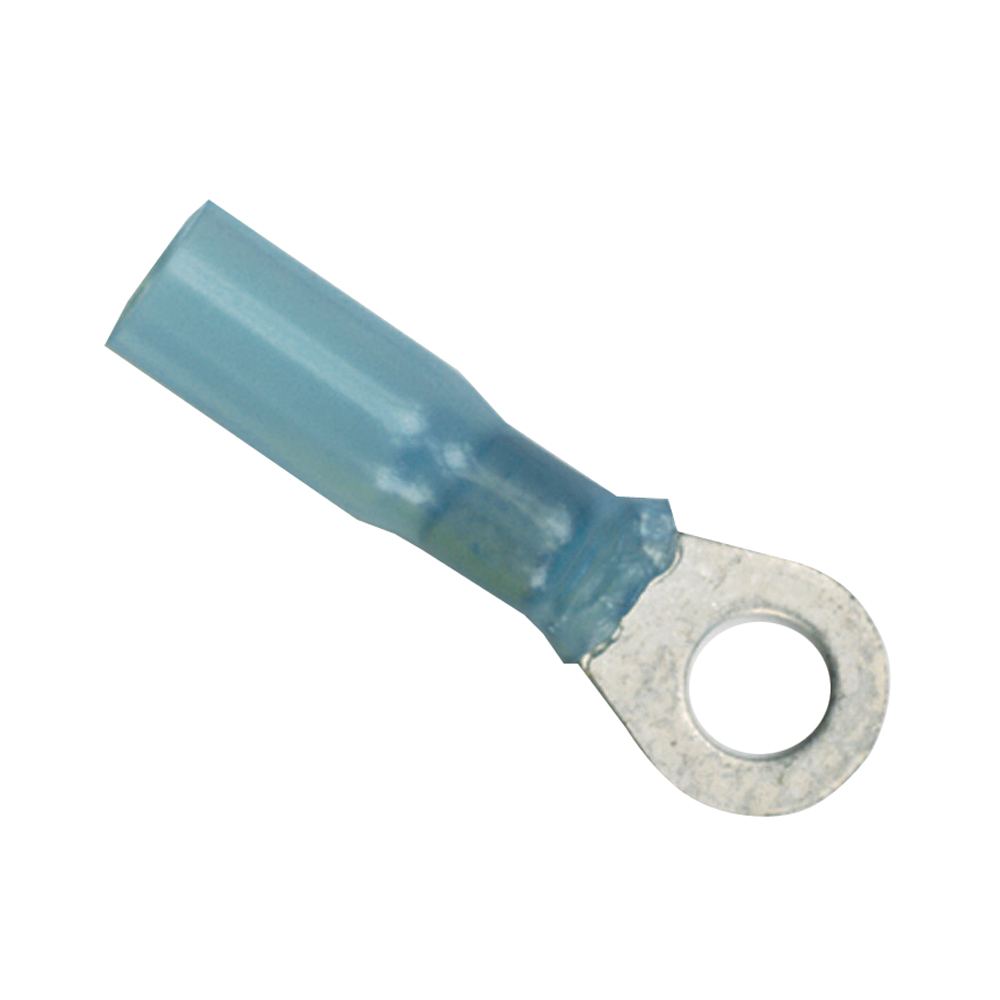

Ancor 16-14 Gauge – 5/16″ Heat Shrink Ring Terminal – 100-Pack

47664
Ancor

$50.17 $29.17

5 in stock
Qty :
,

Description

16-14 Gauge – 5/16″ Heat Shrink Ring Terminal – 100-Pack

Wire Range:16-14
Screw Size:5/16″
Quantity: 100

Features:

  • Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC
  • Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief
  • Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage
  • UL Listed and CSA Recognized
  • Highest shrink ratio – shrinks to 1/3 original size
  • Shrinks at 257° F/125° C
  • Operating temperature range 40° C to 110° C
  • ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
  • Shrinks to form a water tight seal and the ultimate vibration and strain relief
  • Tinned for corrosion resistance
  • Pure copper for maximum current flow
  • Brazed seam for maximum strength

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Quick Guide Litreture

Brochure Litreture

Gauge = 16-14 AWG | Type = Ring Terminals | Post Size = NONE | Package Qty = 100 | Heat Shrink = Yes

Additional information

Weight 0.4 lbs
Dimensions 7 × 3 × 2 in
Model Number 311599
UPC 091887313185
