Ancor 22-18 Male Heatshrink Snap Plug – 100-Pack

42102
Ancor

$65.58 $38.13

5 in stock
Qty :
,

Description

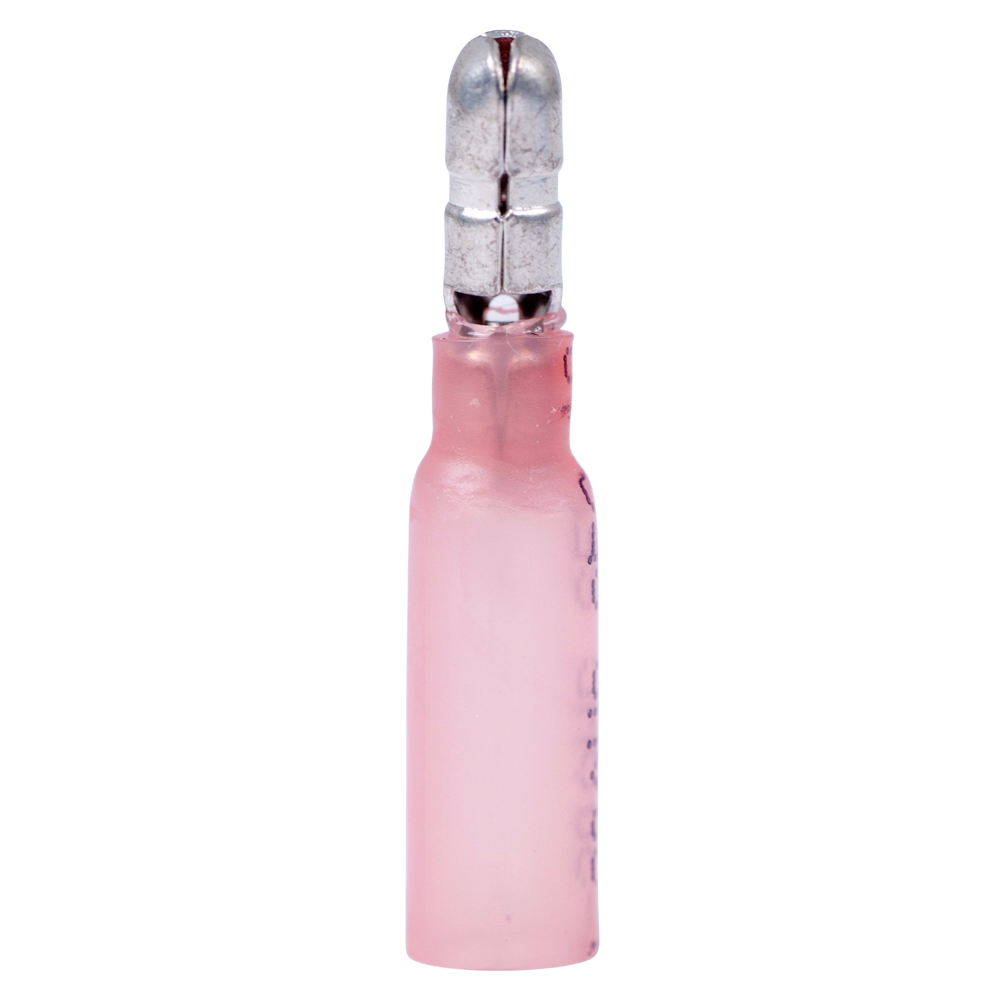

22-18 Male Heatshrink Snap Plug – 100-Pack

Features:

  • Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
  • Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
  • Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
  • UL Listed and CSA Recognized
  • Highest shrink ratio – shrinks to 1/3 original size.
  • Shrinks at 257 deg. F/125 deg. C.
  • Operating temperature range 40 deg. C to 110 deg. C.
  • ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
  • Shrinks to form a water tight seal and the ultimate vibration and strain relief.
  • Tinned for corrosion resistance.
  • Pure copper for maximum current flow.
  • Brazed seam for maximum strength.
  • Wire Range: 22-18/.157
  • Size: 0.3-0.8mm/4mm
  • Gender: Male
  • Qty/Pkg: 100

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Gauge = 22-18 AWG | Type = Snap Plugs | Post Size = NONE | Package Qty = 100 | Heat Shrink = Yes

Additional information

Weight 0.2 lbs
Dimensions 5 × 3 × 2 in
Model Number 318999
UPC 091887807677
