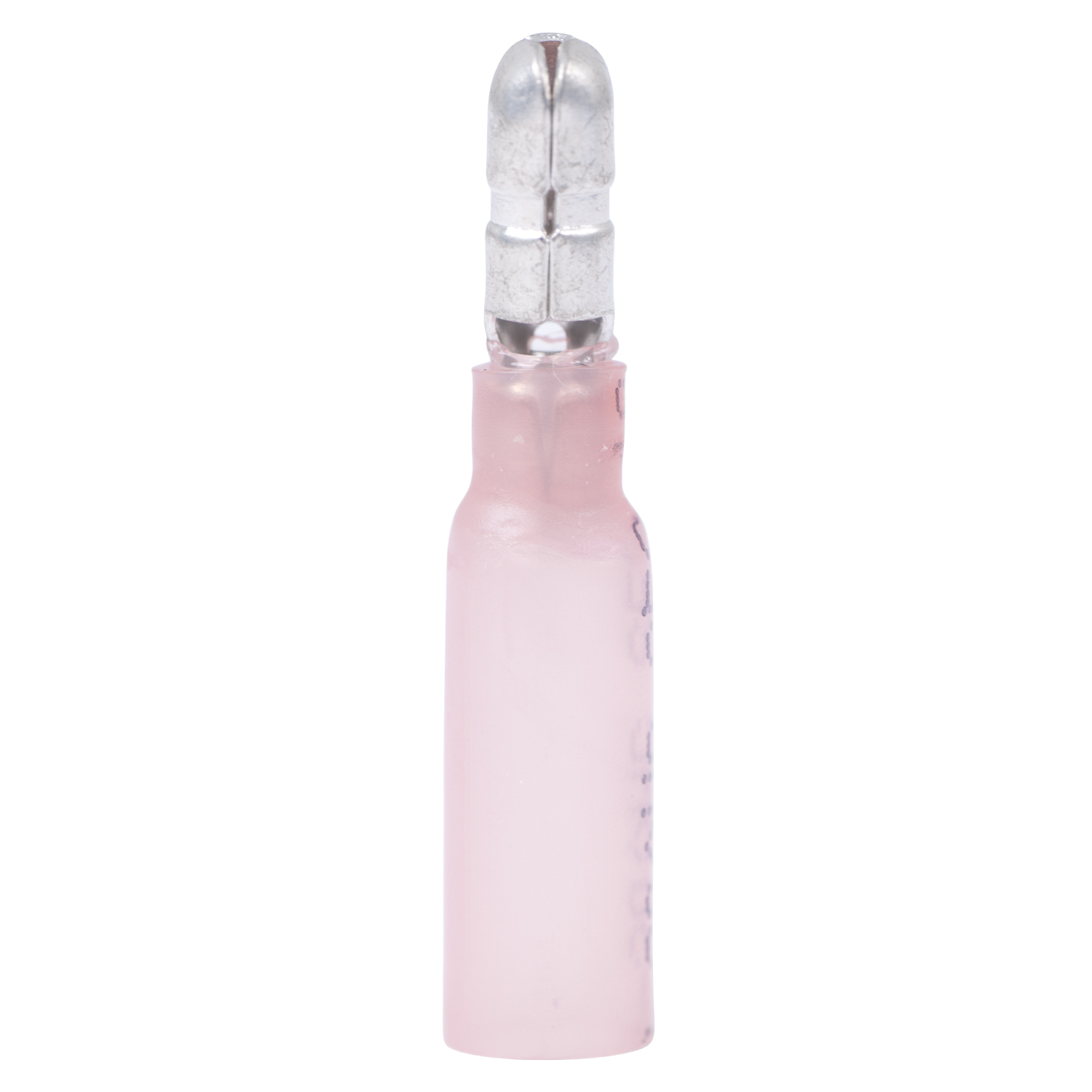

Ancor 22-18 Male Snap Plug Heat Shrink Red 100 Pack

ANC318999
Ancor

$78.08 $42.30

5 in stock
Qty :

Description

  • Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
  • Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
  • Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
  • UL Listed and CSA Recognized
  • Highest shrink ratio – shrinks to 1/3 original size.
  • Shrinks at 257° F/125° C.
  • Operating temperature range 40° C to 110° C.
  • ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
  • Shrinks to form a water tight seal and the ultimate vibration and strain relief.
  • Tinned for corrosion resistance.
  • Pure copper for maximum current flow.
  • Brazed seam for maximum strength.

Wire Range Size Gender Qty/Pkg Part No
16 – 14 3-5 mm /5 mm Female 100 319899
16 – 14 3-5 mm /5 mm Male 100 319999
22 – 18 0.3-0.8 mm /4 mm Female 100 318899
22 – 18 0.3-0.8 mm /4 mm Male 100 318999

Additional information

Weight 1.00 lbs
Model Number 318999
UPC 091887807677
