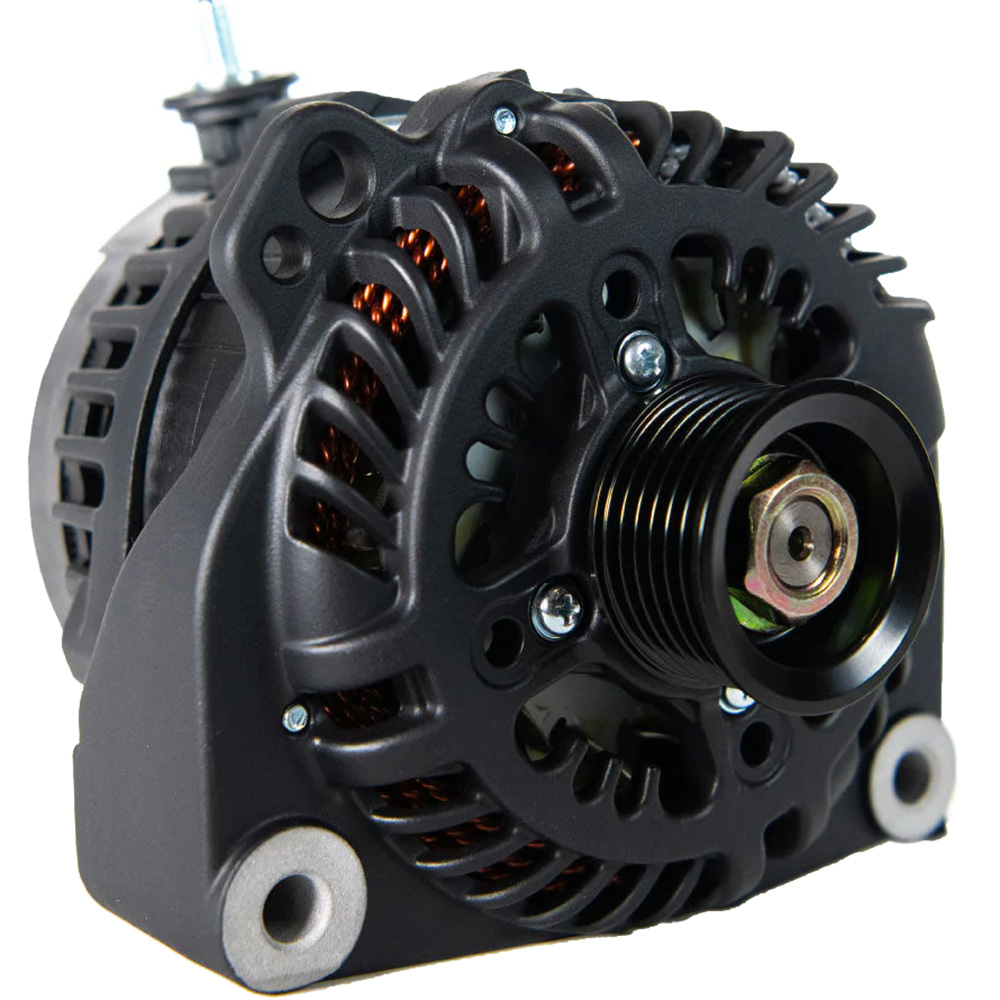

ARCO Marine Zeus A225S Vortec Alternator w/Terminal Block

104602

$795.00 $698.00

(MRP Pricing)

0 in stock
Qty :

Description

Zeus A225S Vortec Alternator with Terminal Block

The highest power output alternator in its size/class.

Features:

  • Engineered for High Energy Production.
  • Suitable for Marine, RV, Military, and Commercial applications.
  • Rapidly charges large battery banks.
  • Coolest operating temperatures for increased performance. Runs 8 – 20% cooler than incumbent alternators due to:
  • Heat shedding coatings
  • Rectifier located on housing exterior
  • Dual cooling fans
  • OEM Components
  • Optimized for performance at idle speeds.
  • Reduces the need for a generator by creating additional power with your engine.
  • Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A225S cooler. This translates to more amperage for sustained periods.
  • For maximum performance or lithium battery charging, use an ARCO Zeus Bluetooth alternator regulator.
  • SAE J1171 Certified.
  • Proudly made in the U.S.A.

Technical Specifications:

  • Voltage – 12v
  • Field Type – P
  • Rotor Poles – 16
  • Stator Size – 130mm
  • Frame Size – Small
  • Weight – 12lbs/6.7kg
  • Regulation – External Only
  • Output Voltage – 14.1v (default)
  • Finish – (Black) Cerakote or E-coating
  • Cut-In RPM – 1,061 Alternator RPM
  • Maximum Alt RPM – 19,000
  • Battery Post – M8 Thread Post, Side Mount
  • Standard Pulley – 49K6 (6-groove, 49mm)
  • Pulley Mount – 17mm diameter shaft, 25mm long, threaded M17 x 1.5
  • Pulley Hardware – M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
  • Diodes – 6 positive, 6 negative, 50A Rated, Avalanche
  • Max Output (Cold, 9,000 RPM) – 254 Amps
  • Sustained Cruising Output (Hot, 6,000 RPM) – 187 Amps
  • Sustained Idle Output (Hot, 3,000 RPM) – 157 Amps

Mounting Application:

  • Replaces Mando type alternators using Vortec/ GM pad mounting feet (Found on many Mercruiser and Volvo Penta 3.0GLM, 3.0GLP, 4.3GXi, 5.7GiL, 5.7GXiL Marine Engines.) (GM Blocks)

Owner Manual

Additional information

Model Number A225S-12-VT-EX-49K6
UPC 695845639500
