Attwood Stainless Steel Scupper Valve Barbed – 1-1/2″ Hose Size

Attwood Marine

$99.99 $62.60

2 in stock
Qty :

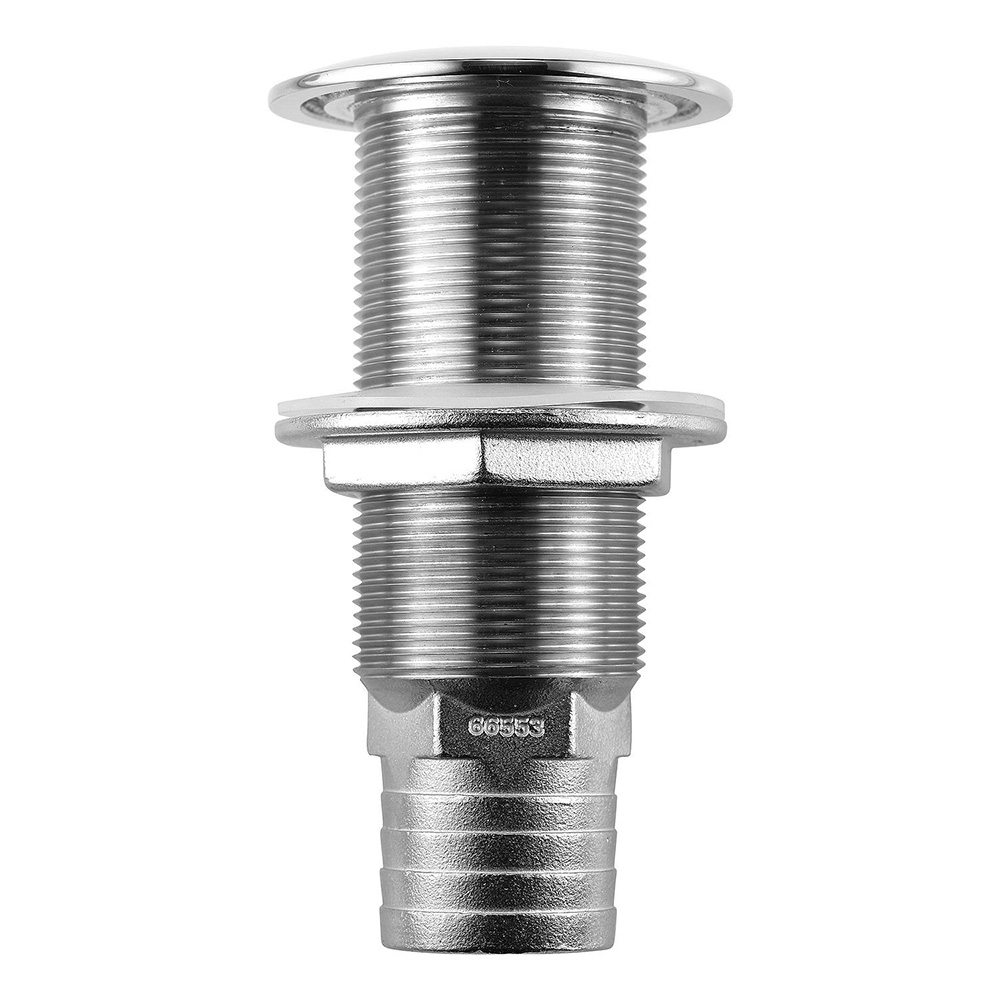

Stainless Steel Scupper Valve Barbed – 1-1/2″ Hose Size

Polish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?

Rugged Stainless Construction:

  • Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
  • All visible areas are polished to a mirror finish, then passivate each part for additional protection
  • Thick steel sidewalls withstand continual stress and hose flexing

Faster, Simpler Installation:

  • Each Scupper Valve is available with a new silicone gasket
  • A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
  • All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
  • The barbed tail ends provide plenty of room to hold multiple clamps

Stainless Steel Scupper Valves, Barbed:

  • The Scupper Flap is tough neoprene rubber with a molded V that fits into the grooved body to reduce backwash
  • Fasteners are concealed and corrosion-proof


  • Hose size: (inch) 1-1/2″ inner diameter
  • Thread Diameter: (inch) 1-7/8″
  • Flange O.D. (outside diameter): (inch) 3″
  • Thread Length: (inch) 3-1/2″
  • Barb Length: (inch) 1-1/2″
  • Total Length: (inch) 5-1/2″
  • Install Hole Saw Size: (inch) 2″
  • Thread NPSM: (inch) 1-1/2″
  • Max Hull Thickness: (inch) 3″

*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only

Quick Guide Litreture

Brochure Litreture

Hose Size = 1-1/4" | Material = Stainless Steel

Additional information

Weight 3 lbs
Dimensions 6 × 3 × 3 in
Model Number 66553-3
UPC 022697665539
