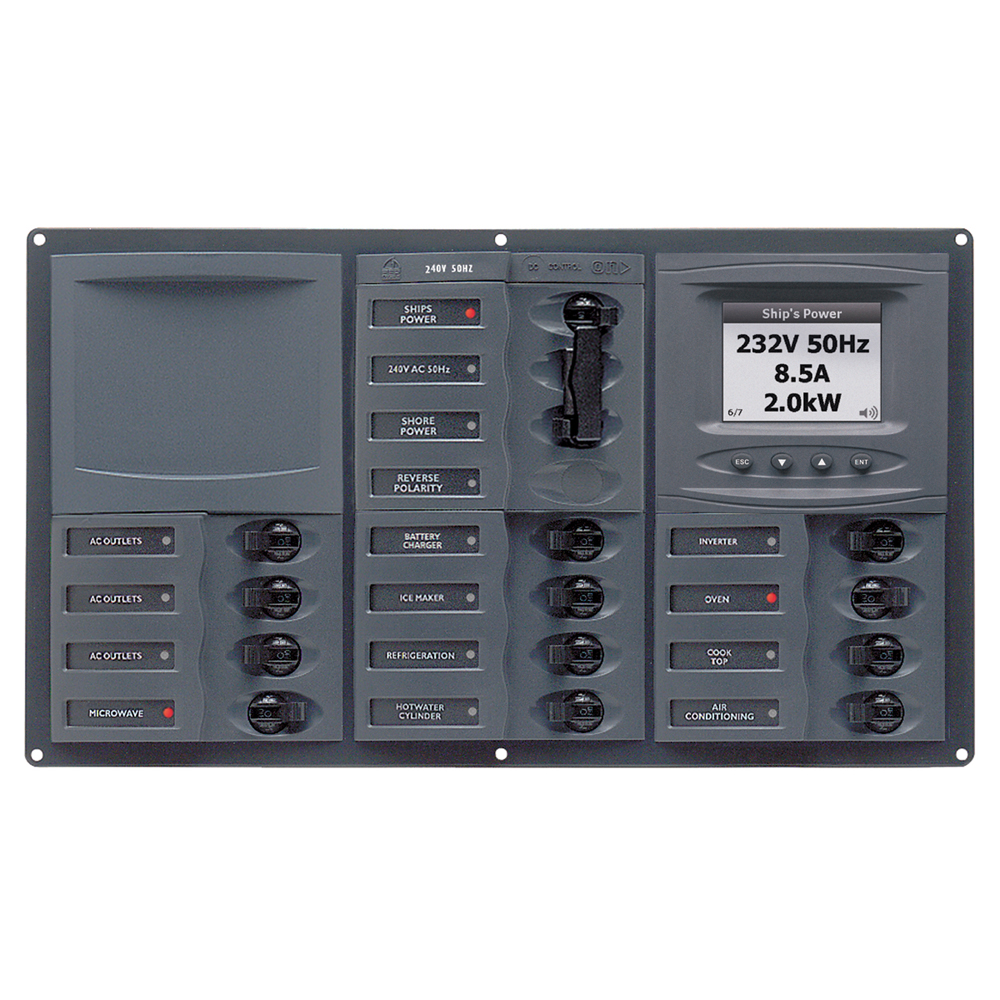

BEP AC Circuit Breaker Panel w/Digital Meters, 12SP 2DP AC230V ACSM Stainless Steel Horizontal

59031
BEP Marine

$1957.81 $1170.66

0 in stock
Qty :

Description

AC Circuit Breaker Panel with Digital Meters, 12SP 2DP AC230V ACSM Stainless Steel Horizontal

Features

  • Supplied with tranducer
  • Reverse polarity indicator
  • Double pole mains input CBs with side lockout
  • Digital meter shows volts, amps and frequency
  • LED wired to indicate live panel with mains breaker either on or off
  • AC source selector ensures no cross over between AC inputs (ship or
    shore power)

Specifications

  • Total Positions: 12 Loads + 2 Inputs
  • Circuit Breakers: 1x 5A, 4x 10A, 5x 15A, 1x 20A, 1x 25A + 1x 20A, 1x 30A
  • Nominal Voltage: 230V AC
  • Maximum Amperage: 30A
  • Dimensions: 7.9″ X 13.9″ X 2.5″
  • Neg Bus: IS-6MM-2

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Voltage = NONE | Waterproof Rating = NONE | AC/DC = AC | Max Breaker Quantity = 12+2 | Waterproof = NONE

Additional information

Model Number 900-AC3-ACSM
UPC 843687004288
