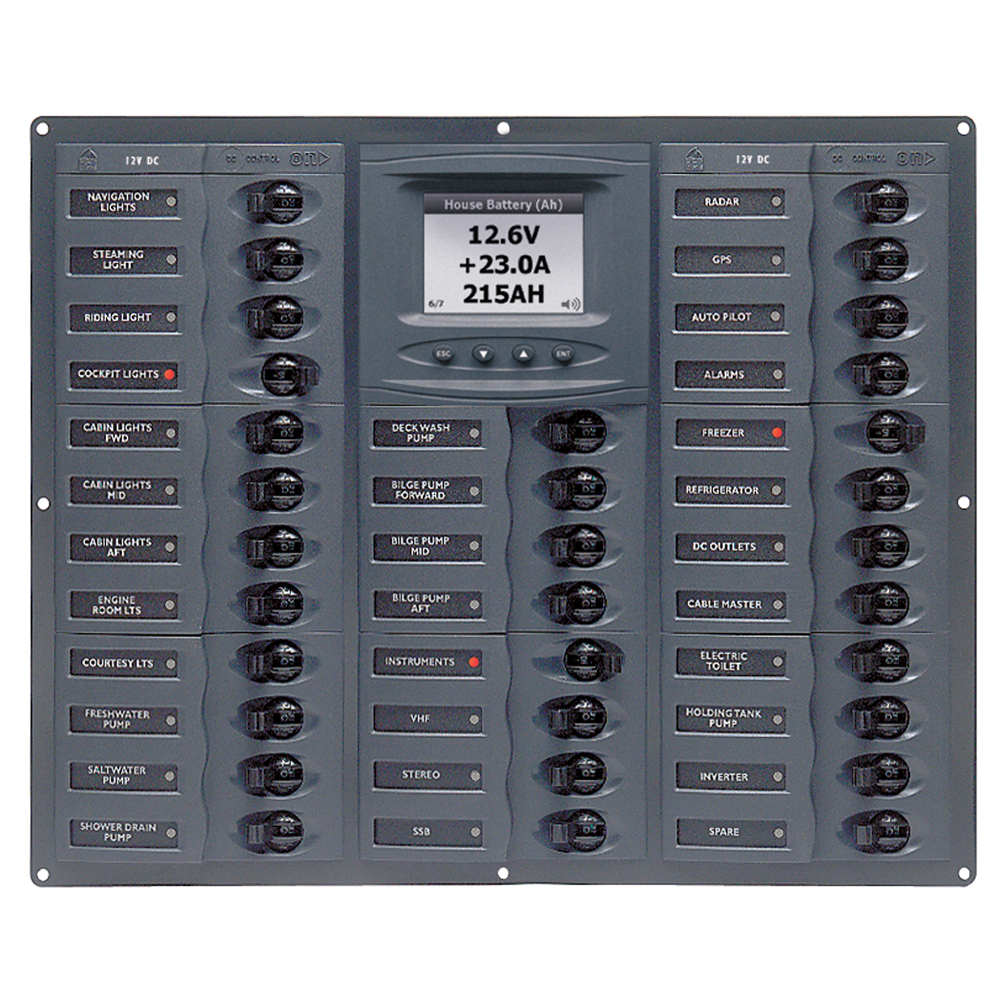

BEP Millennium Series DC Circuit Breaker Panel w/Digital Meters, 32SP DC12V

58898
BEP Marine

$1960.98 $1172.56

0 in stock
Qty :
,

Description

Millennium Series DC Circuit Breaker Panel with Digital Meters, 32SP DC12V

BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.

Features

  • Marine Grade powder coated aluminium
  • Airpax circuit breaker
  • Stylish Contour Design fascia
  • Green LED backlit labels
  • Red LED indicates systems on
  • Mimic Panel for quick reference of systems in operation
  • Panels meet ABYC standards

Specifications

Total Positions: 32 Loads
Circuit Breakers: 7X 5A, 11X 10A, 11X 15A, 1X 20A, 1X 25A, 2X 30A
Nominal Voltage: 12V
Maximum Amperage: 160A per bus
Dimensions: 11.25″ X 13.9″ X 2.5″
Neg Bus: 24 Way

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Voltage = 12v | Waterproof Rating = NONE | AC/DC = DC | Max Breaker Quantity = 32 | Waterproof = NONE

Additional information

Model Number M32-DCSM
UPC 843687004165
