Description
B&G V100-B Blackbox VHF Radio System
Model: 000-5793-001
- Integrated Class B AIS transmitter & receiver
- Class D DSC approved VHF radio
- Integrated GPS receiver
- Connect up to 4 wireless and 4 wired handsets
- Add an optional loudhailer and up to 4 external speakers
- NMEA 0183® and NMEA 2000® connectivity
- Bundled with dedicated GPS receiver, GPS-500 for AIS transmission.
- 60 second audio rewind
- Configurable external speakers with volume offsetting
- Handset backlight settings can be grouped with NMEA2000 backlight groups so MFD’s and VHF Radios can have backlight controlled together
- Track Buddy — track up to 5 "buddies" using their VHF MMSI
With a possible 8 connected handsets (4 wired and 4 wireless) and 4 external speakers, stay connected from anywhere on board. V-100-B is bundled with GPS-500 for enhanced AIS functionality.

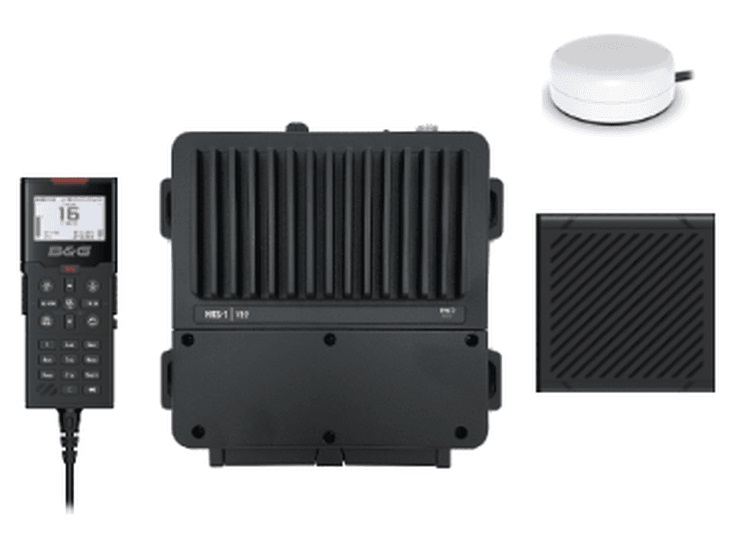

System comes with NRS-2 VHF Blackbox module with Class B AIS built in, GPS500 GPS Antenna, one H100 wired handset and one SP100 speaker.
The V100-B includes a Class B AIS transceiver, which not only receives AIS targets but also transmits your boat’s position to nearby AIS-equipped vessels. This helps other mariners to spot your boat through any conditions, day or night. A built-in AIS receiver monitors the position of other AIS-equipped vessels, helping you to proactively avoid collisions in crowded harbours and waterways. AIS information can be viewed on the radio’s built-in screen, or overlaid on your chart or radar screen through a compatible multifunction display.
The V100-B comes with 1 wired handset and 1 speaker, but you can add up to 4 more B&G H60 wireless and 3 more H100 wired handsets along with up to 3 additional external speakers, doubling your radio as an on-board intercom. Each wireless handset with inductive charging, duplicates your radio’s display and controls on a large, easy-to-read screen, viewable in all lights, with intuitive user interface. Access all key functions with channel scan and favourites, alphanumeric keypad, clear audio, handset station naming and 60 second audio rewind.
Specifications
| System Features | |
| Local/Distant control: | Yes |
| Position polling: | Yes |
| Group call: | Yes |
| Call logs: | Yes – 20 individual and 10 distress |
| Channel naming: | Yes |
| Handset naming: | Yes |
| Dual watch / Tri watch: | Yes |
| Favourite channel scan: | Yes |
| All scan: | Yes |
| User programmable MMSI: | Yes |
| User programmable ATIS ID: | Yes |
| MMSI and NAME directory: | Yes – 50 vessel contacts and 20 group contacts |
| Software updates: | Yes, via NMEA 2000 |
| NRS-1 / NRS-2 – BLACKBOX | |
| Power supply: | 12 V DC battery system |
| Nominal operating voltage: | + 13.6 V DC |
| Low battery alert: | 10.5 V DC +/- 0.5 V |
| Over voltage protection: | > 15.8 V +/- 0.5 V |
| Current drain (transmit): | ≤6 A @ 25 W / 1.5 A @ 1W (12 V DC) |
| Current drain: NRS-1 (standby, 1 FHS): | Less than 400 mA in standby |
| Current drain: NRS-2 (standby, 1 FHS): | Less than 650 mA in standby |
| Replacement fuse: | 10 A, mini-blade type |
| Temperature range: | -20 C to +55 C (-4 F to 131 F) |
| VHF antenna connector: | SO-239 (50 ohm) |
| AIS antenna connector (NRS-2): | SO-239 (50 ohm) |
| GPS antenna connector: | SMA (female) |
| Wireless connector: | RP-SMA (female) |
| Compass safe distance: | 0.5 m (1.5’) |
| NMEA 0183 input NRS-1 / NRS-2: | RMC, GGA, GLL, GNS |
| NMEA 0183 input NRS-2: | HDG, HDM, HDT |
| NMEA 0183 output NRS-1 / NRS-2: | DSC, DSE, MOB, VDM |
| NMEA 0183 output NRS-2: | VDO |
| External Speaker output power: | 4 W @ 4 ohm x 4 outputs |
| External speaker: | 4 ohm, minimum 5 W |
| Hailer output power: | 25W @ 4 ohm |
| Hailer speaker: | 4 ohm, minimum 30 W |
| Waterproof: | IPx5 |
| Transciever | |
| Usable channels (country specific): | International, USA, Canada, Weather |
| DSC mode: | Class D (Global) with dual receiver (individual CH70) |
| Transmitter | |
| Transmitter Frequency range: | 156.025 – 157.425 MHz |
| Output power: | 25 W (23 ± 2) / 1 W (0.8 ± 0.2) |
| Transmitter protection: | Open / short circuit of antenna |
| AIS (CLASS-B) (NRS-2 ONLY) | |
| AIS mode: | Class-B CS (CSTDMA) |
| AIS receive function: | Yes, dual receivers (receive only) |
| AIS transmit function: | Yes, single |
| BUILT-IN GPS RECEIVER | |
| Number of channels: | 72 channels |
| Receiving frequency: | 1575.42 MHz |
| Horizontal accuracy: | <10 m |
| Position fixing time: | Warm start: 30s, Cold start: 90s |
| WIRELESS SPECIFICATION | |
| Wireless standard: | 802.11 b/g/n20 |
| Operating frequency: | 2412~2472 MHz (for EU); 2412-2462 MHz (for US) |
What’s in the Box:
- NRS-2 Marine VHF System Blackbox
- HANDSET,H100,WIRED
- SP100 Speaker
- GPS-500 GPS Antenna
