B&G WS310 Masthead with 20m Cable and N2K Interface

BNG00014382001
B & G

$699.00

(MRP Pricing)

0 in stock
Qty :

Description

B & G WS310 (wired) wind sensor with 20 m (65.5 ft) mast cable and interface for connection to NMEA 2000® networks

Model: 000-14382-001

  • High accuracy for the best instrument and autopilot performance. High performance aerodynamic design is the result of over 500 individual wind tunnel tests
  • Wide compatibility — direct NMEA 0183 output or connect via interface to a NMEA 2000® network
  • Straight-forward installation. Single cable, cable runs of up to 80m

A new range of high precision B&G wind sensors, designed for cruising and club racing sailors. An evolution of B&G’s previous sensors, developed through hours of iterative testing to provide the best solution for sailing wind sensors. The WS300 series meets the following design objectives:

Designed to provide highly accurate wind data in all conditions at all points of sail and heel. WS300 has been benchmarked against multiple different sensors in over 500 individual wind tunnel tests.

Specifications

Waterproof IPx6 & IPx7
Operating temperature -25°C to 65°C
Power usage 15 mA at 12 V DC
Wind speed resolution 0.05 m/sec (0.1 Knots)
Wind speed accuracy +/-0.1m/sec (0.2 Knots) from 1 – 40 m/sec (2-80 Knots)
Wind speed range 0.25 – 50 m/sec (0.5-97 Knots)
Wind angle resolution 0.1°
Wind angle accuracy +/- 0.5°
Data output NMEA0183 ‘MWV’ sentence at 10Hz

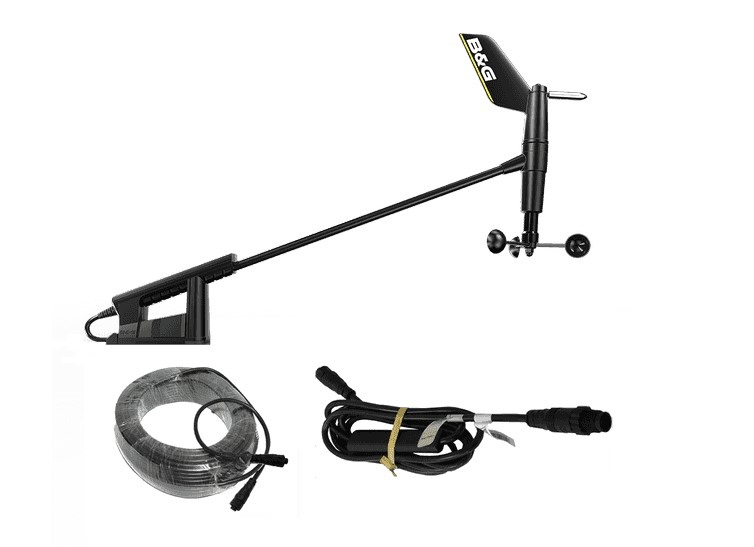

What’s in the Box:

  • WS310 Wired Wind Sensor
  • WS310 Wired Interface Only
  • WS300/700 20M (65′) CABLE

Additional information

Weight 5.00 lbs
Model Number 000-14382-001
UPC 9420024171417
