Description

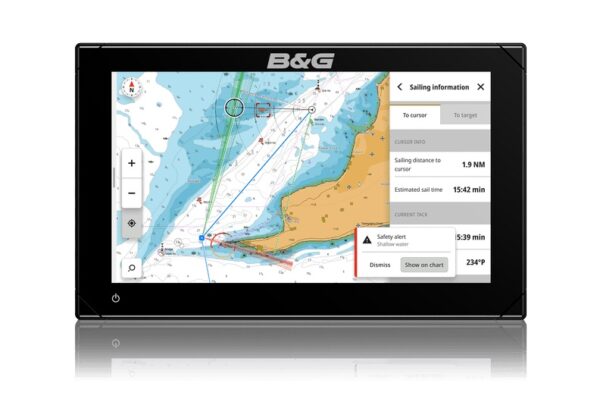

B & G Zeus S 9 Chartplotter AMER. 9-inch SolarMAX™ high definition display
Model: 000-15220-001
- Features support for the new marine-optimized C-MAP® DISCOVER™ X and C-MAP REVEAL™ X charts with a fresh, intuitive chart presentation and daily updates
- High-definition IPS touch screen with extreme viewing angles, viewable through polarized lenses
- Full integration with the capability to expand the system with Simrad® radar, autopilot, and more
- Faster Autorouting with seamless accessibility
- Stay on course with full Simrad® autopilot integration
- Modern and straightforward interface
- B&G App integration — keep your chart data at your fingertips, both on and off the water
- Third-party app integration
- Wireless connectivity, plus Ethernet and NMEA 2000® networking capability
- IP Video Support
See the data you need, when you need it. Simply select your Sailing Mode for your situation, giving you just the information you need for Cruising or Racing.
Improve your sailing with easy to interpret pointers from B&G®’s award-winning sailing features for cruising and racing, with updates to SailSteer™, Laylines, StartLine, Routes, Racing and many more. C-MAP® powered Safety Alerts guard against grounding and dangerous objects.
C-MAP DISCOVER™ X and REVEAL™ X charts feature highly accurate data with simple viewing options for easy and clear navigation. Tides and currents projections improve trip planning and route plotting, further supported by our fastest-ever autorouting. Plus, get quick, one-touch access to POIs, tides, channels, and more.
Put your Zeus® S at the heart of a complete sailing system with easy integration. With NMEA 2000®, you can connect to Autopilot, Instruments, Radar, Sailing Processors, Audio, Engines, and a wealth of other compatible products. Zeus S also integrates easily with the B&G App, letting you plan trips, review routes, and manage waypoints from home, then sync the moment you step onboard.
Across the device, our new and intuitive interface is designed to feel familiar. Zeus S boasts a handy Setup Wizard to get you started, and ongoing tips to help you get the most from your Zeus S Chartplotter and networked equipment.
Specifications
| Display | |
| Size and Type | 9″ SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity, and sunlight viewability with polarized sunglasses |
| Resolution | 1280 x 800 |
| Viewing Angles | 85° (top, bottom, left, and right) |
| Screen Brightness | >1200 nits |
| Backlight Color | White |
| Power | |
| Supply Voltage | 12 V DC (10 – 17 V DC min – max) |
| Power Consumption max | 29.7 W (2150 mA at 13.8 V) |
| Recommended Fuse Rating | 2A |
| Physical | With bracket: W: 220 mm (8.66″) x H: 145.9 mm (5.74″) x D: 79.5 mm (3.13″) No bracket, no suncover: W: 195 mm (7.68″) x H: 123.0 mm (4.84″) x D: 79.5 mm (3.13″) |
| Weight | 2.2 kg (4.9 lbs) |
| MountingType | With bracket: W: 319.5 mm (12.58″) x H: 215.1 mm (8.46″) x D: 86.0 mm (3.38″) No bracket, no sun cover: W: 309.5 mm (12.19″) x H: 208.4 mm (8.20″) x D: 86.0 mm (3.38″) |
| Compass Safe Distance | 50 cm (1.7 ft) |
| Environmental | |
| Operating Temperature Range | -15°C to 55°C (5°F to 131°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Waterproof rating | IPx6 and IPx7 |
| Humidity | IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) |
| Shock Vibration | 100,000 cycles of 20 G |
| Interface and connections | |
| Interface | Multi-touch screen |
| Sonar Compatibility | One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging |
| Ethernet | 1 port (5-pin connector) |
| NMEA 2000 | 1 x NMEA 2000 Micro-C port, 1 LEN |
| NMEA 0183 | No |
| USB | No |
| External Storage | 1 MicroSD slot |
| GPS | Internal, 10Hz, WASS, MSAS, EGNOS |
| GPS Correction | 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS |
| GPS Position Accuracy | Horizontal Accuracy 3 m (9.8 ft) |
| GPS Receiver Channels | 32 Channels |
| GPS Update rate | 10Hz |
| J1939 | No |
| ConnectivityPcConnectivity | No |
| WiFi | IEEE 802.11b/g/n |
| Bluetooth | Bluetooth 4.0 with support for Bluetooth Classic |
| Charts Supported | C-MAP Discover X, C-MAP Reveal X |
| Radar Compatibility | Halo Dome radars |
| Weather | No |
| AIS | Receive AIS data over NMEA 2000 |
| Digital Switching | Command DDS, CZone (control bar only on release) |
| Warranty | |
| Warranty Period | 2 Years |
What’s in the Box:
- Zeus 9 S Display
- M-NA-T-200-D-MS: DISCOVER X – NORTH AMERICA
- B&G Zeus S 9 Suncover
- 4-Pin Power Cable
- Fuse and Fuse Holder
- Bracket NSX 3009, NSS7evo3, Zeus3-7, GO9 and Vulcan 9
- NSX CORNER CLIP ACCESSORY
