Description

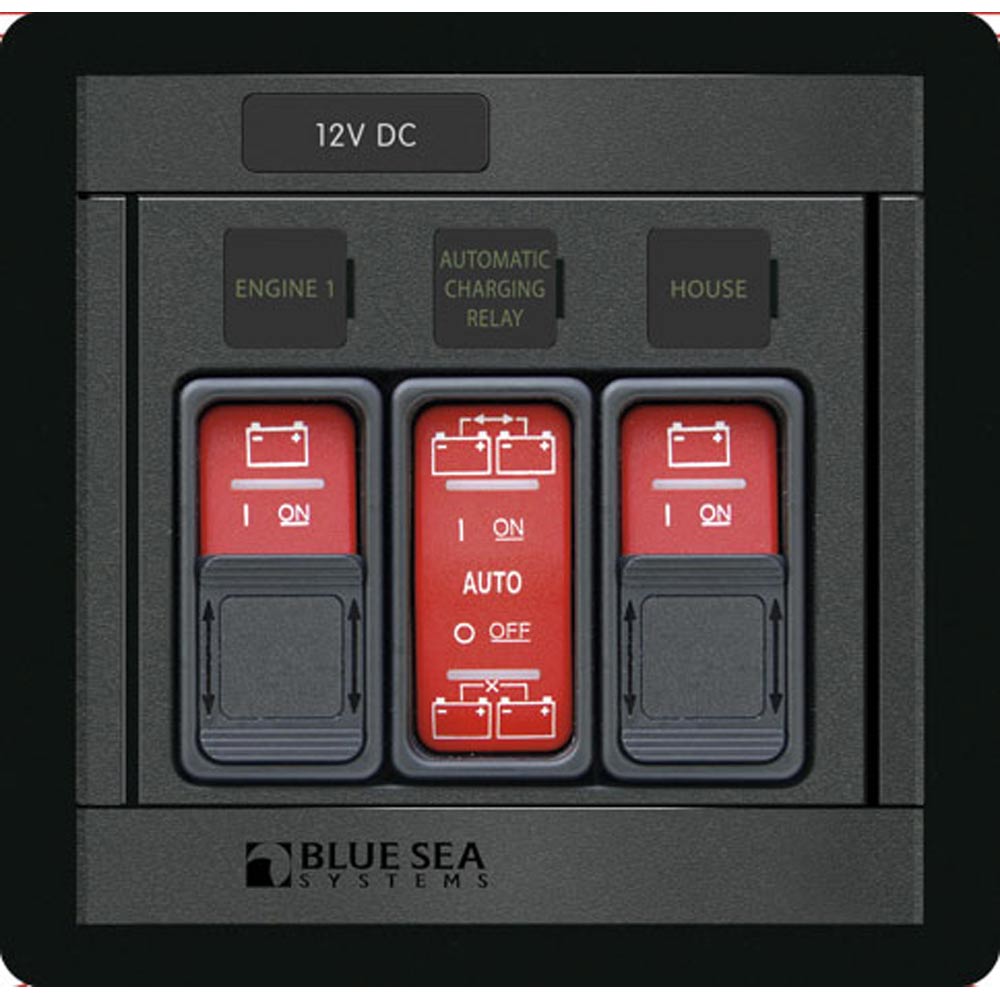

Remote Control Panel w/(2)2145 & (1)2146 Remote Control Contura Switch

Features:

• Lockout slides reduce the risk of accidental switching

• For use with two ML-Series Switches and one ML-Series Automatic Charging Relay

• Includes labels illustrated only

• Over 500 individual labels available

Specifications:

• Positions:3

• Nominal Voltage:12V DC / 24V DC

• Height:4.75″ (120.65mm)

• Width: 4.88″ (123.95mm)

• Depth:2.00″ (50.8mm)

• Weight:0.83lb (0.38kg)

  Included:
  (2) – 2145 – SPDT Remote Control Contura Switch – (ON)-OFF-(ON)
  (1) – 2146 – SPDT Remote Control Contura Switch – ON-OFF-ON

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  Quick Guide Litreture

  Owner Manual

  Brochure Litreture

  Max Breaker Quantity = NONE | AC/DC = DC | Voltage = NONE | Waterproof = NONE | Waterproof Rating = NONE | Continuous Amperage = NONE | AFD = NONE | Lockable = NONE | Positions = NONE
