Description

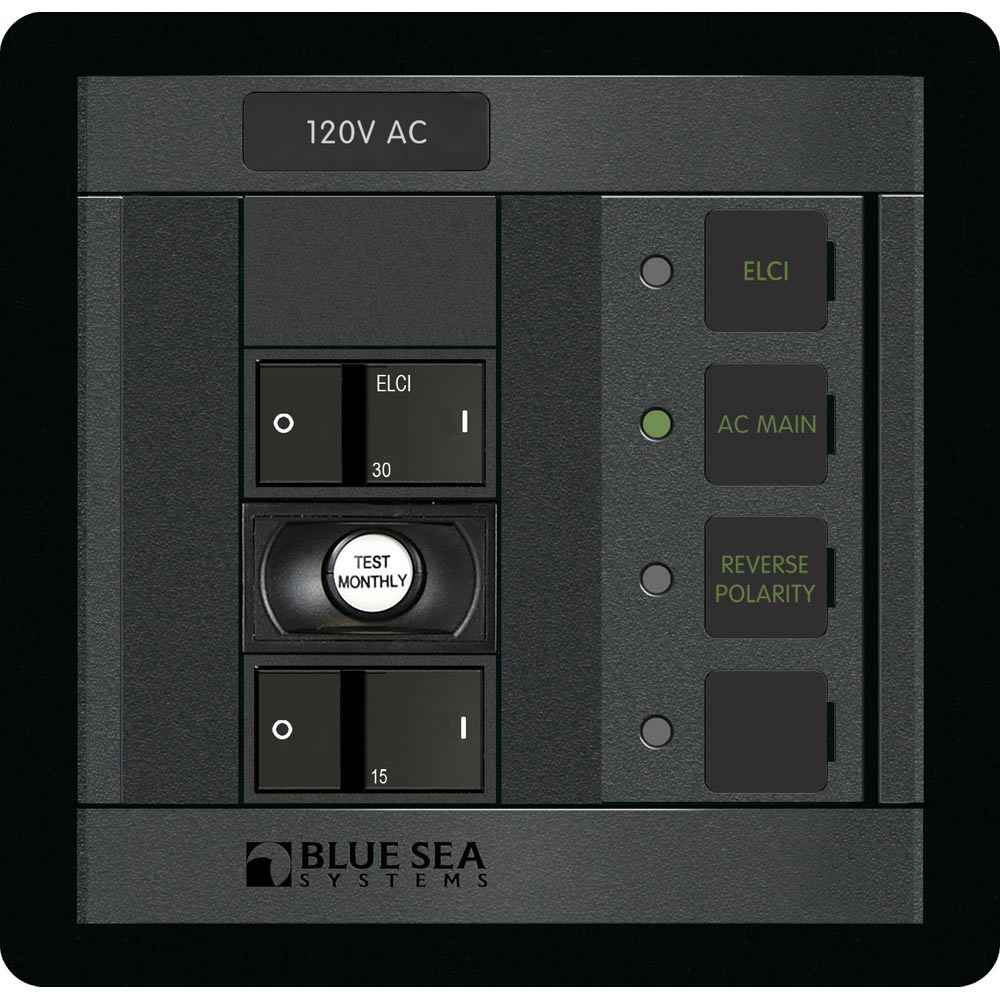

ELCI Main 30A Double Pole + 1 Position

Features:

• One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate – 30 mA

• ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection

• One 15A AC Branch Flat Rocker Circuit Breaker

• Red ” Reverse Polarity” LED

• Includes 4206 AC Panel Basic Square Format Label Set

• All circuit label positions are backlit

• “ON” indicating LEDs

Specifications:

• Positions: 1

• Nominal Voltage: 120V AC

• Backlit Label*: Green LED

• Height: 4.75″ (120.65mm)

• Width: 4.88″ (123.95mm)

• Depth: 3.99″ (101.35mm)

• Weight: 1.00lb (0.45kg)

Includes:
(1) – 7403 – A-Series Flat Rocker Circuit Breaker – Single Pole 15A
(1) – 3102100 – A-Series ELCI Main Circuit Breaker – Double Pole 120V AC 30A

*Green LEDs (Circuit Breaker Panels only) aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Quick Guide Litreture

Owner Manual

Brochure Litreture

Waterproof = NONE | Max Breaker Quantity = NONE | AC/DC = AC | Waterproof Rating = NONE | Voltage = NONE
