Description

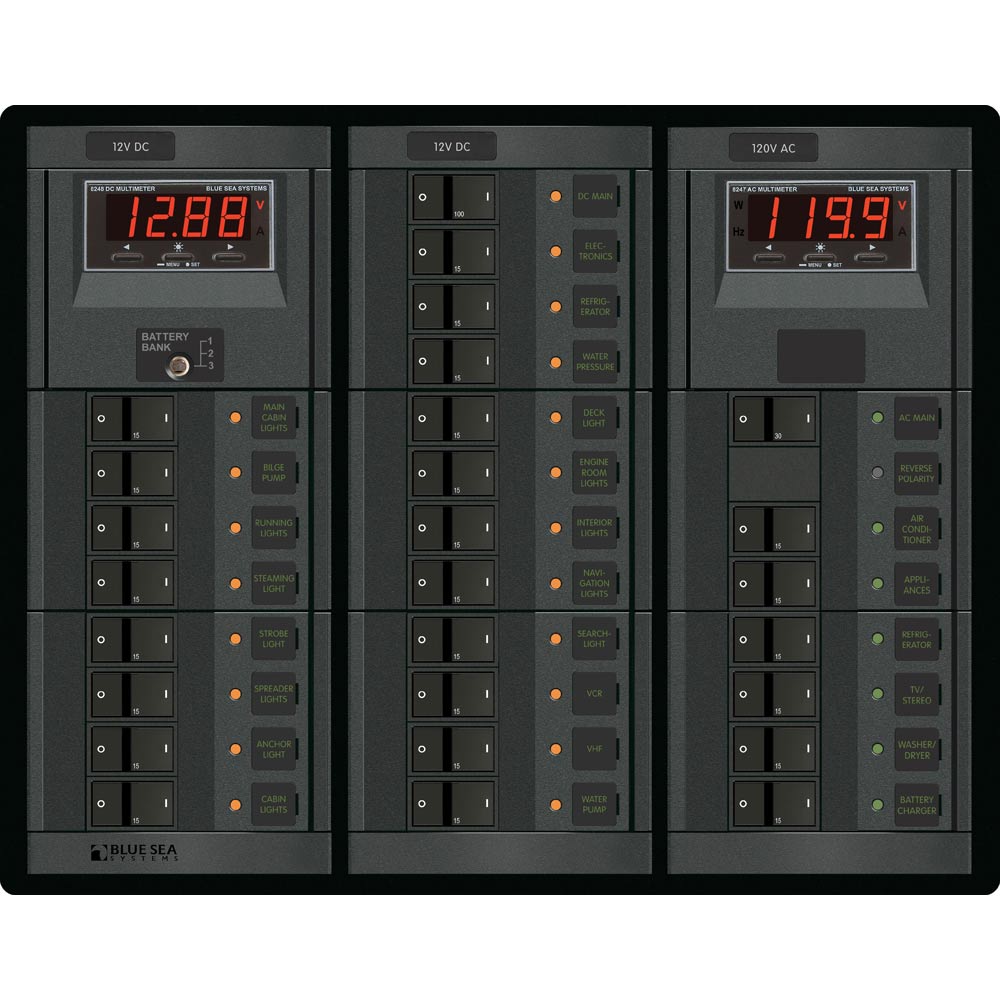

12 Volt DC Main + 19 Positions/120 Volt AC Main + 6 Positions
Features:
- 360 AC Panels may be equipped with main breakers up to 100A per pole to suit the application
- AC and DC panel amperage determined by AC Main and DC Main circuit breakers
- Modular manufacturing design reduces manufacturing time
- Interchangeable modular design eliminates custom engineering and metal fabrication
- Flexible modifications
- Flexible panel orientation (panels without meters)
Specifications:
- Positions: 6-AC / 19-DC
- Nominal Voltage: 120V AC / 12V DC
- Height: 10.75″ (273.05mm)
- Width: 13.63″ (346.2mm)
- Depth: 4.00″ (101.6mm)
- Weight: 12.80lb (5.81kg)
Includes:
(1) – 4205 – Basic DC Label Kit – 30 Black Square Labels [LABEL]
(1) – 4206 – Basic AC Label Kit – 30 Black Square Labels [LABEL]
(6) – 7403 – A-Series Flat Rocker Circuit Breaker – Single Pole 15A (AC Branch)
(1) – 7414 – A-Series Flat Rocker Circuit Breaker – Double Pole 30A (AC Main)
(1) – 8247 – AC Digital Multi-Function Meter with Alarm (AC Meter)
(19) – 7403 – A-Series Flat Rocker Circuit Breaker – Single Pole 15A (DC Branch)
(1) – 7549 – C-Series Flat Rocker Circuit Breaker – Single Pole 100A (DC Main)
(1) – 8248 – DC Digital Multi-Function Meter with Alarm (DC Meter)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Waterproof = NONE | Max Breaker Quantity = NONE | AC/DC = Both | Waterproof Rating = NONE | Voltage = NONE
