Description

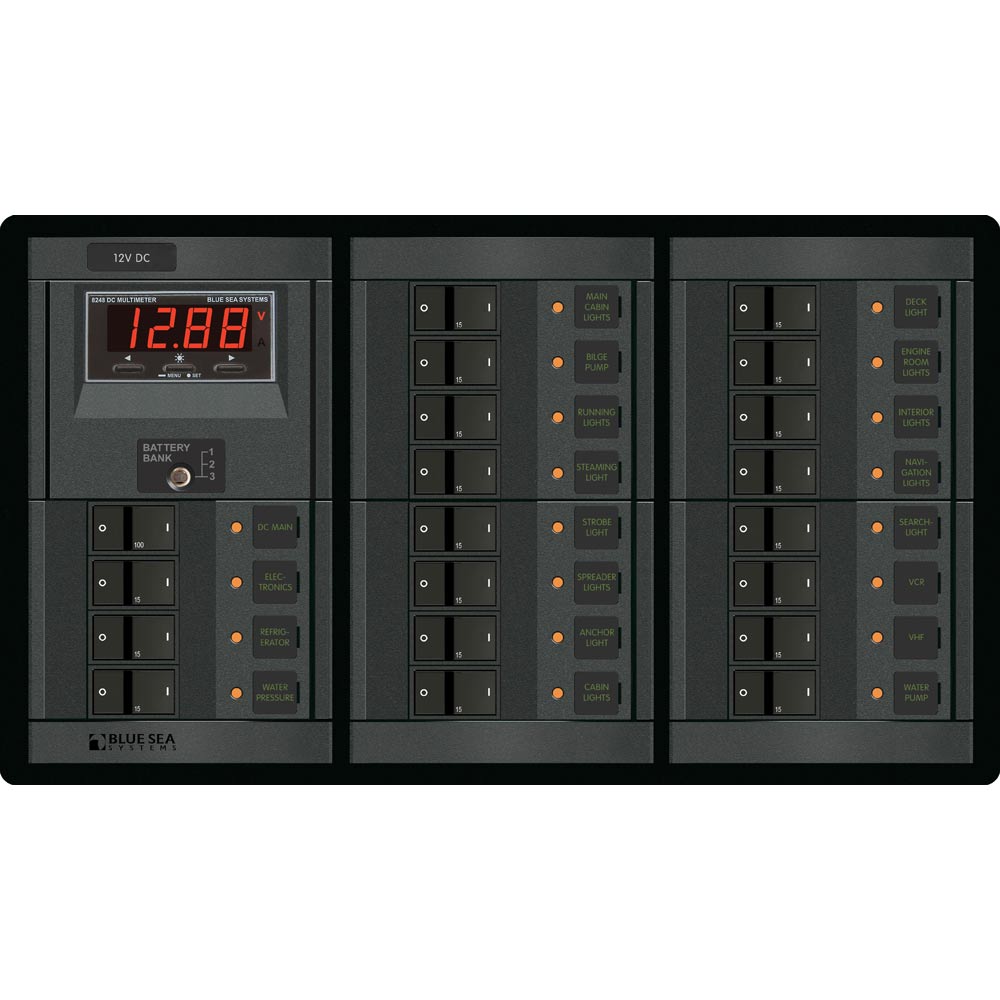

12 Volt DC Main + 19 Positions w/Digital Meter

Features:

• 4 to 32 branch circuits with installed 15 Ampere circuit breakers

• Available with voltmeters, ammeters, and digital multimeters

• Includes 4205-Square Format Label Set

Specifications:

• Positions: 19

• Nominal Voltage: 12V DC

• Maximum Amperage*: 100A per bus

• Height: 7.75″ (196.85mm)

• Width: 13.63″ (346.2mm)

• Depth: 4.00″ (101.6mm)

• Weight: 8.80lb (3.99kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(19) – 7403 – A-Series Flat Rocker Circuit Breaker – Single Pole 15A
(1) – 4205 – Basic DC Label Kit – 30 Black Square Labels [LABEL]
(1) – 7549 – C-Series Flat Rocker Circuit Breaker – Single Pole 100A (Main)
(1) – 8248 – DC Digital Multi-Function Meter with Alarm (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Quick Guide Litreture

Owner Manual

Brochure Litreture

Max Breaker Quantity = NONE | AC/DC = DC | Waterproof = NONE | Waterproof Rating = NONE | Voltage = NONE
