Description

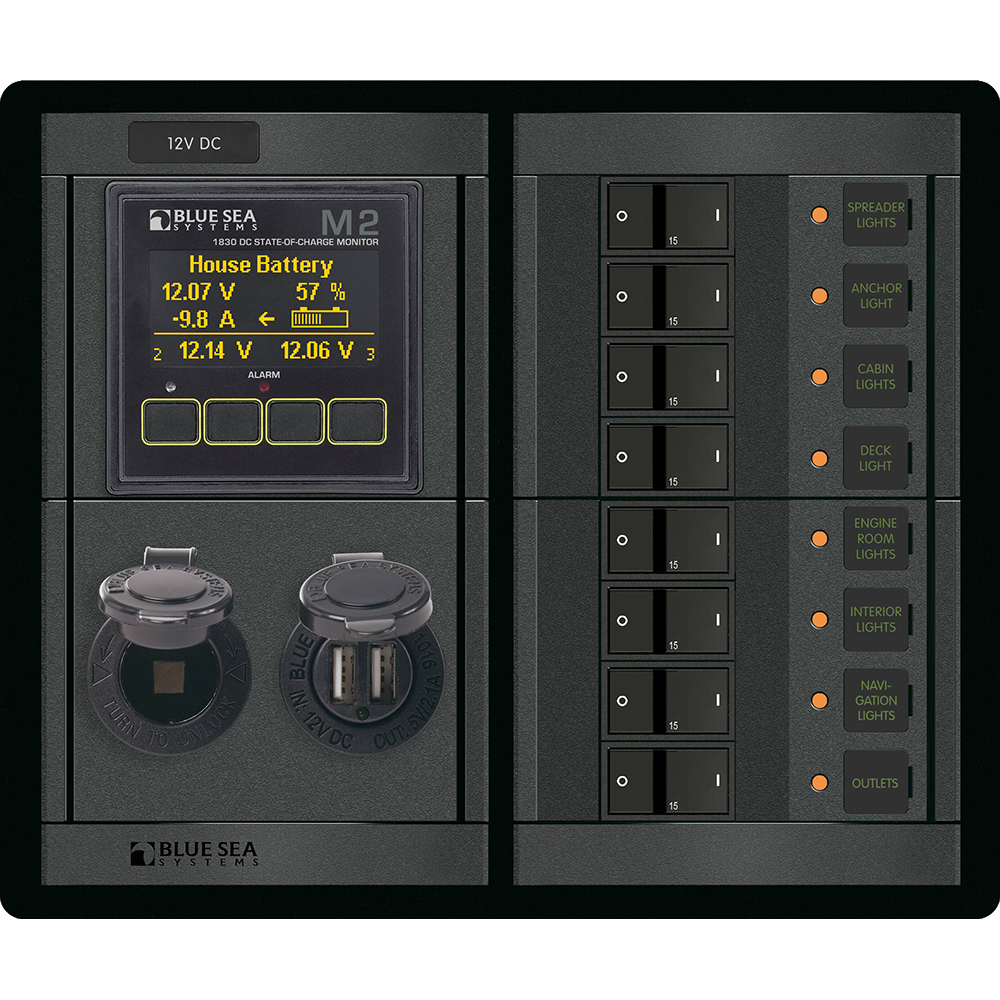

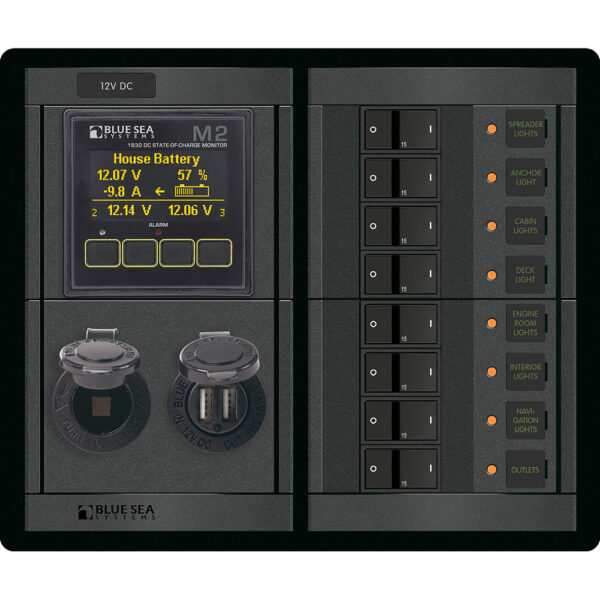

1497 – 360 Panel – 8 Position 12V Flat Rocker M2 Multimeter with SOC & Dual USB/12V Socket

Part of the Blue Sea Systems Battery Management Panels.  This DC Branch Circuit Breaker panel will distribute current from a high amperage source to lower amperage circuits.

DC sockets and USB charging are integrated into a popular sized circuit protection panel.

Features:

• ON-indicating LEDs
• Backlit label positions

Technical Specifications:

• Positions – Eight (8)
• Meter – M2 Multimeter w/SOC
• Nominal Voltage – 12V DC
• Maximum Amperage – 100A
• Circuit Breaker Type – 8 A-Series (15A)
• USB Output – 12/24V Dual USB
• Socket Output – 12V Dash socket
• Dimensions – (H x W x D) – 7.75″ x 9.25″ x 4″ (197 x 235 x 102mm)

In the Box:

• 1497 Panel
• Instruction Manual

*Sold as an Individual

AC/DC = NONE | Action = NONE | Color = NONE | Max Breaker Quantity = NONE | Throw/Pole = NONE | Voltage = NONE | Waterproof Rating = NONE | Waterproof = NONE
