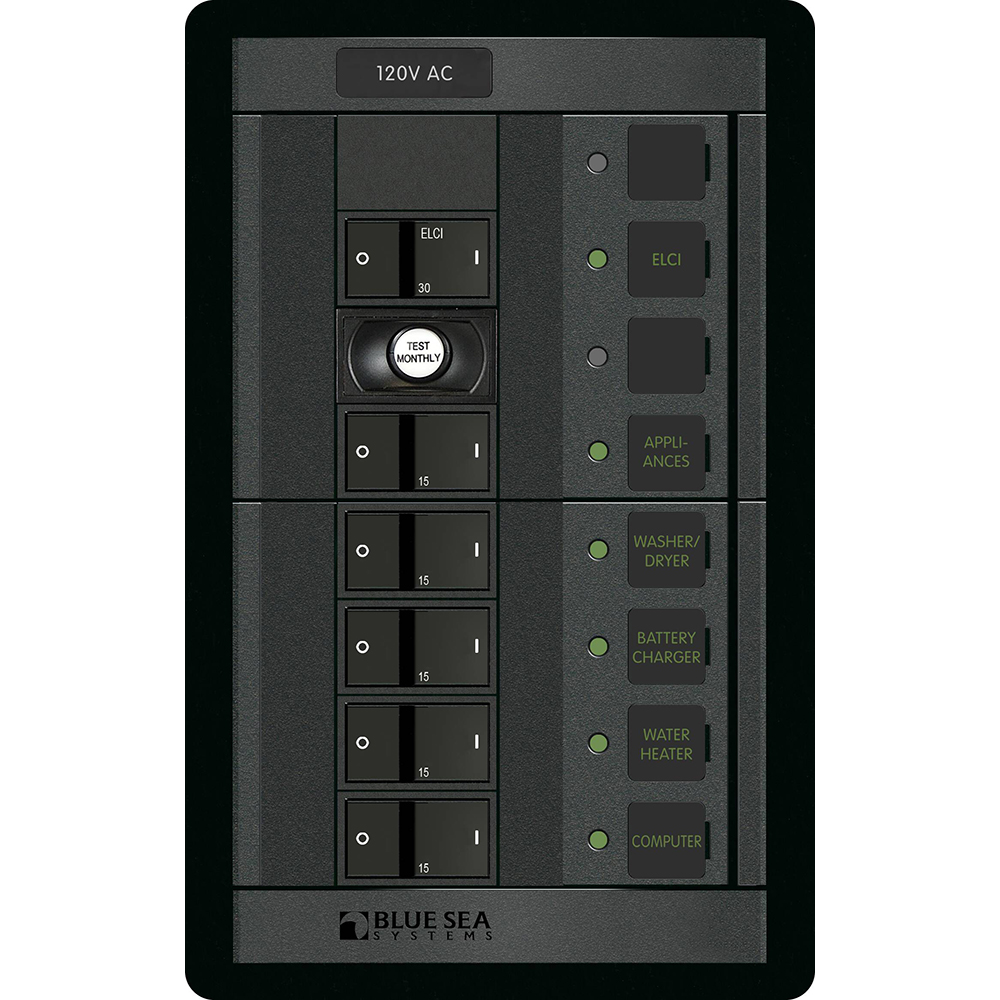

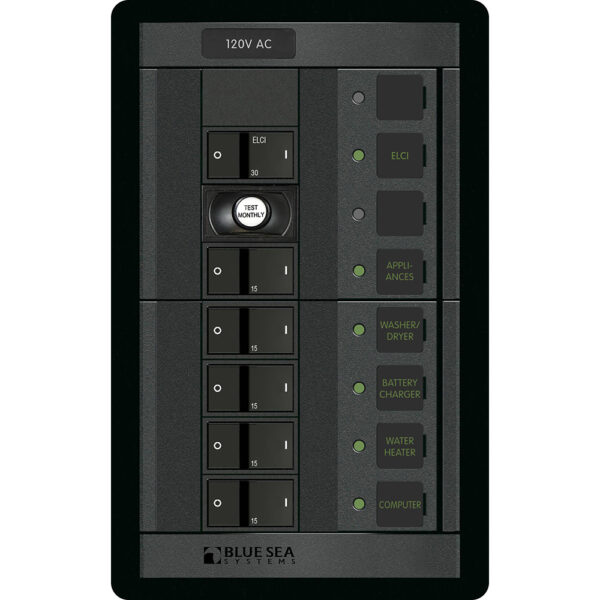

Blue Sea 1503 – 360 Panel – ELCI + 5 Position 120V AC Flat Rocker

94729
Blue Sea Systems

$915.46 $573.10

0 in stock
Qty :
, ,

Description

1503 – 360 Panel – ELCI + 5 Position 120V AC Flat Rocker

Part of the Blue Sea Systems Battery Management Panels.  This one standard panel features Equipment Leakage Circuit Interrupter (ELCI) protection with branch breakers and will reduce the risk of fire and shock hazards caused by defects in appliances and circuit wiring.

Features:

  • Provides Main circuit protection with branch circuits
  • Green ON indicating LEDs
  • Backlit label positions

Technical Specifications:

  • Positions – Five (5) + ELCI
  • Amperage – 30A AC trip reference
  • Actuator Style – Flat Rocker
  • Maximum Voltage – 120V
  • Circuit Breaker Type – A-Series: 5 Branch (15A) and ELCI Main (30A)
  • Leakage Trip Amps – 30mA
  • Dimensions (H x W x D) – 7.75″ x 4.88″ x 3.99″ (197 x 124 x 101mm)

In the Box:

  • 1503 Panel
  • Instruction Manual

*Sold as an Individual

AC/DC = NONE | Action = NONE | Color = NONE | Max Breaker Quantity = NONE | Throw/Pole = NONE | Voltage = NONE | Waterproof Rating = NONE | Waterproof = NONE

Additional information

Model Number 1503
