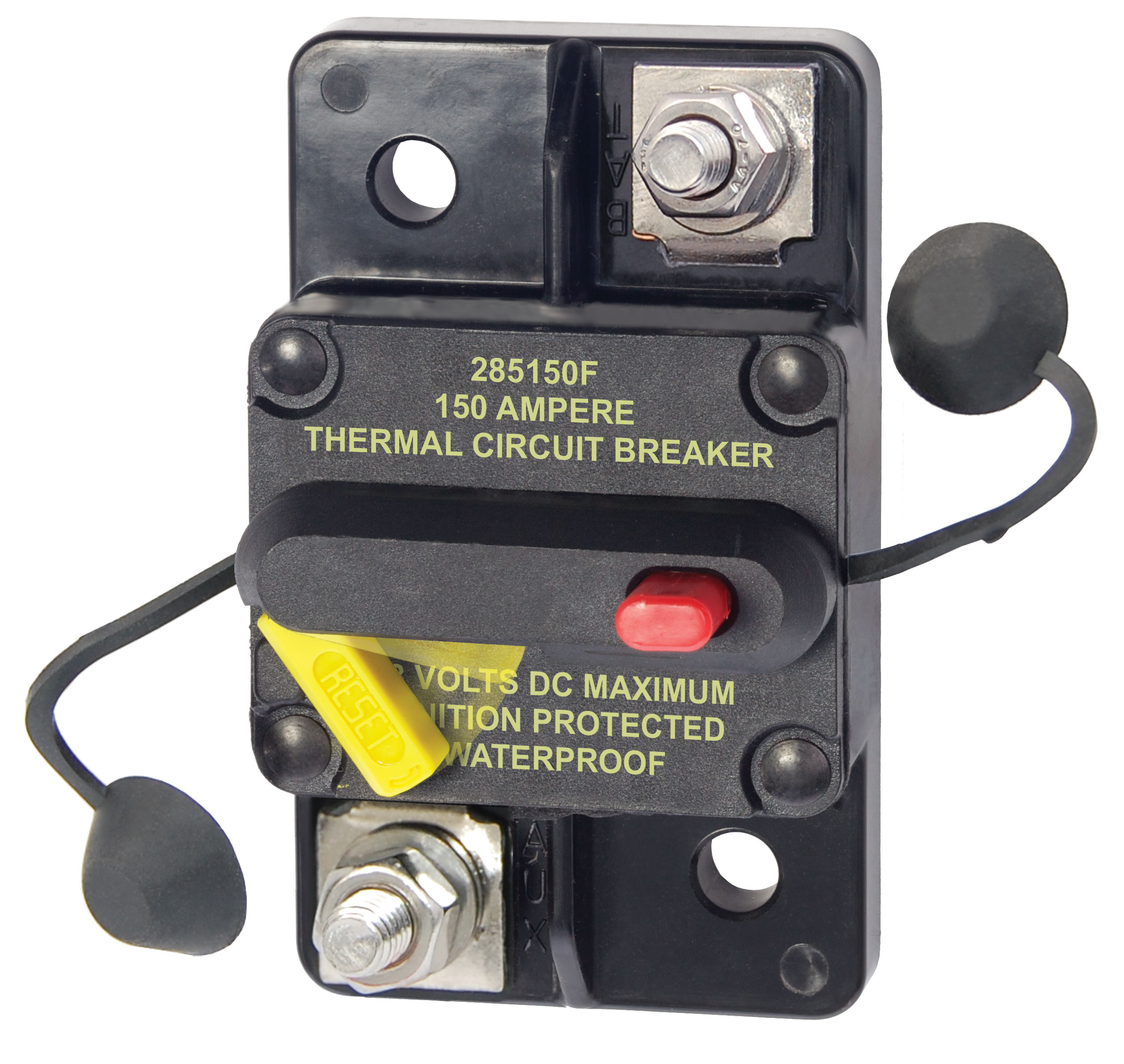

Blue Sea 285-Series 150 Amp Circuit Breaker Surface Mount

Blue Sea 285-Series 150 Amp Circuit Breaker Surface Mount

BSS7189
Blue Sea Systems

$79.99 $45.29

1 in stock
Qty :

Description

Blue Sea Systems 285-Series Circuit Breaker – Surface Mount 150A

Model: 7189-BSS

  • Drop in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected – Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit*
  • “Trip Free” – cannot be held closed after trip

* Do not use as a switch where high inrush currents are expected

Specifications

Amperage 150A
Maximum Voltage 48V DC
Mounting Surface Mount
Circuit Breaker Type Thermally responsive Bi-metal blade
Terminal Stud Torque 50 in-lb (5.65 Nm)
Interrupt Capacity 3000A @ 48V
Minimum Operating Temperature -40° C
Maximum Operating Temperature 85° C
Circuit Breaker Class Type III – switchable/manual reset – trip free
Terminal Stud M6 (accepts 1/4″ Ring Terminal)

Additional information

Weight 1.00 lbs
Model Number 7189-BSS
UPC 632085071899
