Description

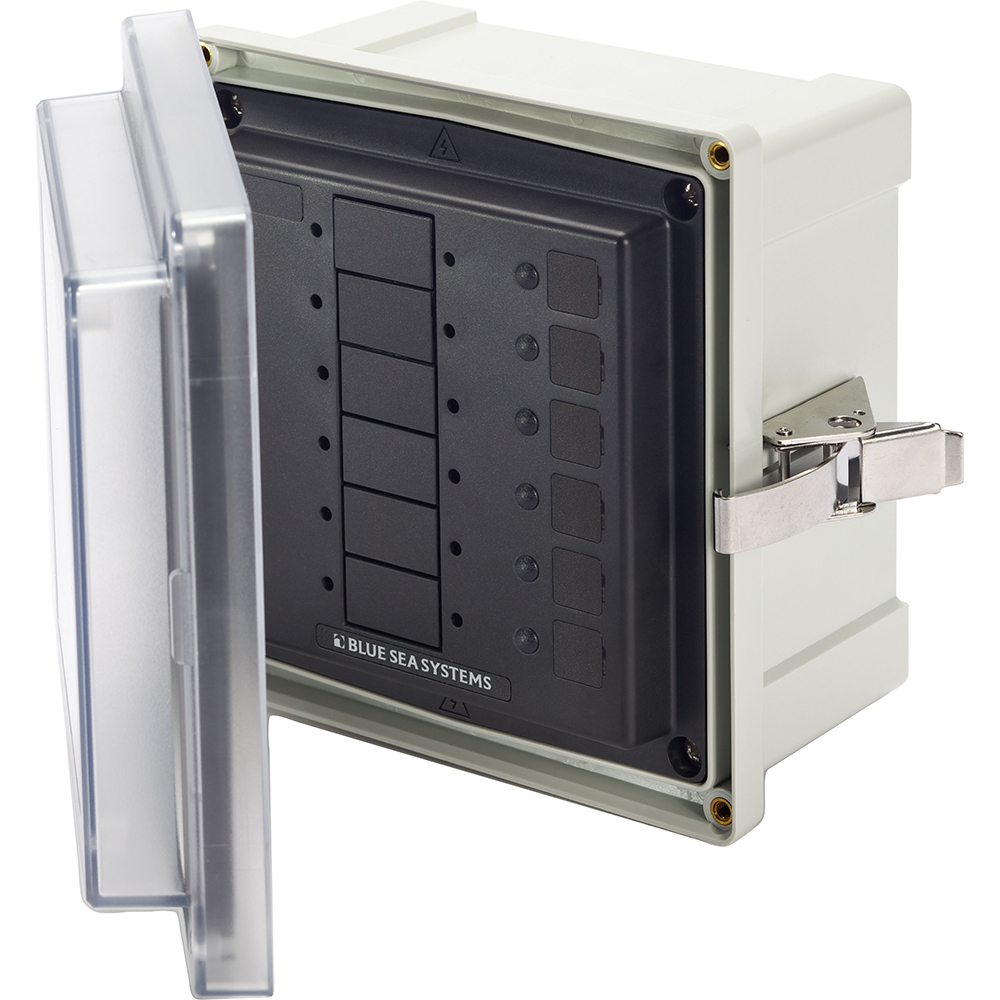

3113 – SMS Panel Enclosure with 6 Blank Circuits
The 3113 panel enclosure is built for main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10′ of AC shore power inlet.
Features:
- Blank apertures for custom breaker loading
- Glass filled polycarbonate mounting box
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers
Technical Specifications:
- Dimensions (Overall) (H x W x D) – 7.6″ x 7.4″” x 4.7″ (192 x 188 x 120mm)
- Dimensions (Enclosure) (H x W x D) – 6″ x 6″ x 4″ (152 x 152 x 102mm)
- LEDs Installed – 1 x Red (Reverse Polarity – 230V AC and 3 x Green ON (230V AC)
In the Box:
- 3123 Enclosure
- Mounting hardware
- Instruction manual
*Sold as an Individual
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Waterproof Rating = NONE | Voltage = NONE | AC/DC = NONE | Max Breaker Quantity = NONE | Waterproof = NONE
