Description

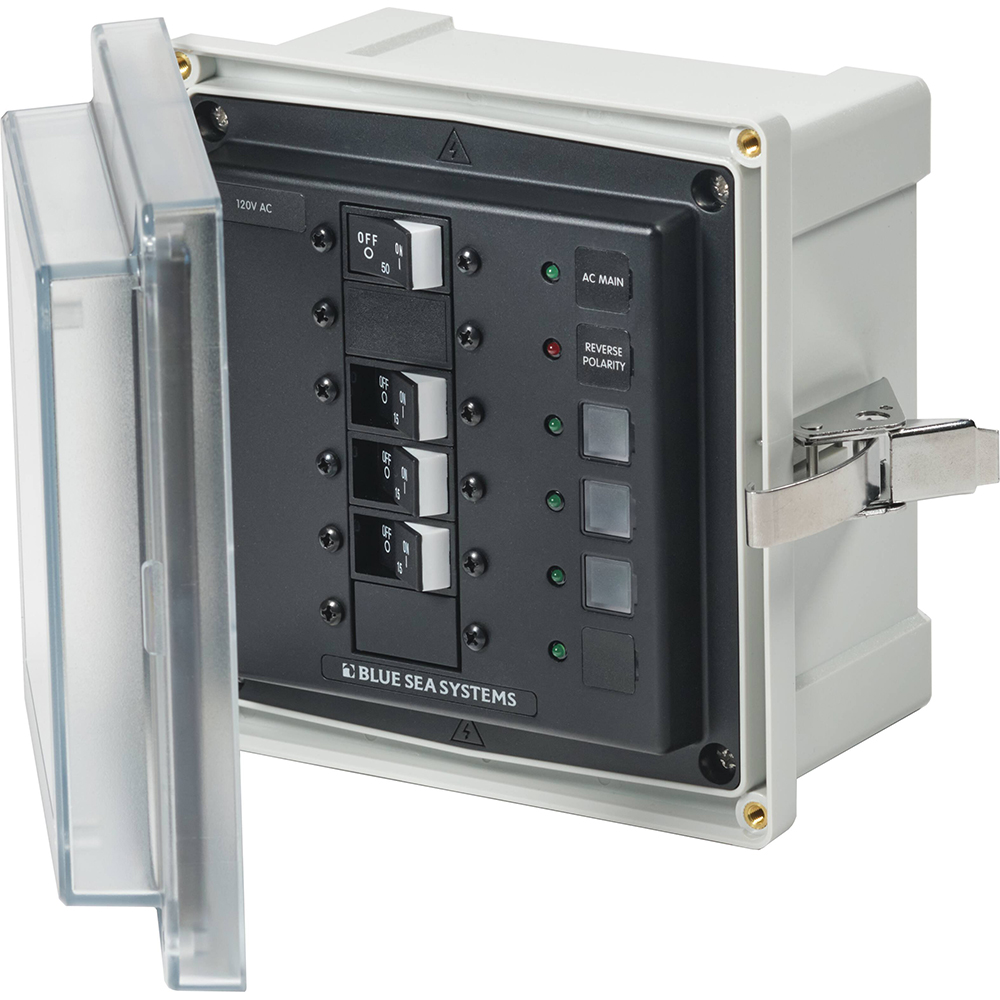

3130 – SMS Panel Enclosure with Main & 3 Branch (15A) – 120V AC
The 3130-panel enclosure is built with UL-489 Circuit Breakers to meet CFR 46 / Coast Guard requirements.
Features:
- Blank apertures for custom breaker loading
- Glass-filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
- Includes waterproof glands
- LED lights for backlighting and ON indication
Technical Specifications:
- Circuit Breaker Type – 1 x 120V Main and 3 x Branch (15A)
- Dimensions (Overall) (H x W x D) – 7.6″ x 7.4″” x 4.7″ (192 x 188 x 120mm)
- Dimensions (Enclosure) (H x W x D) – 6″ x 6″ x 4″ (152 x 152 x 102mm)
- LEDs Installed – 1 x Red (Reverse Polarity – 120V AC and 5 x Green ON (120V AC)
In the Box:
- 3130 Enclosure
- Glands x 6
- Labels
- Mounting hardware
- Instruction manual
*Sold as an Individual
