Blue Sea 3133 – SMS Panel Enclosure w/Main & 3 Branch (12/24V) – 12/24V DC

94739
Blue Sea Systems

$396.96 $263.50

0 in stock
Qty :

Description

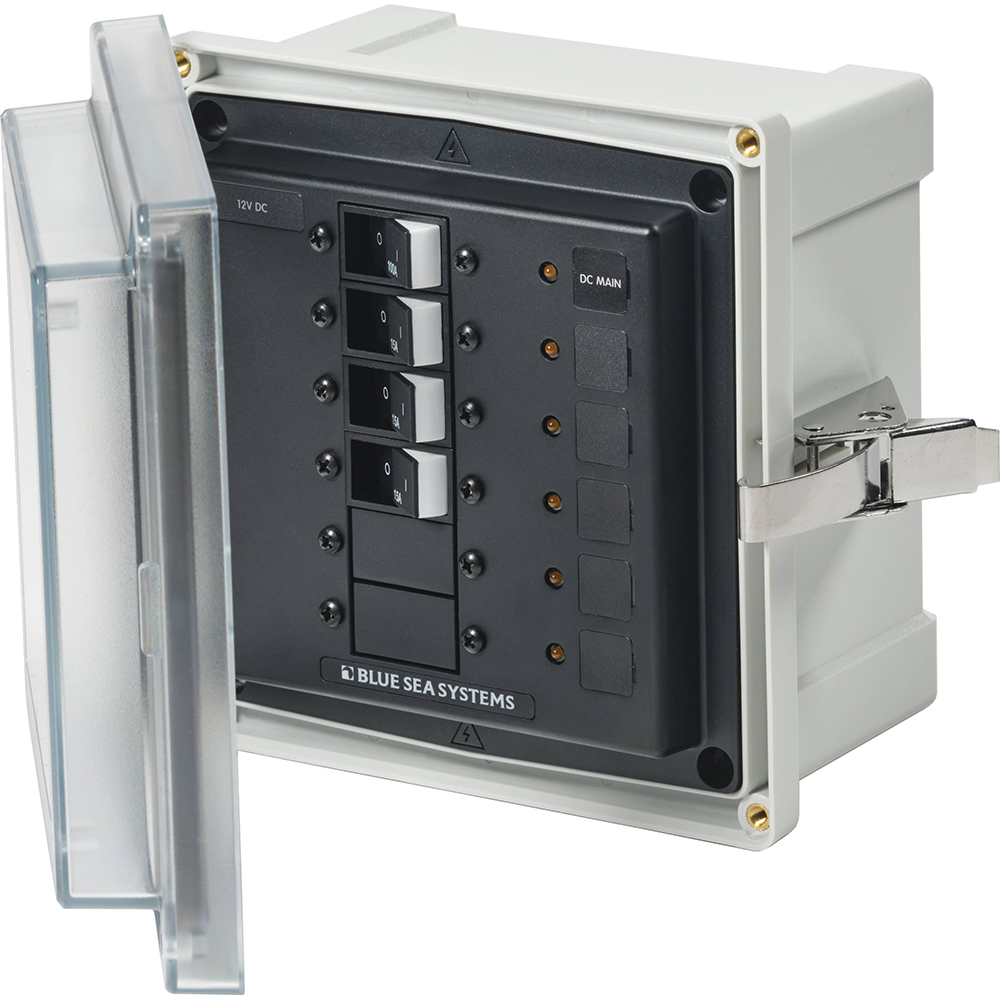

3133 – SMS Panel Enclosure with Main & 3 Branch (12/24V) – 12/24V DC

The 3133-panel enclosure for DC circuit breakers and other large frame devices.

Features:

  •  Blank apertures for custom breaker loading
  • Glass-filled polycarbonate base
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
  • Includes waterproof glands
  • LED lights for backlighting and ON indication

Technical Specifications:

  • Circuit Breaker Type – 1 x 12/24V DC Main and 3 x Branch 12/24V DC (15A)
    • Dimensions (Overall) (H x W x D) – 7.6″ x 7.4″” x 4.7″ (192 x 188 x 120mm)
    • Dimensions  (Enclosure) (H x W x D) – 6″ x 6″ x 4″ (152 x 152 x 102mm)
    • LEDs Installed – 6 x Amber ON indicating 12/24V DC

In the Box:

  • 3133 Enclosure
  • Glands x 6
  • Labels
  • Mounting hardware
  • Instruction manual

*Sold as an Individual

Quick Guide Litreture

Brochure Litreture

AC/DC = NONE | Max Breaker Quantity = NONE | Voltage = NONE | Waterproof Rating = NONE | Waterproof = NONE

Additional information

Model Number 3133
