Description

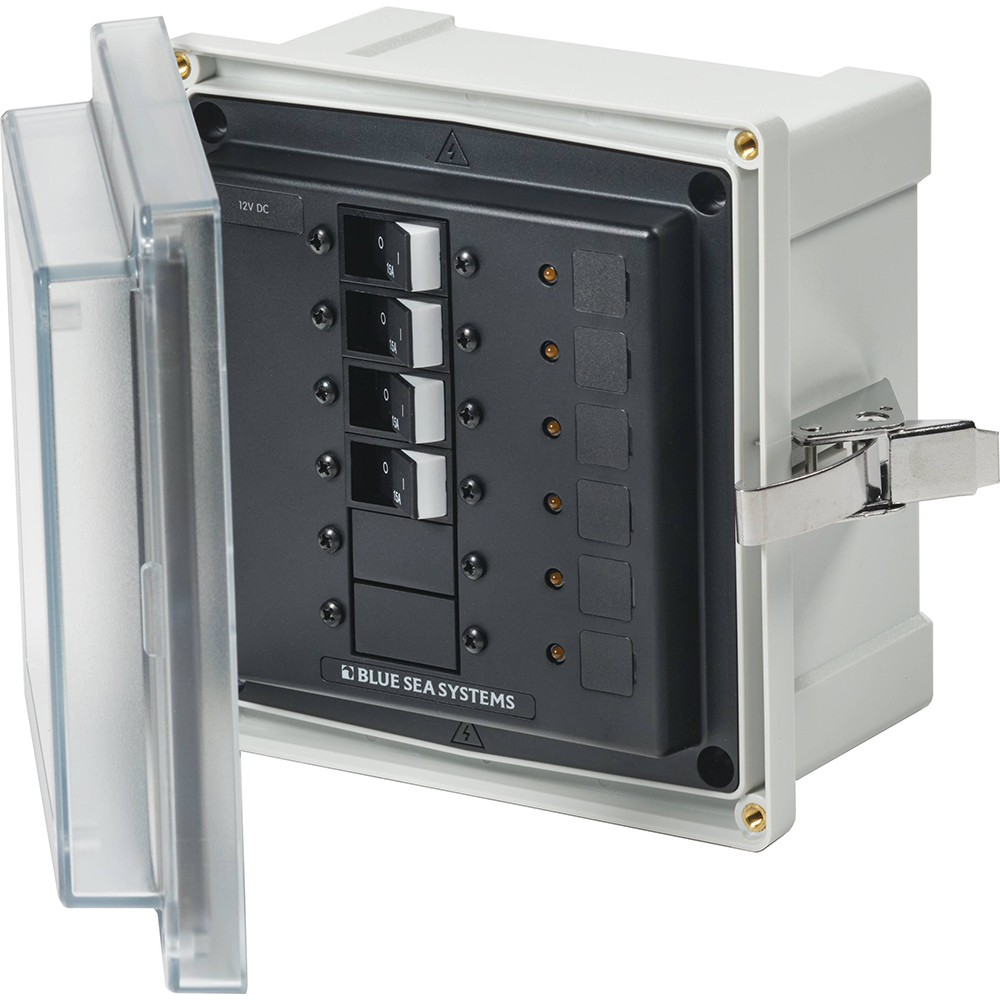

3134 – SMS Panel Enclosure with 4 Branch (12/24V) – 12/24V DC
The 3134-panel enclosure for DC circuit breakers and other large frame devices.
Features:
- Blank apertures for custom breaker loading
- Glass-filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
- Includes waterproof glands
- LED lights for backlighting and ON indication
Technical Specifications:
- Circuit Breaker Type – 4 x Branch 12/24V DC (15A)
- Dimensions (Overall) (H x W x D) – 7.6″ x 7.4″” x 4.7″ (192 x 188 x 120mm)
- Dimensions (Enclosure) (H x W x D) – 6″ x 6″ x 4″ (152 x 152 x 102mm)
- LEDs Installed – 6 x Amber ON indicating 12/24V DC
In the Box:
- 3134 Enclosure
- Glands x 6
- Labels
- Mounting hardware
- Instruction manual
*Sold as an Individual
Amperage = NONE
