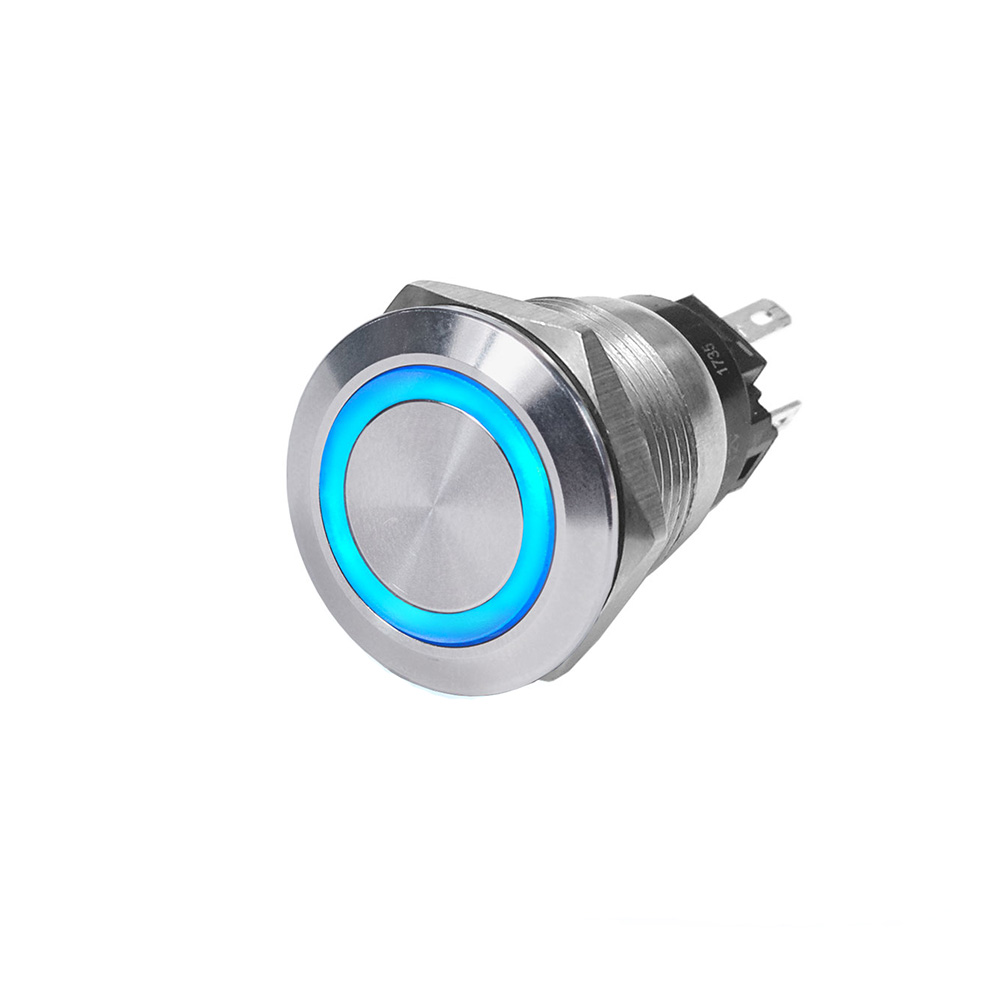

Blue Sea 4161 SS Push Button Switch – Off-(On) – Blue – 10A

70124
Blue Sea Systems

$27.06 $18.10

21 in stock
Qty :
,

Description

4161 SS Push Button Switch – Off-(On) – Blue – 10A

  • 10A continuous
  • Single Pole Double Throw or Single Pole Single Throw
  • Can be wired for normally open or normally closed
  • Installs with .110inch quick connects (included in retail package)

Specifications

  • Action: OFF-(ON)
  • Amperage: 10A @ 12V DC
  • Nominal Voltage: 12V DC
  • Maximum LED Operating Current: 20mA
  • Minimum Operating Temperature: -10° C
  • Maximum Operating Temperature: 70° C
  • Minimum Storage Temperature: -55° C
  • Maximum Storage Temperature: 85° C
  • Illumination: Independent – Separate contacts for LED power
  • Mounting Hole: 19mm
  • Switching Cycles: 18,000
  • Termination: 5 – 0.110inch Quick Connect terminals

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Throw/Pole = NONE | Color = Stainless | Action = (On)/Off

Additional information

Weight 0.1 lbs
Dimensions 5 × 3 × 2 in
Model Number 4161
UPC 632085041618
