Blue Sea 4181 Backlit Push Button Switch OFF/(ON) – 15A

68730
Blue Sea Systems

$67.79 $49.81

31 in stock
Qty :
,

Description

4181 Backlit Push Button Switch OFF/(ON) – 15A

Features:

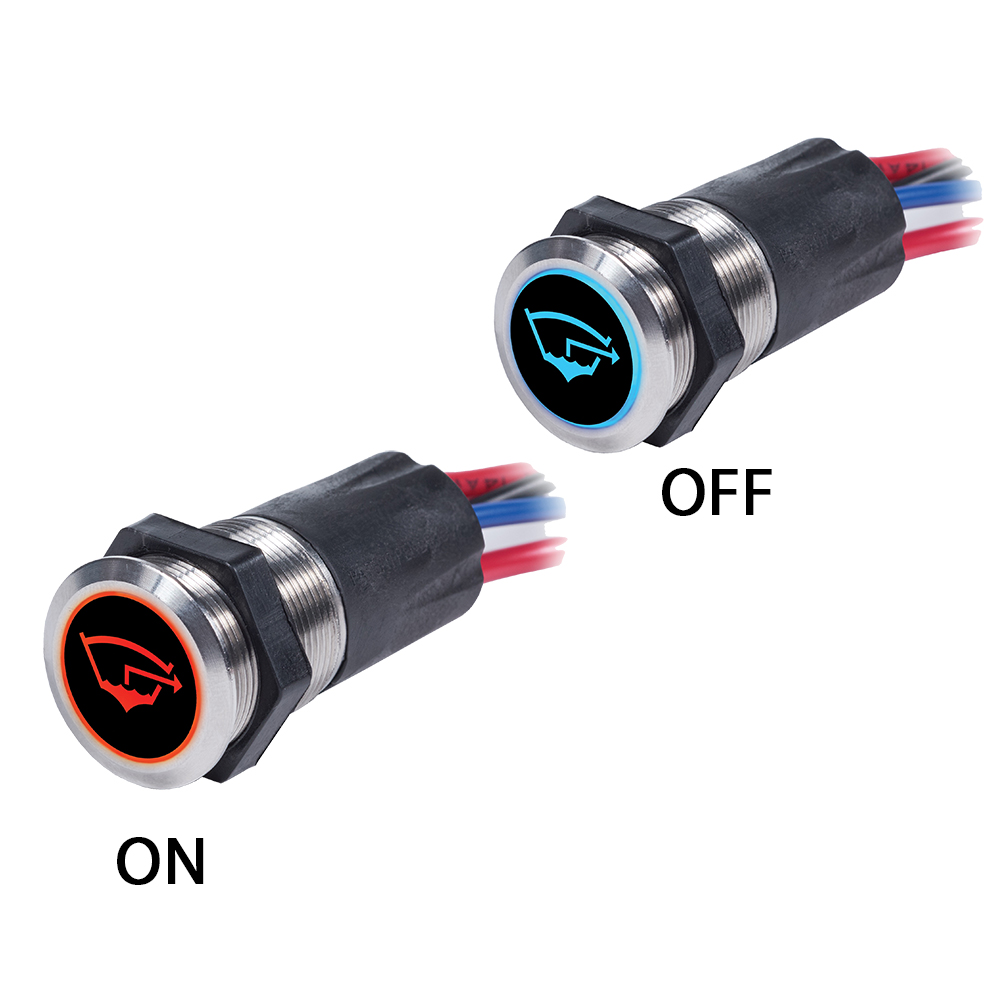

  • Backlit button is blue when OFF and red when ON
  • Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
  • Additional 50 ICON label kit sold separately

Specifications:

  • Action: OFF-(ON)
  • Amperage: 15A @ 12V DC
  • Nominal Voltage: 12V DC
  • Maximum Voltage: 15V DC
  • Maximum LED Operating Current: 20mA
  • Switching Cycles: 10,000
  • Temperature Range: -20°C to 55°C
  • Termination: 3″ – Bare Wire Pigtail
  • Wire Size: Black & Blue Wires 18 AWG / Red & Red/White Wires 14AWG

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Throw/Pole = NONE | Color = Stainless | Action = (On)/Off

Additional information

Weight 0.15 lbs
Dimensions 10 × 3 × 2 in
Model Number 4181
UPC 632085041816
