Description

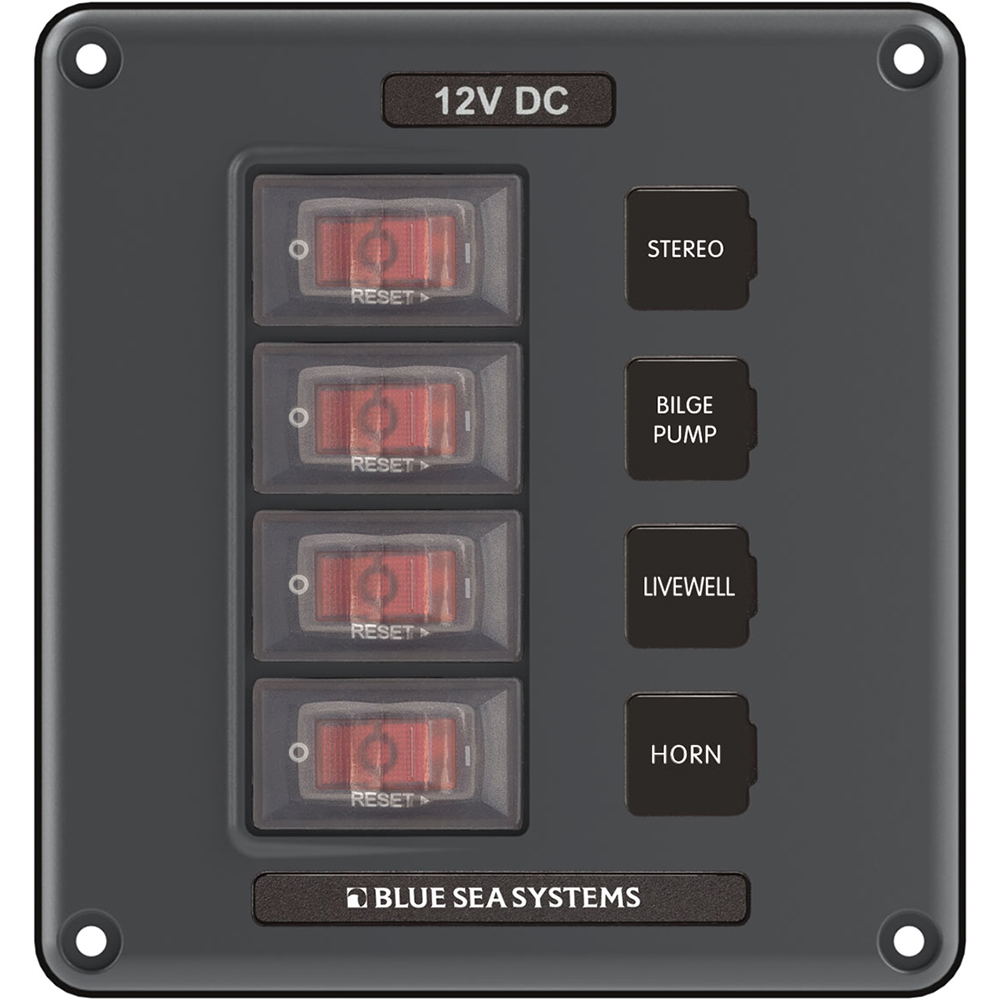

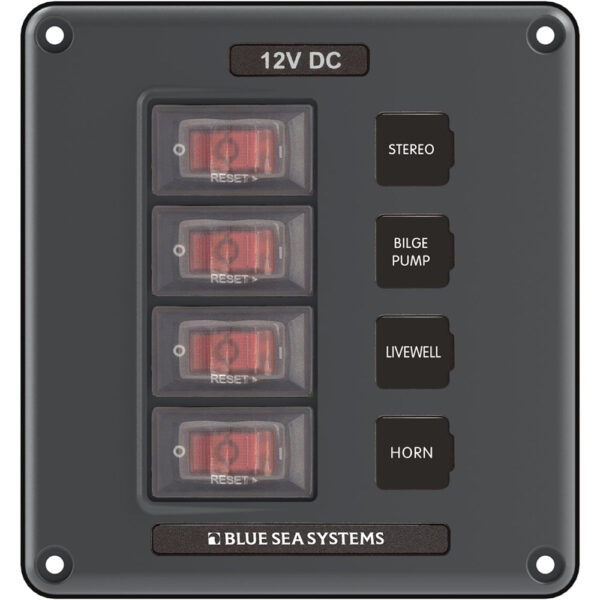

4320 Circuit Breaker Switch Panel 4 Position – Gray
Designed for exposed mounting applications.
Features:
- Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection
- Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application
- Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
- Silicon breaker boots and gasket protects against water ingress
- Low profle makes it easy to install in tight spaces
- Fast-on circuit breaker connectors make it quick to wire
- Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
- Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
Specifications:
- Color: Gray
- Positions: 4
- Nominal Voltage: 12 VDC
- Maximum Amperage: 45A
- Terminal Type: 1/4″ Male Quick Connect
- Hardware: Stainless Steel #6 x 5/8″ mounting screws
- Ring Terminal Size: M5 (#10)
Voltage = 12v | Waterproof Rating = NONE | AC/DC = DC | Max Breaker Quantity = 4 | Waterproof = Resistant
