Description

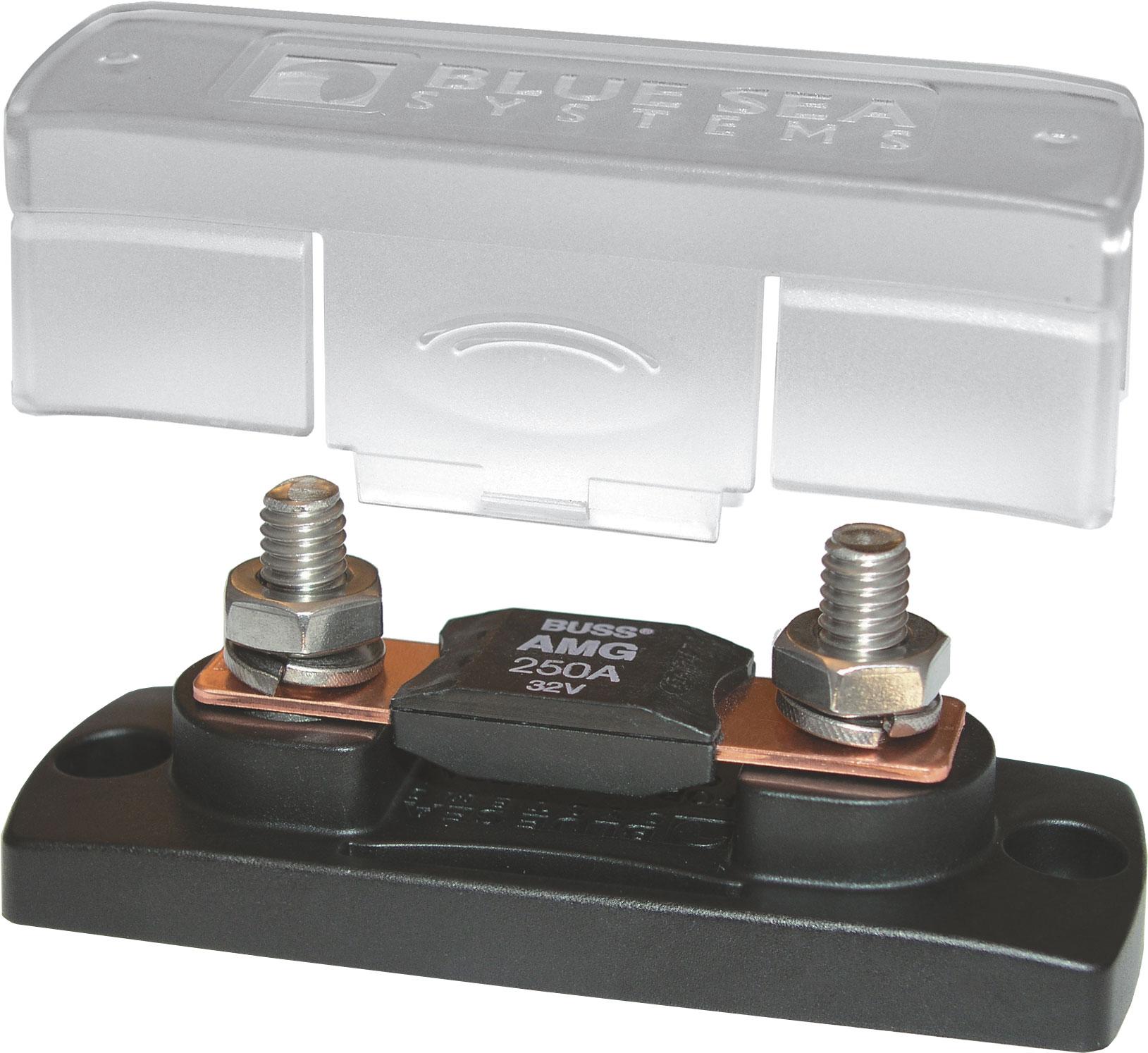

Blue Sea Systems MEGA® / AMG® Fuse Block – 100-300A with Cover
Model: 5001-BSS
- Accepts 5/16 in (M8) ring terminals
- Insulating cover satisfies ABYC/USCG insulation requirements
- Insulating cover breakouts allow wire access in three directions
- Insert molded studs ensure secure fuse mounting
- Stainless steel studs provide resistance to corrosion and high torque for excellent electrical contact
- UL 94-V0 base resists high heat
- Fuse sold separately
Specifications
| Maximum Voltage | 32V DC |
| Stud Size | 5/16 in |
| Base Material | Reinforced PBT |
| Cover Material | Polycarbonate |
| Maximum Terminal Torque | 110 in-lb (12.43 Nm) |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Weight | 0.35 lb (0.16 kg) |
